Product Details:
|
| Receiving Surface: | 10 × 10 Mm | Package: | Ceramic |
|---|---|---|---|
| Refrigeration: | Uncooled Type | Reverse Voltage (Max.): | 5V |
| Highlight: | Infrared Sensitivity Silicon Photodiodes,Visible Wavelengths Silicon Photodiodes |
||
Product Description:

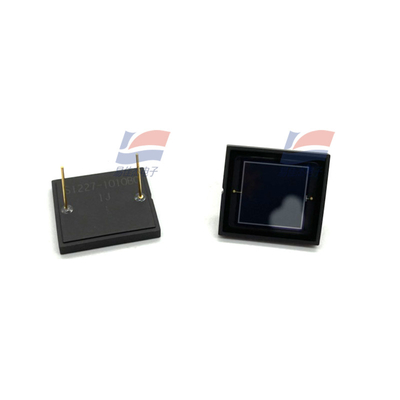

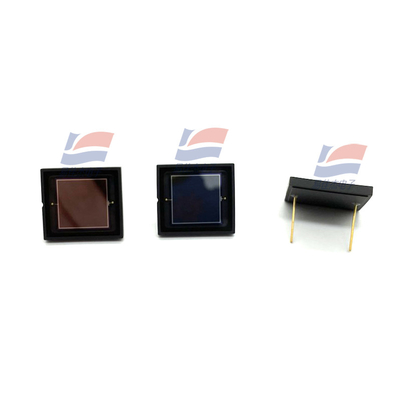

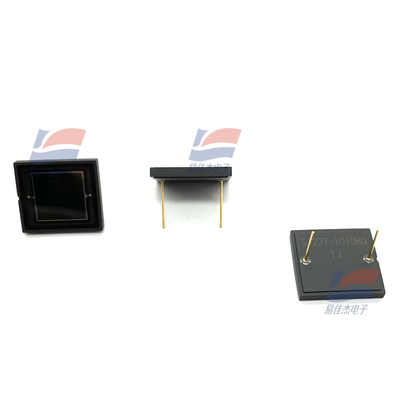

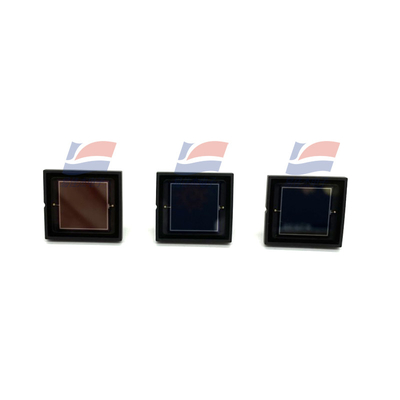

S1227-1010BR Resin Potting Window Type Is Suitable For Precision Photometry In The Ultraviolet To Visible Wavelengths And Suppression Of Infrared Sensitivity Silicon Photodiodes
Features:
Detailed parameter
Receiving surface 10 × 10 mm
Encapsulated ceramics
Package category --
Refrigeration uncooled type
Reverse voltage (Max.) 5 V
Spectral response range 340 to 1000 nm
Maximum sensitivity wavelength (typical value) 720 nm
Photosensitivity (typical value) 0.36A /W
Dark current (Max.) 50 pA
Rise time (typical value) 7 μs
Junction capacitance (typical value) 3000 pF
Noise equivalent power (typical value) 8.0×10-15 W/Hz1/2
Typical values of measurement conditions Ta=25°C, photosensitivity: λ = 720 nm, dark current: VR = 10 mV, junction capacitance: VR = 0 V, f = 10 kHz, unless otherwise stated
Specifications:
| Spectral response range | 340 to 1100 nm |
| Maximum sensitivity wavelength (typical value) | 960 nm |
| Photosensitivity (typical value) | 0.5A /W |
| Dark current (Max.) | 20 pA |
