YJJ S1227-16BR Resin potting Silicon Photodiodes Are Suitable For Precise Photometry In The Ultraviolet To Visible Range

I'm Online Chat Now

YJJ S1227-16BR Resin potting Silicon Photodiodes Are Suitable For Precise Photometry In The Ultraviolet To Visible Range

YJJ S1227-16BR Resin potting Silicon Photodiodes Are Suitable For Precise Photometry In The Ultraviolet To Visible Range
YJJ S1227-16BR Resin potting Silicon Photodiodes Are Suitable For Precise Photometry In The Ultraviolet To Visible Range

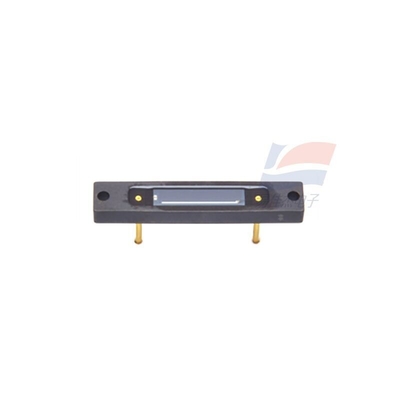

Large Image :  YJJ S1227-16BR Resin potting Silicon Photodiodes Are Suitable For Precise Photometry In The Ultraviolet To Visible Range

Product Details:
Place of Origin: Japan
Brand Name: HAMAMATSU
Model Number: S1227-16BR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: piping
Delivery Time: 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2200

YJJ S1227-16BR Resin potting Silicon Photodiodes Are Suitable For Precise Photometry In The Ultraviolet To Visible Range

Description
Reverse Voltage (Max.): 5 V Dark Current (Max.): 5 PA
Rise Time (typical Value): 0.5μs Junction Capacitance (typical): 170 PF
Highlight:

Visible Range Silicon Photodiodes

,

Precise Photometry Silicon Photodiodes

Product Description:

S1227-16BR Resin potting Silicon Photodiodes Are Suitable For Precise Photometry In The Ultraviolet To Visible Range



Features:

Receiving surface 5.9 × 1.1mm

Encapsulated ceramics

Package category --

Refrigeration uncooled type

Reverse voltage (Max.) 5 V

Spectral response range 340 to 1000 nm

Maximum sensitivity wavelength (typical value) 720 nm

Photosensitivity (typical value) 0.36A /W

Dark current (Max.) 5 pA

Rise time (typical value) 0.5μs

Junction capacitance (typical) 170 pF

Noise equivalent power (typical value) 2.5×10-15 W/Hz1/2

Typical values of measurement conditions Ta=25°C, photosensitivity: λ = 720 nm, dark current: VR = 10 mV, junction capacitance: VR = 0 V, f = 10 kHz, unless otherwise stated



Specifications:

Spectral response range 340 to 1000 nm
Maximum sensitivity wavelength (typical value) 720 nm
Photosensitivity (typical value) 0.36A /W
Dark current (Max.) 5 pA



YJJ S1227-16BR Resin potting Silicon Photodiodes Are Suitable For Precise Photometry In The Ultraviolet To Visible Range 0
