Product Details:
|
| Receiving Surface: | 5.8 × 5.8 Mm | Reverse Voltage (Max.): | 5V |
|---|---|---|---|
| Refrigeration: | Uncooled Type | Photosensitivity (typical Value): | 0.36A /W |
| Highlight: | Quartz Window Silicon Photodiode |
||
Product Description:

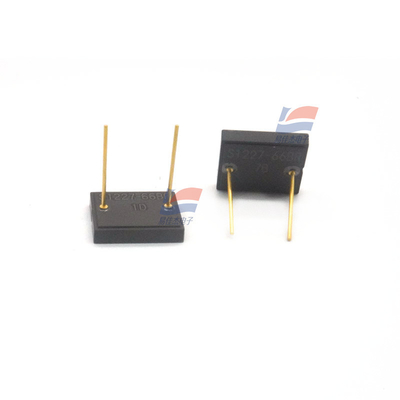

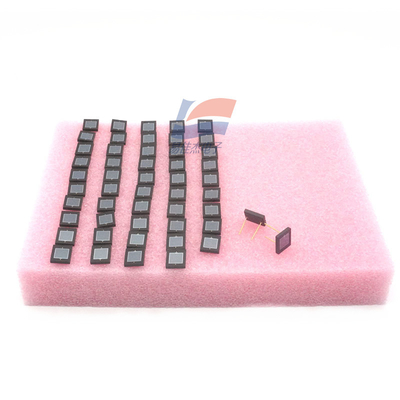

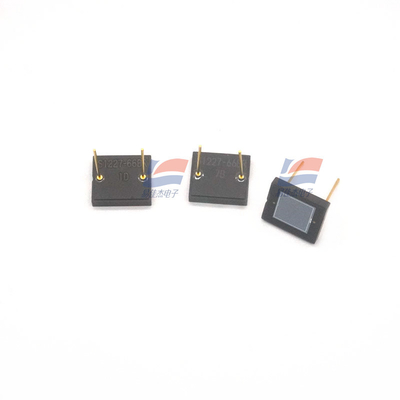

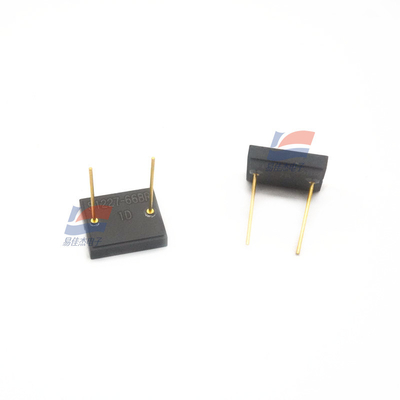

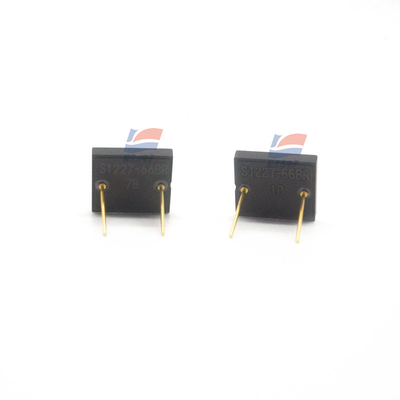

S1227-66BQ Silicon Photodiode Quartz Window Type Is Suitable For Precision Photometry In The Ultraviolet To Visible Wavelengths
Features:
Receiving surface 5.8 × 5.8 mm
Encapsulated ceramics
Package category --
Refrigeration uncooled type
Reverse voltage (Max.) 5 V
Spectral response range 190 to 1000 nm
Maximum sensitivity wavelength (typical value) 720 nm
Photosensitivity (typical value) 0.36A /W
Dark current (Max.) 20 pA
Rise time (typical value) 2 μs
Junction capacitance (typical) 950 pF
Noise equivalent power (typical value) 5.0×10-15 W/Hz1/2
Typical values of measurement conditions Ta=25°C, photosensitivity: λ = 720 nm, dark current: VR = 10 mV, junction capacitance: VR = 0 V, f = 10 kHz, unless otherwise stated
Specifications:
| Spectral response range | 190 to 1000 nm |
| Maximum sensitivity wavelength (typical value) | 720 nm |
| Photosensitivity (typical value) | 0.36A /W |
| Dark current (Max.) | 5 pA |
