Product Details:
|
| Receiving Surface: | 18 × 18 Mm | Reverse Voltage (Max.): | 5 V |
|---|---|---|---|
| Sensitivity (typical Value): | 0.52 A/W | Dark Current (Max.): | 500 PA |
| Highlight: | UV Silicon Photodiode,IR Silicon Photodiode,Precision Photometry Silicon Photodiode |
||
Product Description:

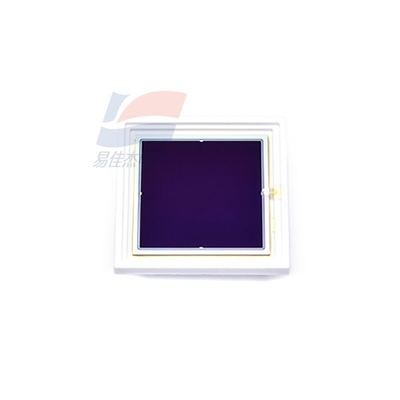

S1337-21 Silicon Photodiode Is Suitable For Precision Photometry In Ultraviolet To Infrared Bands
Features:
Receiving surface 18 × 18 mm
Encapsulated ceramics
Package category is not sealed
Package category is not sealed
Refrigeration uncooled type
Reverse voltage (Max.) 5 V
Spectral response range 190 to 1100 nm
Maximum sensitivity wavelength (typical value) 960 nm
Sensitivity (typical value) 0.52 A/W
Dark current (Max.) 500 pA
Rise time (typical value) 8 μs
Junction capacitance (typical) 4000 pF
Noise equivalent power (typical value) 2.5×10-14 W/Hz1/2
Typical values of measurement conditions Ta=25°C, photosensitivity: λ = 960 nm, dark current: VR = 10 mV, junction capacitance: VR = 0 V, f = 10 kHz, unless otherwise stated
Specifications:
| Spectral response range | 190 to 1100 nm |
| Maximum sensitivity wavelength (typical value) | 960 nm |
| Photosensitivity (typical value) | 0.52A /W |
| Dark current (Max.) | 500 pA |
