Product Details:
|
| Receiving Surface: | 3.6 × 3.6 Mm | Package Category: | TO-5 |
|---|---|---|---|
| Reverse Voltage (Max.): | 5V | Photosensitivity (typical Value): | 0.36A /W |
| Highlight: | Visible Light Silicon Photodiode |
||
Product Description:

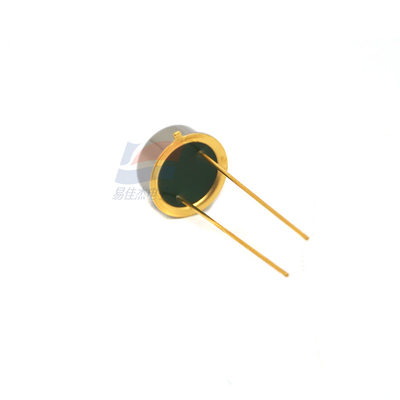

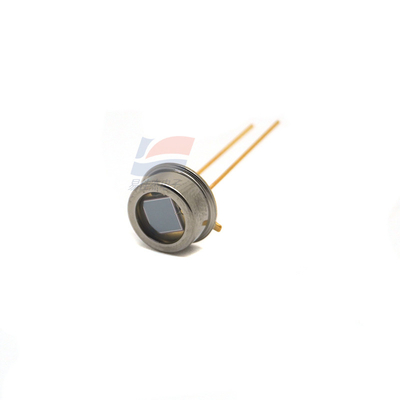

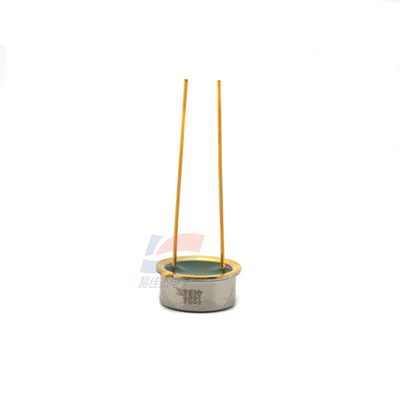

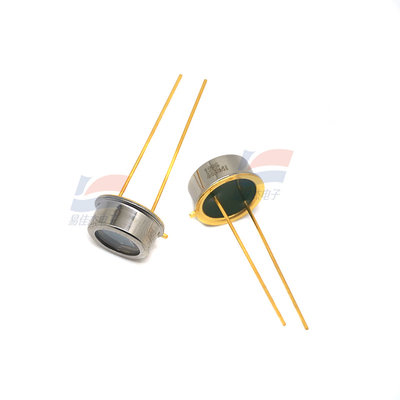

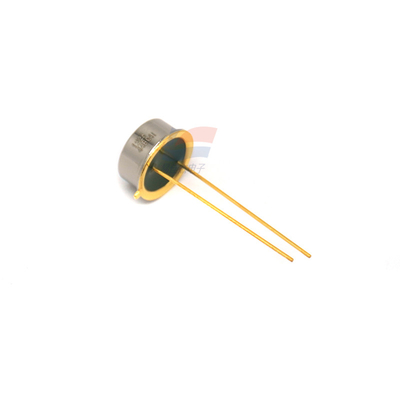

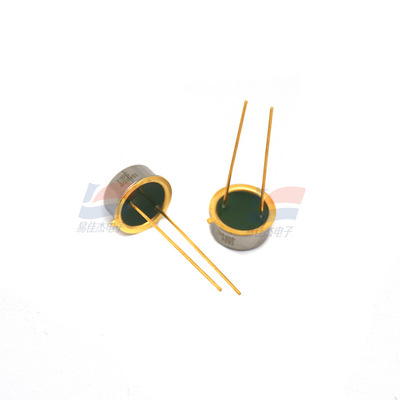

S1226-44BK Silicon Photodiode Is Suitable For Precision Photometry From Ultraviolet To Visible Light
Features:
Receiving surface 3.6 × 3.6 mm
Encapsulation metal
Package category TO-5
Refrigeration uncooled type
Reverse voltage (Max.) 5 V
Spectral response range 320 to 1000 nm
Maximum sensitivity wavelength (typical value) 720 nm
Photosensitivity (typical value) 0.36A /W
Dark current (Max.) 10 pA
Rise time (typical value) 1 μs
Junction capacitance (typical value) 500 pF
Noise equivalent power (typical value) 3.6×10-15 W/Hz1/2
Measurement conditions Ta = 25°C, typical value, sensitivity: λ = 720 nm, dark current: VR = 10 mV, junction capacitance: VR = 0 V, f = 10 kHz, unless otherwise stated
Specifications:
| Spectral response range | 320 to 1000 nm |
| Maximum sensitivity wavelength (typical value) | 720 nm |
| Photosensitivity (typical value) | 0.36A /W |
| Dark current (Max.) | 500 pA |
