Product Details:
|
| Receiving Surface: | 1.1 × 1.1 Mm | Package Category: | TO-18 |
|---|---|---|---|
| Refrigeration: | Uncooled Type | Reverse Voltage (Max.): | 5V |
| Highlight: | Ultraviolet Silicon Photodiode,Visible Light Silicon Photodiode,Precision Photometry Silicon Photodiode |
||
Product Description:

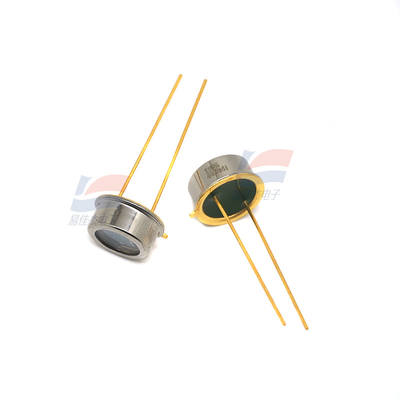

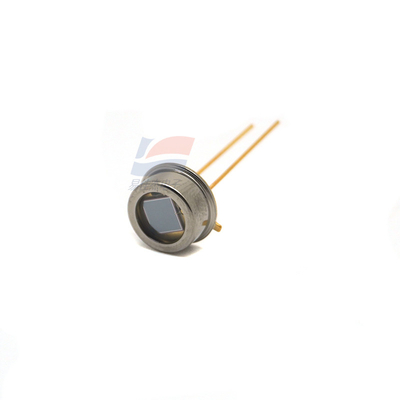

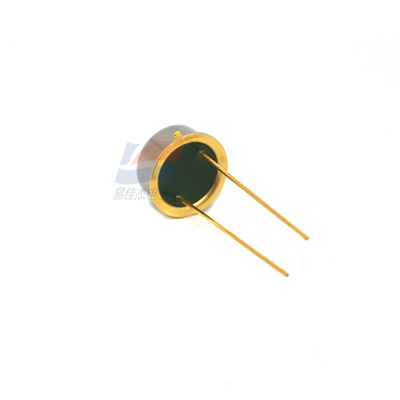

S1226-18BK Silicon Photodiode Is Suitable For Precision Photometry From Ultraviolet To Visible Light
Features:
Suitable for precision photometry in ultraviolet to visible wavelengths; Suppress near infrared sensitivity
peculiarity
- High UV sensitivity: QE = 75% (λ = 200 nm)
- Suppress near infrared sensitivity
- Low dark current
- High reliability
Receiving surface 1.1 × 1.1 mm
Encapsulation metal
Package category TO-18
Refrigeration uncooled type
Reverse voltage (Max.) 5 V
Spectral response range 320 to 1000 nm
Maximum sensitivity wavelength (typical value) 720 nm
Photosensitivity (typical value) 0.36A /W
Dark current (Max.) 2 pA
Rise time (typical value) 0.15 μs
Junction capacitance (typical) 35 pF
Noise equivalent power (typical value) 1.6×10-15 W/Hz1/2
Measurement conditions Ta = 25°C, typical value, sensitivity: λ = 720 nm, dark current: VR = 10 mV, junction capacitance: VR = 0 V, f = 10 kHz, unless otherwise stated
Specifications:
| Spectral response range | 320 to 1000 nm |
| Maximum sensitivity wavelength | 720 nm |
| Photosensitivity (typical value) | 0.36A /W |
| Dark current (Max.) | 2 pA |
