YJJ S1226-8BQ High Reliability Low Dark Current Silicon Photodiode Is Suitable For Precision Photometry From Ultraviolet To Visible Light

I'm Online Chat Now

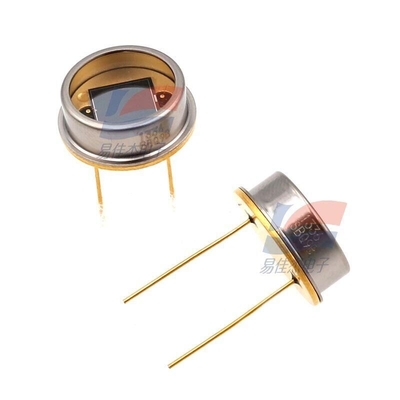

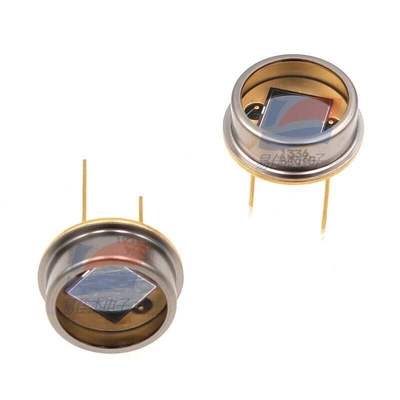

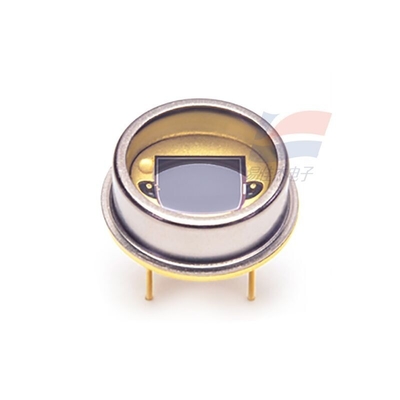

YJJ S1226-8BQ High Reliability Low Dark Current Silicon Photodiode Is Suitable For Precision Photometry From Ultraviolet To Visible Light

YJJ S1226-8BQ High Reliability Low Dark Current Silicon Photodiode Is Suitable For Precision Photometry From Ultraviolet To Visible Light
YJJ S1226-8BQ High Reliability Low Dark Current Silicon Photodiode Is Suitable For Precision Photometry From Ultraviolet To Visible Light YJJ S1226-8BQ High Reliability Low Dark Current Silicon Photodiode Is Suitable For Precision Photometry From Ultraviolet To Visible Light YJJ S1226-8BQ High Reliability Low Dark Current Silicon Photodiode Is Suitable For Precision Photometry From Ultraviolet To Visible Light

Large Image :  YJJ S1226-8BQ High Reliability Low Dark Current Silicon Photodiode Is Suitable For Precision Photometry From Ultraviolet To Visible Light

Product Details:
Place of Origin: Japan
Brand Name: HAMAMATSU
Model Number: S1226-8BQ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: piping
Delivery Time: 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2200

YJJ S1226-8BQ High Reliability Low Dark Current Silicon Photodiode Is Suitable For Precision Photometry From Ultraviolet To Visible Light

Description
Receiving Surface: 5.8 × 5.8 Mm Package Category: TO-8
Reverse Voltage (Max.): 5V Dark Current (Max.): 20 PA
Highlight:

Low Dark Current Silicon Photodiode

Product Description:

S1226-8BQHigh Reliability Low Dark Current Silicon Photodiode Is Suitable For Precision Photometry From Ultraviolet To Visible Light



Features:

Suitable for precision photometry in ultraviolet to visible wavelengths; Suppress near infrared sensitivity

peculiarity

- High UV sensitivity: QE = 75% (λ = 200 nm)

- Suppress near infrared sensitivity

- Low dark current

- High reliability

Receiving surface 5.8 × 5.8 mm
Encapsulation metal
Package category TO-8
Refrigeration uncooled type
Reverse voltage (Max.) 5 V
Spectral response range 190 to 1000 nm
Maximum sensitivity wavelength (typical value) 720 nm
Photosensitivity (typical value) 0.36A /W
Dark current (Max.) 20 pA
Rise time (typical value) 2 μs
Junction capacitance (typical) 1200 pF



Specifications:

Spectral response range 190 to 1000 nm
Maximum sensitivity wavelength 720 nm
Photosensitivity (typical value) 0.36A /W
Dark current (Max.) 20 pA



YJJ S1226-8BQ High Reliability Low Dark Current Silicon Photodiode Is Suitable For Precision Photometry From Ultraviolet To Visible Light 0
