Product Details:
|
| Dark Current (Max.): | 0.5 NA | Cut-off Frequency (typical Value): | 600 MHz |
|---|---|---|---|
| Junction Capacitance (typical): | 5 PF | Number Of Pixels: | 1 |
| Highlight: | φ0.3mm InGaAs PIN Photodiode,YJJ InGaAs PIN Photodiode |
||
Product Description:

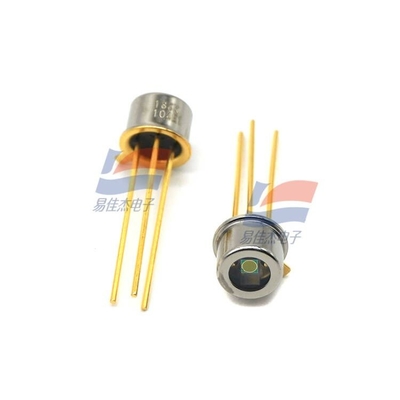

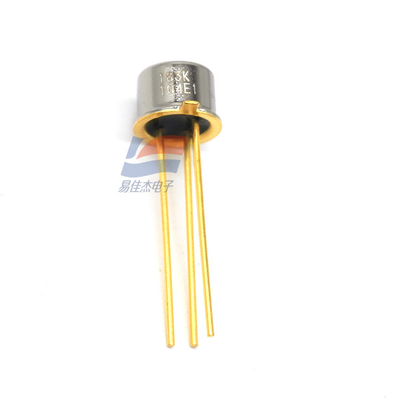

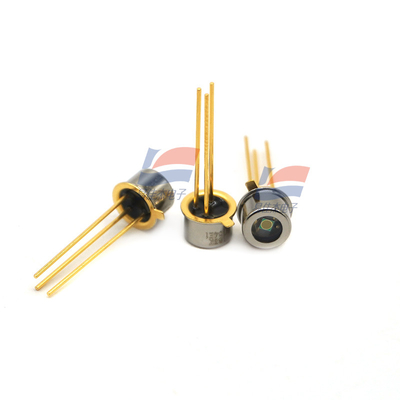

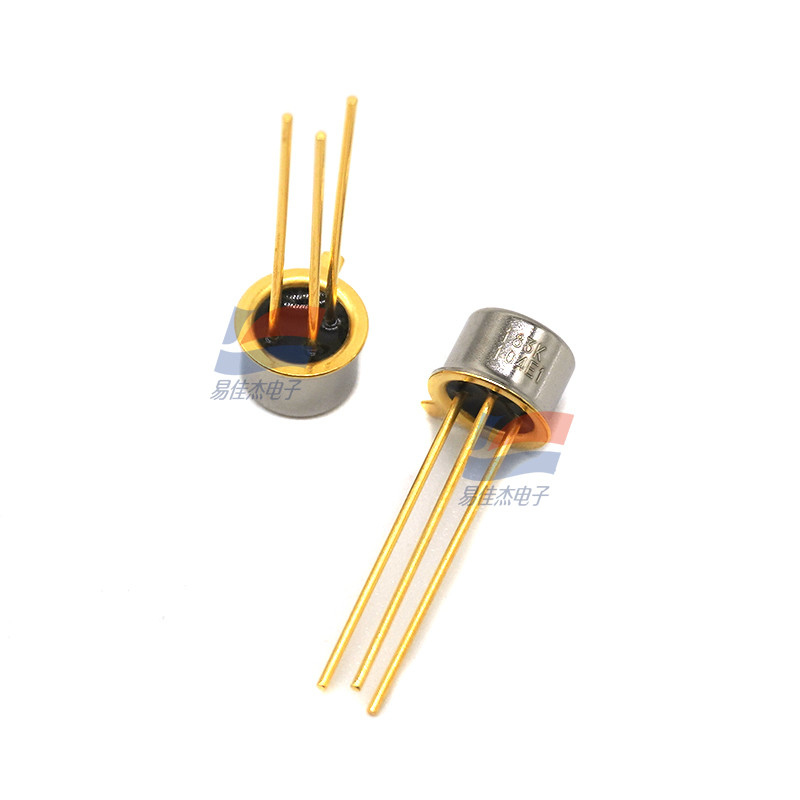

G12180-003A InGaAs PIN Photodiode Receiving Surface: φ0.3mm
Features:
Receiving surface: φ0.3mm
peculiarity
- Low noise, low dark current
- Low junction capacitance
- Receiving surface: φ0.3mm
- Low noise
Receiving surface φ0.3mm
Number of pixels 1
Encapsulation metal
Package category TO-18
Heat dissipation uncooled type
Sensitivity wavelength range 0.9 to 1.7 μm
Maximum sensitivity wavelength (typical value) 1.55 μm
Photosensitivity (typical value) 1.1 A/W
Dark current (Max.) 0.5 nA
Cut-off frequency (typical value) 600 MHz
Junction capacitance (typical) 5 pF
Noise equivalent power (typical value) 4.2×10-15 W/Hz1/2
Typical value of measurement conditions Tc = 25°C, unless otherwise stated, sensitivity: λ = λp, dark current: VR = 5V, cutoff frequency: VR = 5V, RL = 50Ω, -3 dB, junction capacitance: VR = 5V, f = 1MHz
Specifications:
| Package category | TO18 |
| Sensitivity wavelength range | 0.9 to 1.7 μm |
| Maximum sensitivity wavelength (typical value) | 1.55 μm |
| Photosensitivity (typical value) | 1.1 A/W |
