Product Details:
|
| Receiving Surface: | φ0.5mm | Number Of Pixels: | 1 |
|---|---|---|---|
| Package: | Metal | Dark Current (Max.): | 0.75 NA |
| Highlight: | φ0.5mm InGaAs PIN Photodiode |
||
Product Description:

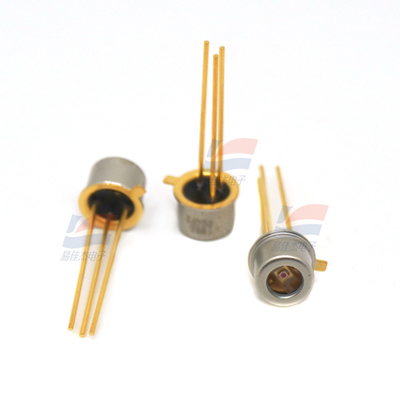

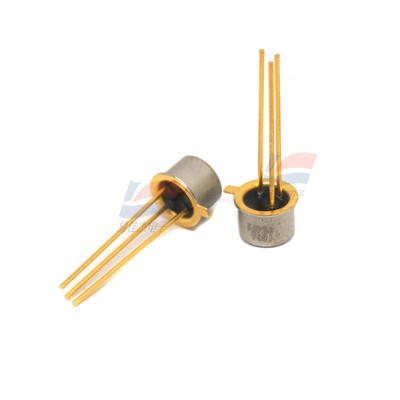

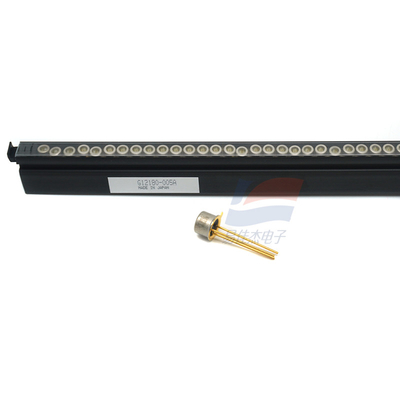

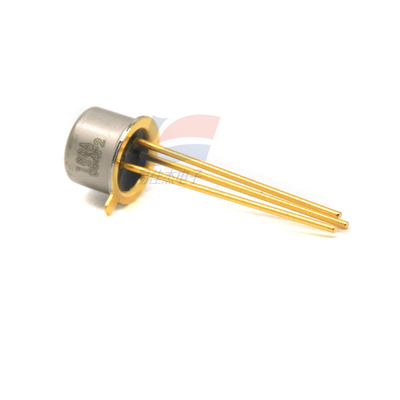

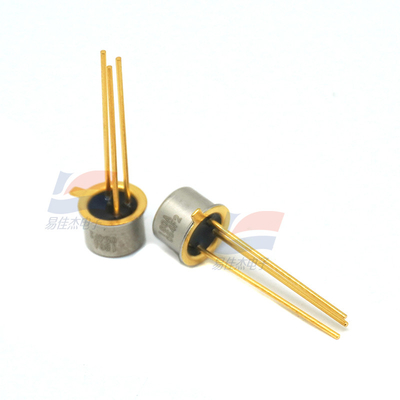

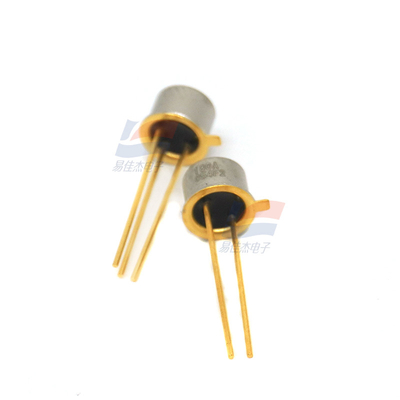

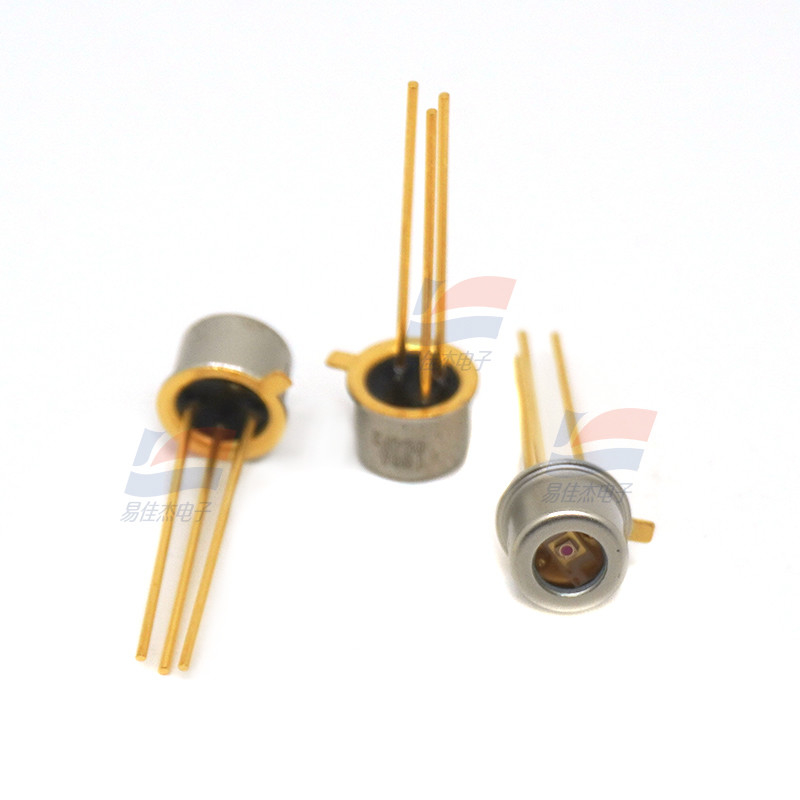

G12180-005A InGaAs PIN Photodiode Receiving Surface: φ0.5mm
Features:
Receiving surface φ0.5mm
Number of pixels 1
Encapsulation metal
Package category TO-18
Heat dissipation uncooled type
Sensitivity wavelength range 0.9 to 1.7 μm
Maximum sensitivity wavelength (typical value) 1.55 μm
Photosensitivity (typical value) 1.1 A/W
Dark current (Max.) 0.75 nA
Cut-off frequency (typical value) 200 MHz
Junction capacitance (typical) 15 pF
Noise equivalent power (typical value) 7.0×10-15 W/Hz1/2
Typical value of measurement conditions Tc = 25°C, unless otherwise stated, sensitivity: λ = λp, dark current: VR = 5V, cutoff frequency: VR = 5V, RL = 50Ω, -3dB, junction capacitance: VR = 5V, f = 1MHz
Specifications:
| Package category | TO18 |
| Sensitivity wavelength range | 0.9 to 1.7 μm |
| Maximum sensitivity wavelength (typical value) | 1.55 μm |
| Photosensitivity (typical value) | 1.1 A/W |
