Product Details:
|
| Precision: | 0.5%FSS | Zero Drift: | 250-150 UV |
|---|---|---|---|
| Compensating Temperature: | 0℃ To 50℃ | Operating Temperature: | -20℃ To 85℃ |
| Highlight: | YJJ Pressure Sensor,250pa Pressure Sensor,1 INCH Pressure Sensor |
||
Product Description:

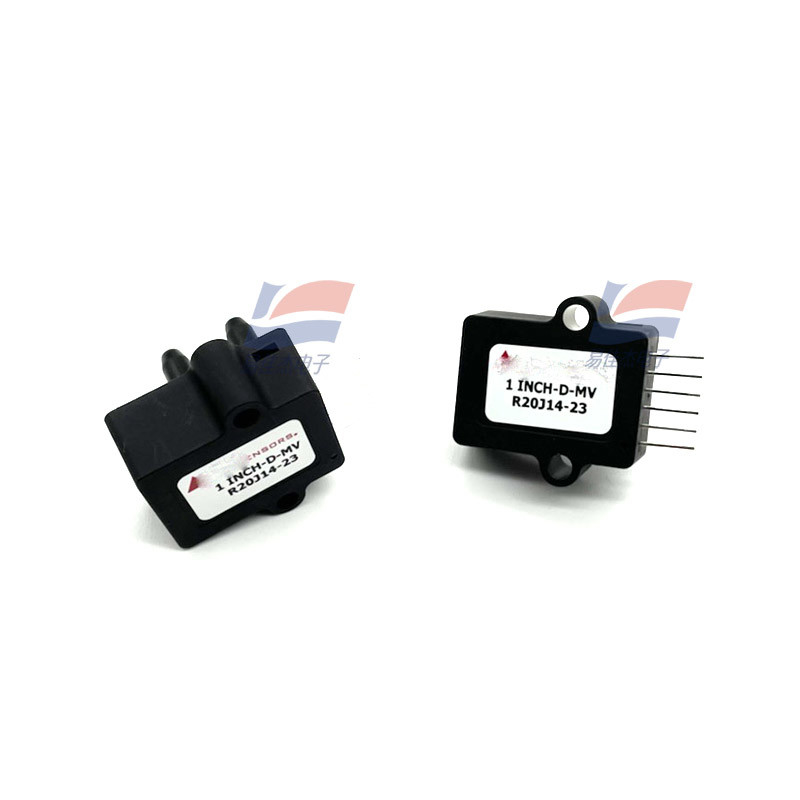

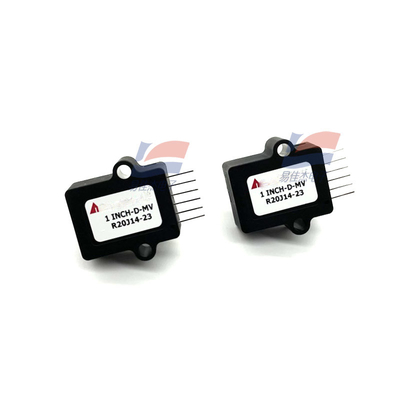

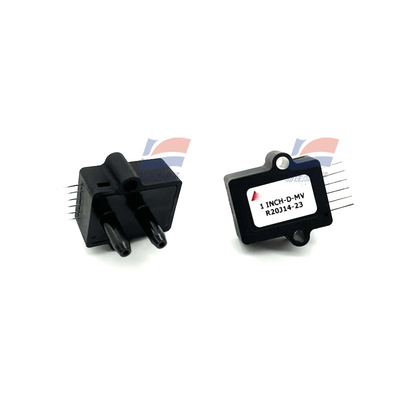

1 INCH D-MV Pressure Control System 250pa Pressure Sensor
Features:
millivolt output pressure sensor uses proprietary dual-chip technology to effectively reduce output offset or common-mode error and output a corrected millivolt signal with superior output offset characteristics. Compared with the traditional compensation method, the sensor can improve the output deviation error caused by ambient temperature change, heat engine stability, long-term use and position sensitivity. The sensor adopts silicon technology, MEMS technology and enhanced stress concentration structure, and the output signal of measured pressure is very linear.
This type of calibrated and temperature-compensated sensor provides the most stable output over a wide temperature range. This series of sensors can be used for pressure measurement in non-corrosive, non-ionic fluid media such as air, dry gases and other similar environments.
The output signal of the sensor is proportional to the operating voltage, and the power supply is a DC voltage not higher than +16V.
Specifications:
| encapsulation | Type A |
| Pressure type | Gauge pressure, differential pressure |
| Pressure range | 0.5 ~ 30" H2O |
| Output type | mV |
