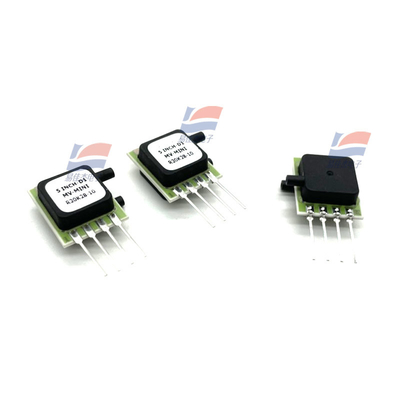

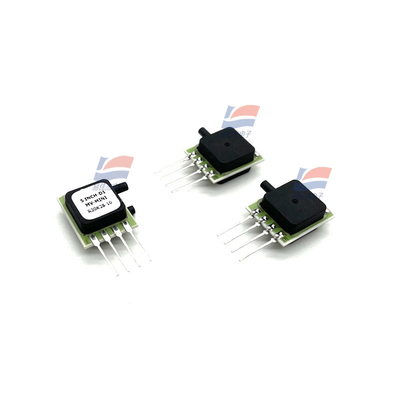

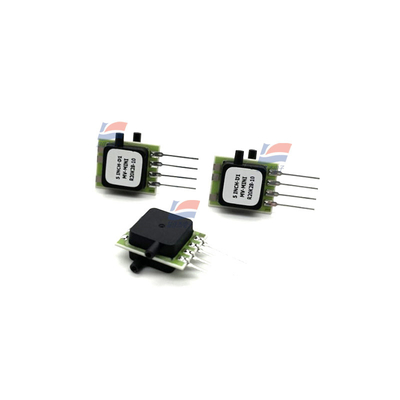

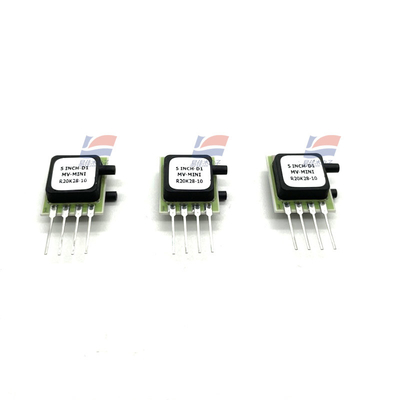

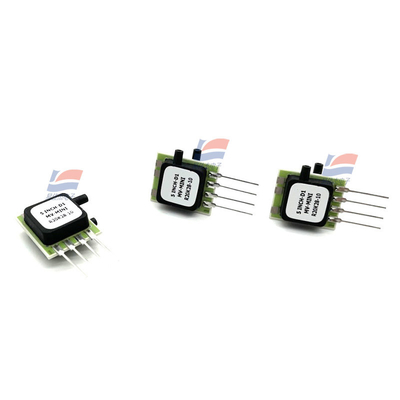

YJJ 5 INCH-D1 MV-MINI Non-invasive Ventilator CPAC1.25Kpa Sensor

Product Description:

5 INCH-D1 MV-MINI Non-invasive Ventilator CPAC1.25Kpa Sensor

Features:

Millivolt output pressure sensors are based on proprietary technology to reduce all output offset or common-mode errors. The model provides a calibrated millivolt output with superior output offset characteristics. Compared with traditional compensation, the output deviation error, preheating stability, long time stability and position sensitivity due to temperature change are reduced. In addition, the sensor employs a silicon, micromechanical, stress-focused enhanced structure to provide a very linear output for measuring pressure. These calibrated and temperature-compensated sensors provide a stable output over a wide temperature range. This series is suitable for non-corrosive, non-ionic working fluids, such as air, dry gas, etc. The output of the device is proportional to the supply voltage, and any operation with a DC supply voltage up to +16 V is acceptable.

Pressure type: Differential pressure

Working pressure: 0 in H2O to 5 in H2O

Accuracy: 0.25%

Output type: Analog

Installation style: Through Hole

Interface type: -

Working power supply voltage: 16 V

Port type: Dual Radial Barbless

Resolution: -

Package/box: Miniature

Minimum operating temperature: -25 C

Maximum operating temperature: + 85 C

Port size: 0.08 in

Unit weight: 29.828g
