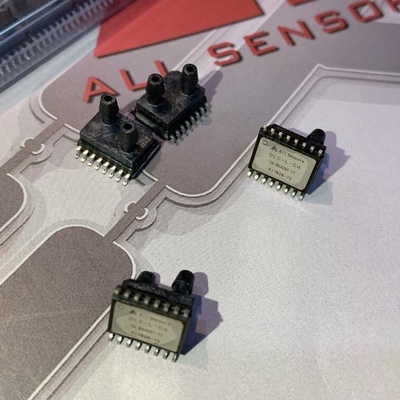

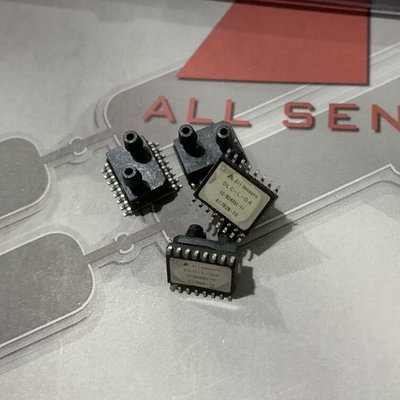

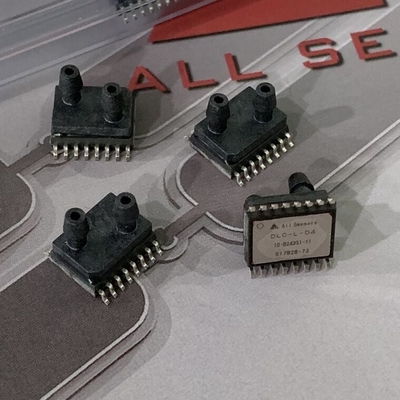

YJJ DLC-L05D-D4 High Withstand Pressure I2C Digital 1.24Kpa Pressure Sensor

Product Description:

DLC-L05D-D4 High Withstand Pressure I2C Digital 1.24Kpa Pressure Sensor

Features:

DLC series performs well in the ultra-low (1 to 60 inH2O) pressure range. This new high-performance pressure sensor uses All Sensors' proprietary CoBeam2 "¢technology. Higher pressure ranges from 5psi to 150 psi are also available. Design engineers provide optimal space savings for a variety of compact applications. The DLC series compact packages with sizes as small as 7mm2 and their high cost performance make them the perfect solution for high-volume, low-cost applications.

For battery-operated systems, the sensor can select the lowest power consumption mode when reading to minimize the power load. Low-voltage power supply allows sensors to be integrated into a wide range of process control and measurement systems and directly connected to I2C serial communication with 16-bit digital resolution.

This calibrated and compensated sensor provides accurate and stable output over a temperature range of -20°C to 85°C. The range is suitable for non-corrosive, non-ionic working fluids such as air and dry gases. The products can be used for differential and gauge pressure measurement from 1 to 60 inH2O, differential and gauge pressure measurement from 5 to 150 PSI, and absolute pressure measurement from 15 to 150 PSI.

1. 1 to 60 inH2O differential and gauge pressure, 5 to 150 PSI differential and gauge pressure, 15 to 150 PSI absolute pressure total error 1.5%, depending on the pressure range

2. Compact package, PCB board mount, SMT and DIP pins

3. Various pressure interfaces are available

4. Compensation temperature range -20 ℃~85℃

5. Internal over-sampling up to 16 readings

Electrical characteristics

1. 16-bit digital resolution

2. I2C port

3. 1.8 to 3.6 volts

4. Less than 100 nA (typical reactive current)

Apply

Medical respiratory, environmental control, HVAC, industrial control, portable/handheld devices and all low-voltage applications.

Pressure sensor rating

The supply voltage is 3.63V DC

Common mode pressure 10psi/ sq. inch

Lead temperature (welding 2-4 seconds) 270°C

Environmental specification

Compensation operation -

Business 0 to 70°C

Industrial -20 to 85°C

Operating -25 to 85°C

Storage -40 to 125°C

Humidity limit 0 to 95% relative humidity (non-condensing)
