Product Details:
|
| Accuracy: | 0.25% | Output Type: | Analog |
|---|---|---|---|
| Installation Style: | Through Hole | Working Power Supply Voltage: | 5V |
| Highlight: | ±5psi Pressure Sensor |
||
Product Description:

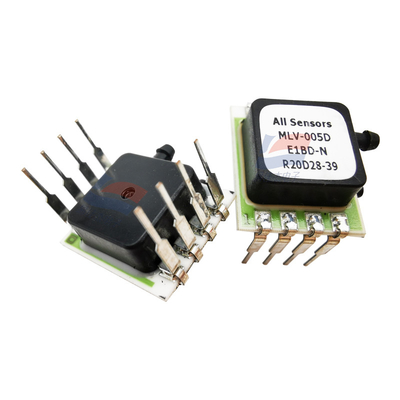

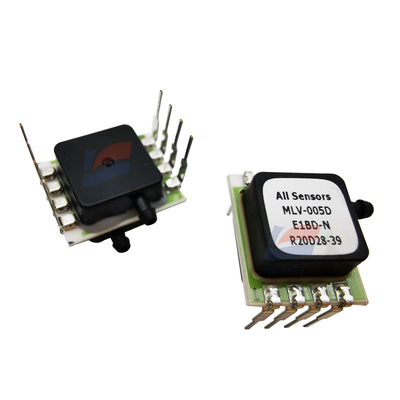

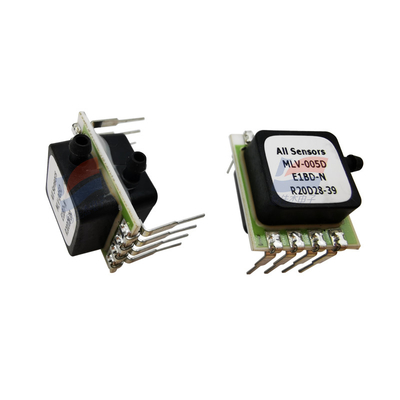

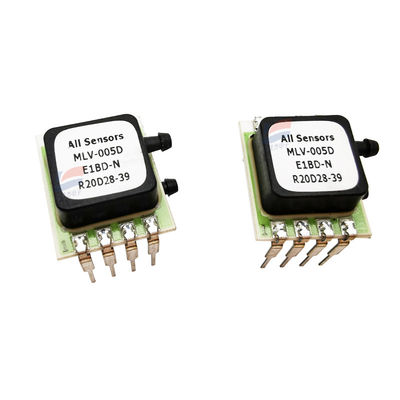

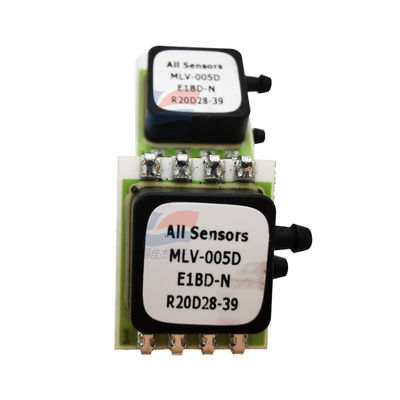

MLV-005D-E1BD-N Low Operating Temperature Drift Differential Pressure ±5psi Pressure Sensor
Features:
MLV Series Compensated Sensor is based on All Sensors’ CoBeam2 TM Technology. The device provides a high output signal at a low operating voltage while maintaining comparable output levels to traditional equivalent compensated millivolt sensors operating at higher voltages. This lower supply voltage gives rise to improved warm-up shift while the CoBeam2 TM Technology itself reduces package stress susceptibility resulting in improved overall long term stability. The technology also vastly improves position sensitivity compared to conventional single die devices.These calibrated and compensated sensors give an accurate and stable output over a wide temperature range. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like. A protective parylene coating is optionally available for moisture/harsh media protection. The output is also ratiometric to the supply voltage and designed to operate at 5.0 volts DC.
Product category: Board interface pressure sensor
RoHS: Details
Type of pressure: Differential
Working pressure: 5 in H2O
Accuracy: 0.25%
Output type: Analog
Installation style: Through Hole
Interface type: -
Working power supply voltage: 5 V
Port type: Dual Radial Barbless
Resolution: -
Minimum operating temperature: -25 C
Operating temperature: + 85 C
Series: MLV
Trademark: All Sensors
Port size: 0.08 in
Product type: Pressure Sensors
10
Specifications:
| Working pressur | 5 in H2O |
| Pressure type | Dual Radial Barbless |
| Pressure range | 0 in H2O to 5 in H2O |
| Industrial | -20 to 85°C |
