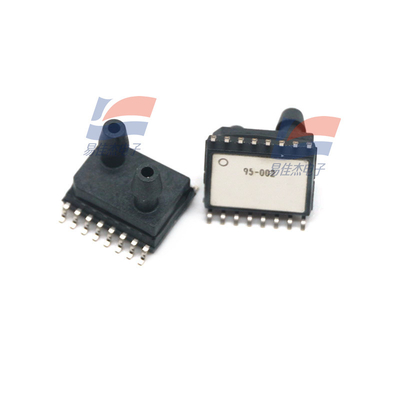

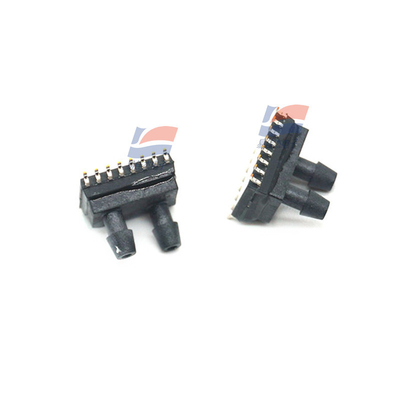

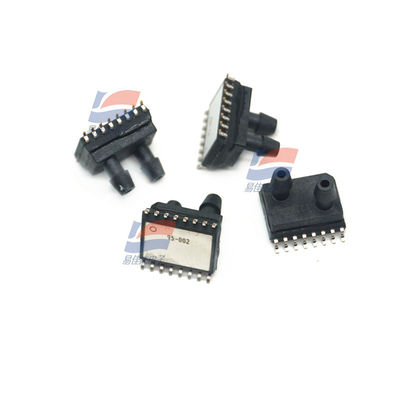

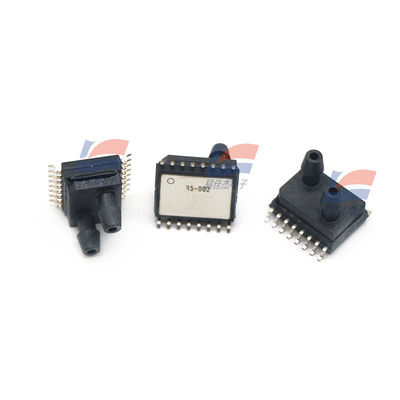

YJJ SM9541-010C-S-C-3S Board Interface Pressure Sensor Digital Compound Gauge Sensor 10cmH2O

Product Description:

SM9541-010C-S-C-3S Board Interface Pressure Sensor Digital Compound Gauge Sensor 10cmH2O

Features:

SM9541-010C-S-C-3-S is mainly used in environmental monitoring equipment to monitor air flow and pressure changes (i.e. differential pressure applications, 2pcs/sets). It is a MEMS technology based ceramic substrate mount high stability piezoresistive differential pressure/gauge pressure sensor chip with an accuracy of ±1%. It is equipped with an I2C-friendly digital interface to read the data and set the baud rate of 4MHZ, and the I2C pressure output values from 1638 to 14745, 14-bit resolution, with extremely high accuracy and stability. This series of products provides comprehensive zero point calibration and temperature compensation (zero point temperature compensation and sensitivity temperature compensation) by using thin film resistors on ceramic substrates. It adopts SO-16 silicon chip package and 3-3.6V constant voltage source drive. The micro pressure ranges are 250pxH2O, 500pxH2O, 1000pxH2O, 2500pxH2O. A wide temperature compensation range of -5℃ to 65℃.

Manufacturer: TE Connectivity

Product category: Board interface pressure sensor

RoHS:

Type of pressure: Compound

Working pressure: -0.5cm H2O to 10cm H2O

Accuracy: 1%

Output type: Digital

Installation style: SMD/SMT

Interface type: I2C

Working power supply voltage: 3 V

Port type: Dual Radial Barbed

Resolution: 14 bit

Package/box: SOIC-16

Minimum operating temperature: -5 C

Maximum operating temperature: + 65 C

Series: SM9541

Package: Tube

Trademark: TE Connectivity/SMI

Humidity sensitivity: Yes

Working power supply current: 1 mA

Port size: 3 mm

Product type: Board Mount Pressure Sensors

45

Subcategory: Sensors

Power supply voltage - Max: 3.6V

Supply voltage - Min: 3 V

Part number Alias: 9541-010C-S-C-3-S 9541-010C-S-C-3-S

Unit weight: 608 mg
