Product Details:
|
| Product Category: | Board Mount Pressure Sensors | Pressure Type: | Compound |
|---|---|---|---|
| Operating Pressure: | -0.5 CmH2O To 10 CmH2O | Accuracy: | 1% |
| Output Type: | Digital | ||
| Highlight: | SM9541-010C-S-C-3-S Board Mount Pressure Sensor,SOP Board Mount Pressure Sensor |
||

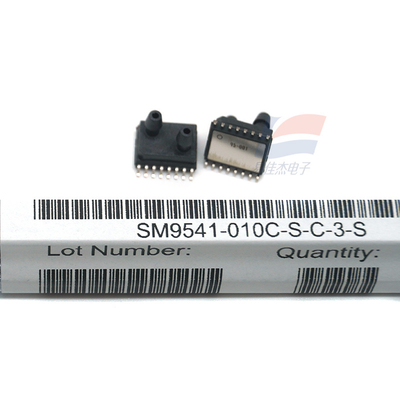

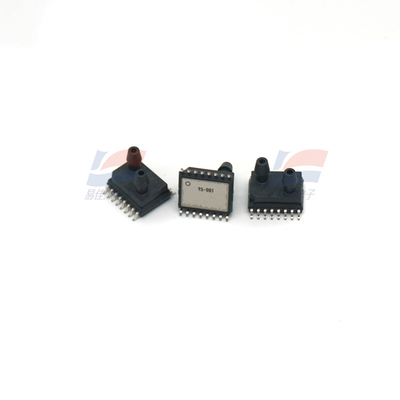

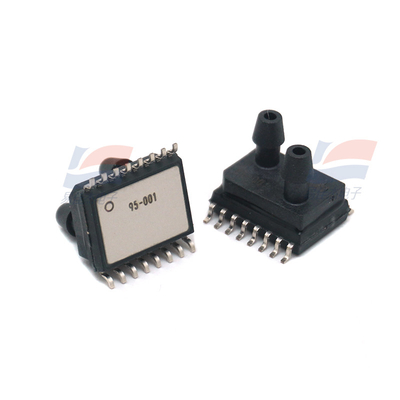

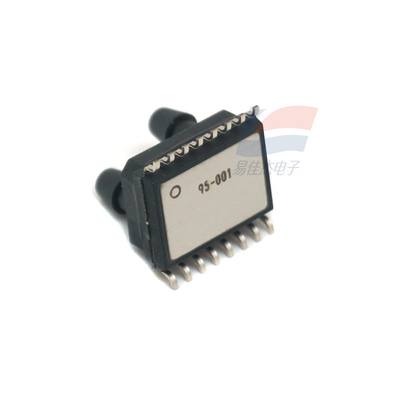

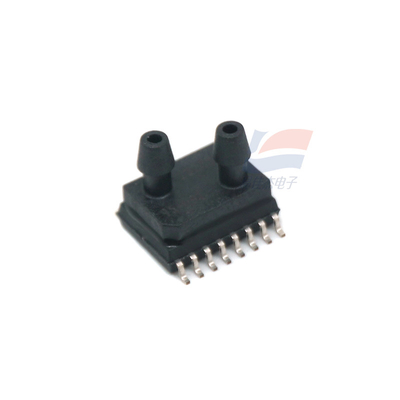

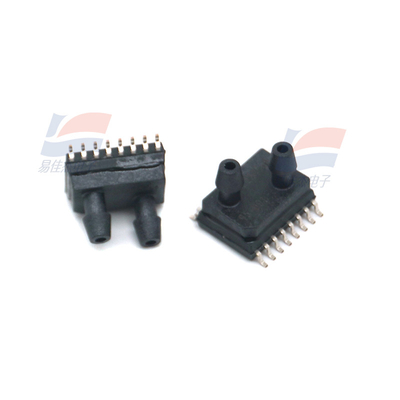

SM9541-010C-S-C-3-S Board Mount Pressure Sensor Ultra Digital Output SOP
Features
1. Fully digital, pressure calibrated and temperature compensated output
2. I2C Digital Interface
3. Compensated temperature range: -5 to 650C
4. Compound gage and differential pressure configurations
5. Insensitive to mounting orientation
6. Robust JEDEC SOlC-16 package for automated assembly
7. Manufactured according to l$09001 and lsO/Ts 16949 standards
8. RoHS & REACH compliant
9. Pressure ranges from 10 cm*H,0 to 140 cm*H,0 (0.14 to 2 PSl)
| Mounting method | SMD/SMD |
| Interface type | I2C |
| Operating supply voltage | 3 volts |
| Port type | Dual radial barb |
| Resolution | 14 bits |
| Package/case | SOIC-16 |
| Minimum operating temperature | -5 degrees Celsius |
| Maximum operating temperature | +65 degrees Celsius |
| Operating supply current | 1 mA |
| Port size | 3 mm |
| Supply voltage - maximum | 3.6 volts |
| Supply voltage - minimum | 3 volts |
