Product Details:
|
| Light-receiving Side: | 1.1 × 1.1 Mm | Encapsulation: | Metal |
|---|---|---|---|
| Package Category: | TO-18 With Lens | Refrigeration: | Non-cooled |
| Reverse Voltage (max): | 30 V | Spectral Response Range: | 320 To 1100 Nm |
| Highlight: | Visible Silicon Pin Photodiode,Universal Silicon Pin Photodiode,Near-infrared Silicon Pin Photodiode |
||

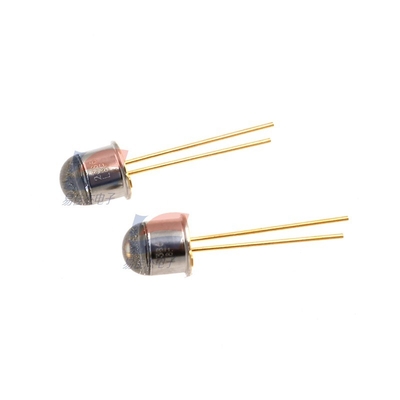

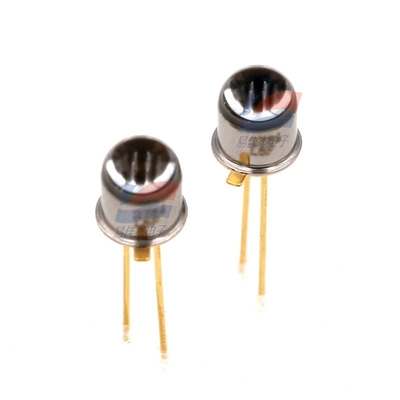

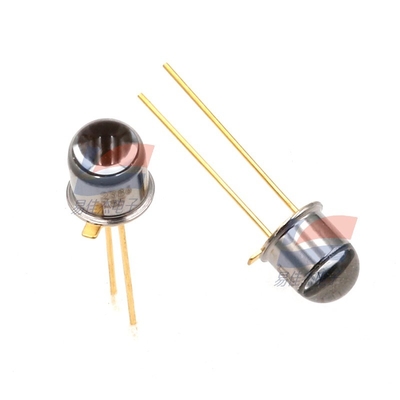

Silicon photodiodes S2386-18L
Features:
- High sensitivity in the near-infrared band
- Low dark current
- High reliability
- Excellent linearity
Applications:
- Analytical instruments
- Optical measurement equipment
Spectral sensitivity characteristics:
Dimensions (unit: mm)
| Light sensitivity (typical) | 0.6 A/W |
| Dark current (max) | 2 pA |
| Rise Time (Typical) | 0.4 μs |
| Junction Capacitance (typical) | 140 pF |
