Product Details:
|
| Encapsulation Material: | Plastics | Light-receiving Side: | 2.8 × 2.4 Mm |
|---|---|---|---|
| Sensitivity Wavelength Range: | 480 To 600 Nm | Dark Current (max): | 0.02 NA |
| Junction Capacitance: | 200 PF | Rise Time: | 0.5 μs |
| Highlight: | White balance adjustment Silicon Pin Photodiode,S6428-01 Silicon Pin Photodiode,S6429-01 Silicon Pin Photodiode |
||

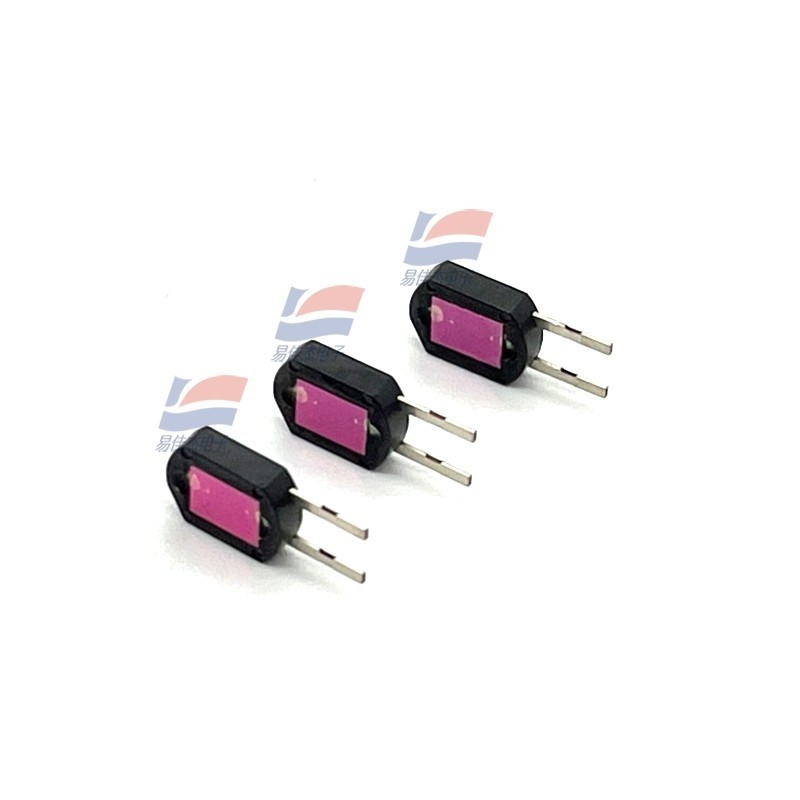

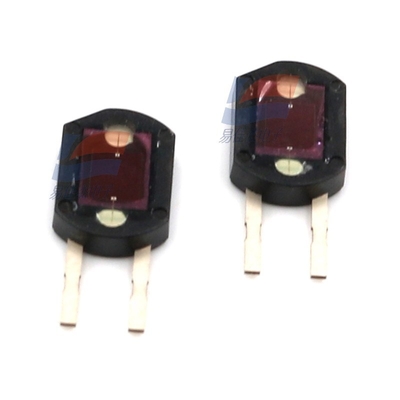

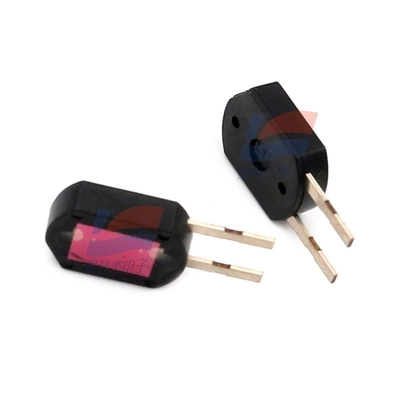

Silicon photodiodes S6429-01
RGB color sensor
The S6429-01 is a color sensor for the detection of monochromatic green light (λp = 540 nm) alone.
Features
-Plastic package (6 × 8 mm)
-Spectral response range: 480 to 600 nm (λp = 540 nm)
-Insensitive to near-infrared bands
-High sensitivity: 0.27 A/W typical (λ = λp)
-Low dark current
Silicon photodiodes S6428-01
RGB color sensor
The S6428-01 is a color sensor for the detection of monochromatic blue light (λp = 460 nm) alone.
Features
- Plastic package (6 × 8 mm)
- Spectral response range: 400 to 540 nm (λp = 460 nm)
- Insensitive to the near-infrared band
- High sensitivity: 0.22 A/W typical (λ = λp)
- Low dark current
| Encapsulation material | plastics |
| Light-receiving side | 2.8 × 2.4 mm |
| Sensitivity wavelength range | 480 to 600 nm |
| Dark current (max) | 0.02 nA |
Silicon photodiodes S6430-01
RGB color sensor
The S6430-01 is a color sensor for the detection of monochromatic red light (λp = 660 nm) alone.
Features
- Plastic package (6 × 8 mm)
- Spectral response range: 590 to 720 nm (λp = 660 nm)
- Insensitive to the near-infrared band
- High sensitivity: 0.45 A/W typical (λ = λp)
- Low dark current
| Junction capacitance | 200 pF |
| Rise time | 0.5 μs |
| remark | Applies to red |
| PIO Measurement Conditions (Product Units) | Typical Ta = 25°C, unless otherwise stated |
