Product Details:
|
| Light-receiving Side: | 5.0 × 5.0 Mm | Encapsulation: | Ceramics |
|---|---|---|---|
| Package Category: | Surface Mount Type | Refrigeration: | Non-cooled |
| Reverse Voltage (max): | 30 V | Spectral Response Range: | 320 To 1100 Nm |
| Highlight: | POS Scanners Silicon Pin Photodiode,Power Meters Silicon Pin Photodiode,Analytical Instruments Silicon Pin Photodiode |
||
Silicon Pin Photodiode S5106 S7510 S7509 For POS Scanners Power Meters And Analytical Instruments

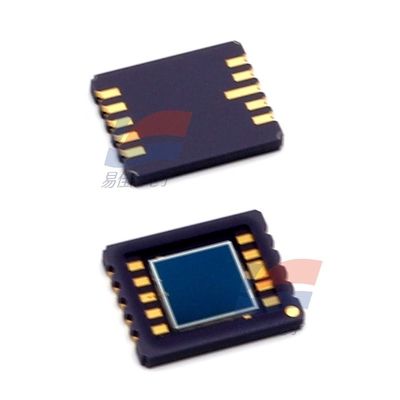

Silicon PIN photodiode S5106
The S5106 is a silicon PIN photodiode in a chip carrier package for surface mount using automated reflow soldering technology. The photodiode has a large light-receiving surface and is suitable for spatial light transmission that requires a wide field of view. Other uses include POS scanners, power meters, and analytical instruments.
Features
- Light-receiving side: 5 × 5 mm
- Ceramic chip carrier package for surface mount
- Suitable for reflow soldering
- High sensitivity
- Packaging
Pallet: S5106
Reel: S5106-10
| Noise equivalent power (typical) | 1.6×10-14 W/Hz1/2 |
| Junction Capacitance (typical) | 40 pF |
| Cut-off Frequency (typical) | 20MHz |
| Dark current (max) | 5000pA |

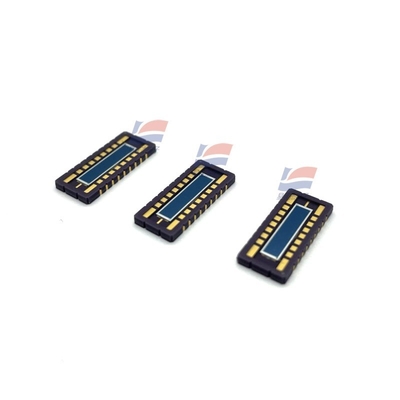

Silicon PIN photodiode S7509
The S7509 is a silicon PIN photodiode in a chip carrier package for surface mount using automated reflow soldering techniques. The photodiode has a large light-receiving surface and is suitable for spatial light transmission that requires a wide field of view. Other uses include POS scanners, power meters, and analytical instruments.
Features
- Light-receiving side: 2 × 10 mm
- Ceramic chip carrier package for surface mount
- Suitable for reflow soldering
- High sensitivity
- Packaging
Tray: S7509
Reel: S7509-10
| Light-receiving side | 10 × 2 mm |
| encapsulation | ceramics |
| Package Category | Surface mount type |
| refrigeration | Non-cooled |
| Reverse voltage (max) | 30V |
| Spectral response range | 320 to 1100 nm |

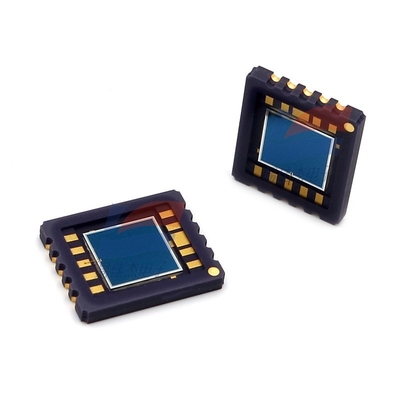

Silicon PIN photodiode S7510
The S7510 is a silicon PIN photodiode in a chip carrier package for surface mount using automated reflow soldering technology. The photodiode has a large light-receiving surface and is suitable for spatial light transmission that requires a wide field of view. Other uses include POS scanners, power meters, and analytical instruments.
Features
- Light-receiving surface: 6 × 11 mm
- Ceramic chip carrier package for surface mount
- Suitable for reflow soldering
- High sensitivity
- Packaging
Tray: S7510
Reel: S7510-10
| Light-receiving side | 11 × 6 mm |
| encapsulation | ceramics |
| Package Category | Surface mount type |
| refrigeration | Non-cooled |
| Reverse voltage (max) | 30 V |
| Spectral response range | 320 to 1100 nm |
