Product Details:
|
| Light-receiving Side: | 3.6 × 3.6 Mm | Encapsulation: | Metal |
|---|---|---|---|
| Package Category: | TO-5 | Refrigeration: | Non-cooled |
| Reverse Voltage (max): | 30 V | Spectral Response Range: | 320 To 1100 Nm |
| Highlight: | High Sensitivity Silicon Pin Photodiode,Near-infrared Band Silicon Pin Photodiode,S2386-44K Silicon Pin Photodiode |
||

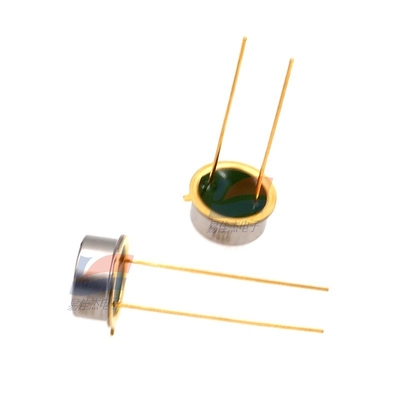

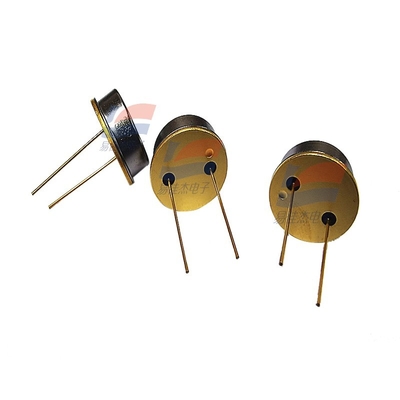

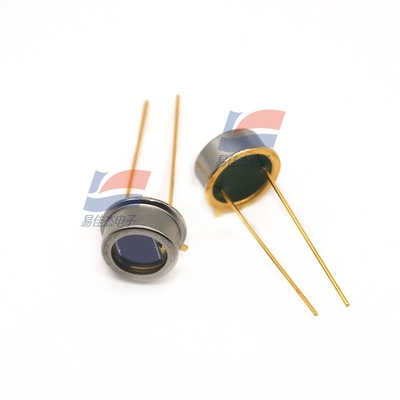

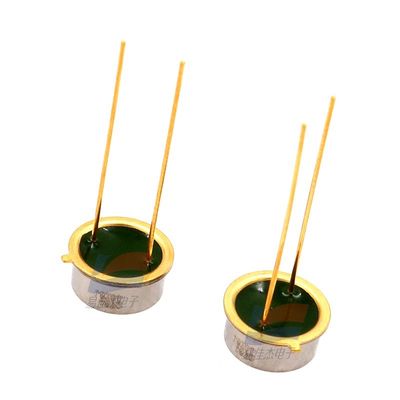

Silicon Pin Photodiode S2386-44K S2386-5K S2386-45K S2386-8K S2683-18K High Sensitivity In The Near-infrared Band
Silicon photodiodes S2386-44K
Suitable for visible to near-infrared, universal photometer
Features
- High sensitivity in the near-infrared band
- Low dark current
- High reliability
- Excellent linearity
| Dark current (max) | 20 pA |
| Rise Time (Typical) | 3.6 μs |
| Junction Capacitance (typical) | 1600 pF |
| Noise equivalent power (typical) | 1.4×10-15 W/Hz1/2 |
Silicon photodiodes S2386-5K
Suitable for visible to near-infrared, universal photometer
Features
- High sensitivity in the near-infrared band
- Low dark current
- High reliability
- Excellent linearity
| Light-receiving side | 2.4 × 2.4 mm |
| encapsulation | metal |
| Package Category | TO-5 |
| refrigeration | Non-cooled |
| Reverse voltage (max) | 30 V |
| Spectral response range | 320 to 1100 nm |
Silicon photodiodes S2386-45K
Features
- High sensitivity in the near-infrared band
- Low dark current
- High reliability
- Excellent linearity
| Light-receiving side | 3.9 × 4.6 mm |
| encapsulation | metal |
| Dark current (max) | 30 pA |
| Rise Time (Typical) | 5.5 μs |
| Junction Capacitance (typical) | 2300 pF |
| Noise equivalent power (typical) | 1.4×10-15 W/Hz1/2 |
Silicon photodiodes S2386-8K
Suitable for visible to near-infrared, universal photometer
Features
- High sensitivity in the near-infrared band
- Low dark current
- High reliability
- Excellent linearity
| Light-receiving side | 5.8 × 5.8 mm |
| encapsulation | metal |
| Package Category | TO-8 |
| Reverse voltage (max) | 30 V |
| Spectral response range | 320 to 1100 nm |
| Dark current (max) | 50pA |
Silicon photodiodes S2386-18K
Suitable for visible to near-infrared, universal photometer
Features
- High sensitivity in the near-infrared band
- Low dark current
- High reliability
- Excellent linearity
| Light-receiving side | 1.1 × 1.1 mm |
| encapsulation | metal |
| Package Category | TO-18 |
| Reverse voltage (max) | 30 V |
| Spectral response range | 320 to 1100 nm |
| Dark current (max) | 2 pA |
