Product Details:
|
| Pressure Range: | 100Pa | Voltage Output: | 0.5 To 4.5V |
|---|---|---|---|
| Operating Temperature: | -25 To 85℃ | Compensated Temperature: | 0 To 70℃ |
| Storage Temperature: | -40 To 125℃ | Over Pressure: | 100mbar |
| Highlight: | HPSD3000 010M-D-B-P-S,100Pa Pressure Sensor,HVAC Pressure Sensor |
||

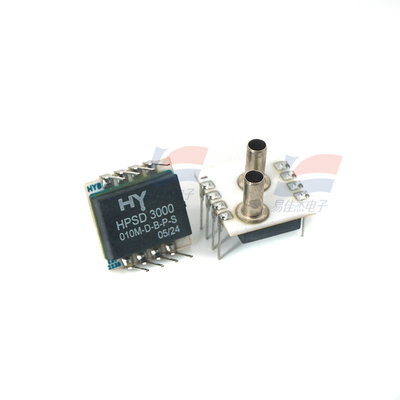

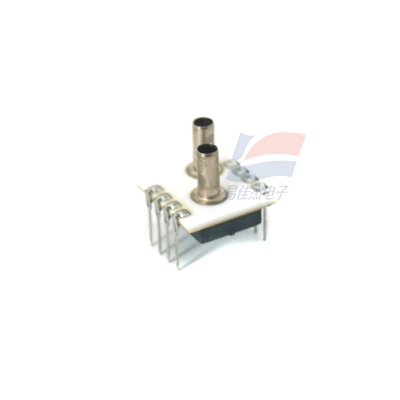

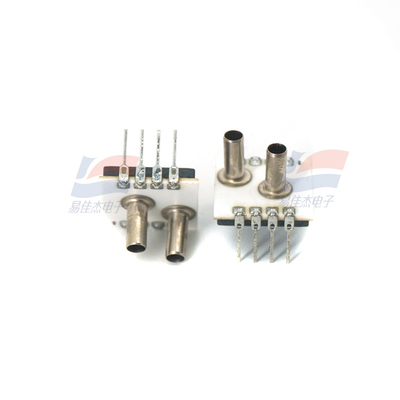

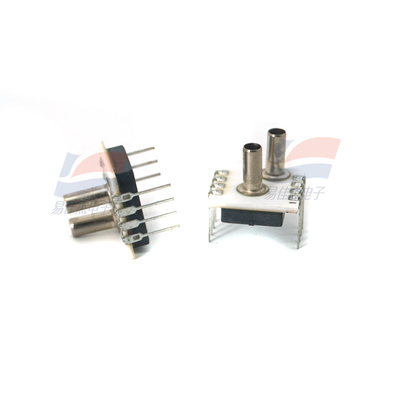

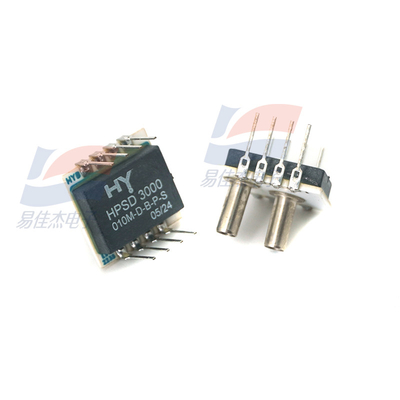

HPSD3000 010M-D-B-P-S Pressure Sensor HVAC Differential Type 100Pa
Pressure transducer HPSD 3000 is a pressure sensing device.Signal conditioning consists of complete temperature compensation and ASlC
High performance and accuracy enables use of this transducer in many applications.
Programmable temperature compensation provides 0,5%FS total error over 0 to 70°C
temperature range.Operating from single 5 W supply, wide compensated temperature range and standard, ratiometric 0,5 to 4,5 V output provides
OEM users maximum freedom for any type of application with dry air or non-corrosive gases or liquids.
The model HPSD 3000 is designed for through hole PCB assembly with one or two pressure ports. The whole group consists for pressure
ranges from 1 mbar to 7 bar. Gage, differential and absolute versions are available for this group.
Applications
1. HVAC
2. Medical instrumentation
3. Respirators
4. Air flow monitoring
5. Process control
6. Pneumatics control
| Pressure Range | 10mbar |
| Supply Power | 4.75-5.25V |
| Current Consumption | 4-6.5mA |
| Offset Voltage | 0.5V |
