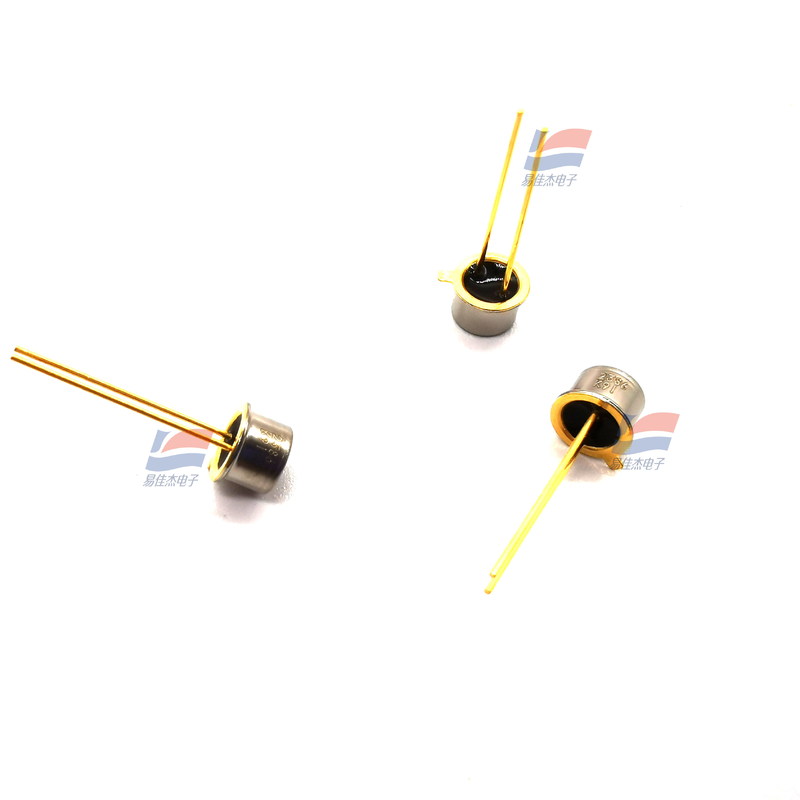

Silicon Pin Photodiodes S1336-18BK S1336-18BQ Low Capacitance

Large Image : Silicon Pin Photodiodes S1336-18BK S1336-18BQ Low Capacitance

Product Details:

Place of Origin:	Japan
Model Number:	S1336-18BK S1336-18BQ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

Silicon Pin Photodiodes S1336-18BK S1336-18BQ Low Capacitance

Description

Light-receiving Side:	1.1 × 1.1 Mm	Encapsulation:	Metal
Package Category:	TO-18	Refrigeration:	Non-cooled
Reverse Voltage (max):	5 V	Spectral Response Range:	190 To 1100 Nm
Highlight:	low capacitance silicon pin photodiodes , infrared photoelectric sensor photodiodes , S1336-18BK silicon pin photodiodes

Silicon photodiodes S1336-18BQ

It is suitable for precise photometry in the ultraviolet to near-infrared wavelength range

Features
- High sensitivity in the ultraviolet band
- Low capacitance
- High reliability

Maximum Sensitivity Wavelength (Typical)	960 nm
Light sensitivity (typical)	0.5 A/W
Dark current (max)	20 pA
Rise Time (Typical)	0.1 μs
Junction Capacitance (typical)	20 pF
Noise equivalent power (typical)	5.7×10-15 W/Hz1/2

Silicon photodiodes S1336-18BK

It is suitable for precise photometry in the ultraviolet to near-infrared wavelength range

Features
- High sensitivity in the ultraviolet band
- Low capacitance
- High reliability

Light-receiving side	1.1 × 1.1 mm
encapsulation	metal
Package Category	TO-18
refrigeration	Non-cooled
Reverse voltage (max)	5v
Spectral response range	320 to 1100 nm

Silicon Pin Photodiodes S1336-18BK S1336-18BQ Low Capacitance 0
