Silicon Pin Photodiodes S1336-8BK S1336-8BQ High Sensitivity In The Ultraviolet Band

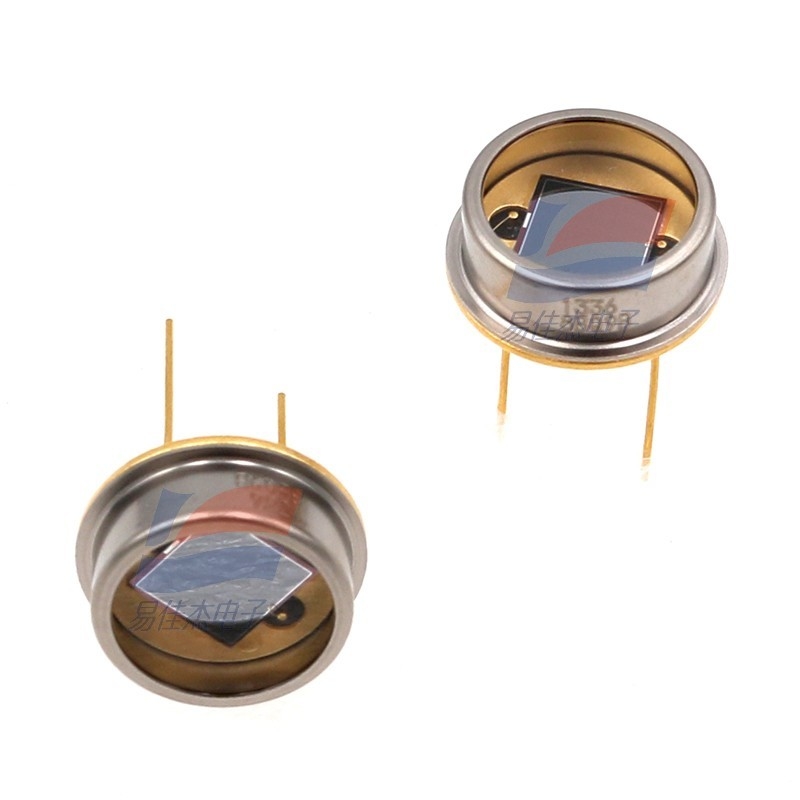

Large Image : Silicon Pin Photodiodes S1336-8BK S1336-8BQ High Sensitivity In The Ultraviolet Band

Product Details:

Place of Origin:	Japan
Model Number:	S1336-8BK S1336-8BQ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

Silicon Pin Photodiodes S1336-8BK S1336-8BQ High Sensitivity In The Ultraviolet Band

Description

Light-receiving Side:	5.8 × 5.8 Mm	Encapsulation:	Metal
Package Category:	TO-8	Refrigeration:	Non-cooled
Reverse Voltage (max):	5 V	Spectral Response Range:	190 To 1100 Nm
Highlight:	silicon pin photodiodes high sensitivity , ultraviolet band silicon photodiodes , S1336-8BK photodiodes with warranty

Silicon photodiodes S1336-8BQ

It is suitable for precise photometry in the ultraviolet to near-infrared wavelength range

Features
- High sensitivity in the ultraviolet band
- Low capacitance
- High reliability

Maximum Sensitivity Wavelength (Typical)	960 nm
Light sensitivity (typical)	0.5 A/W
Dark current (max)	100 pA
Rise Time (Typical)	1 μs
Junction Capacitance (typical)	380 pF
Noise equivalent power (typical)	1.3×10-14 W/Hz1/2

Silicon photodiodes S1336-8BK

It is suitable for precise photometry in the ultraviolet to near-infrared wavelength range

Features
- High sensitivity in the ultraviolet band
- Low capacitance
- High reliability

Light-receiving side	5.8 × 5.8 mm
encapsulation	metal
Package Category	TO-8
refrigeration	Non-cooled
Reverse voltage (max)	5 V
Spectral response range	320 to 1100 nm

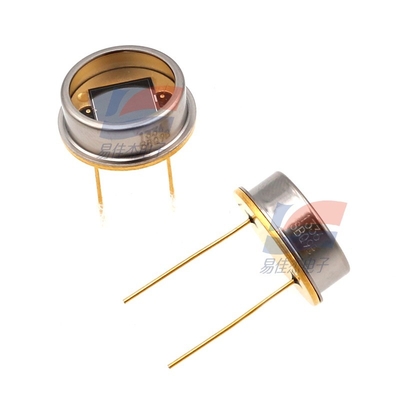

Silicon Pin Photodiodes S1336-8BK S1336-8BQ High Sensitivity In The Ultraviolet Band 1
