Product Details:
|
| Repeatability: | ± 0.5% | Temperature Drift: | < 0.3% / 10℃ |
|---|---|---|---|
| Operating Temperature: | -5 To +65 ℃ | Zero Drift: | ± 0.5 Pa |
| Zero Point Stability: | ± 0.1 Pa/ Year | Zero-point Repeatability: | ± 0.1 Pa |
| Highlight: | Digital Micro-Differential Pressure Sensor,Precise Measurements Micro-Differential Pressure Sensor,FSP1000-50-EV-U Pressure Sensor |
||
Product Description:

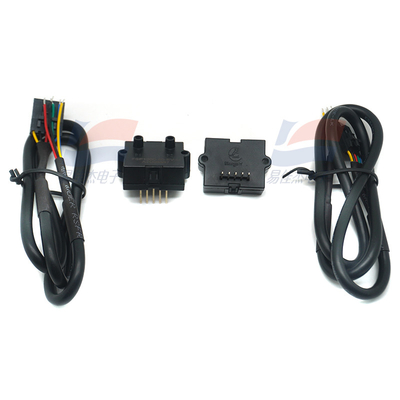

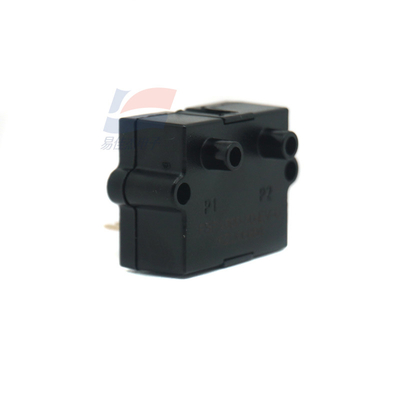

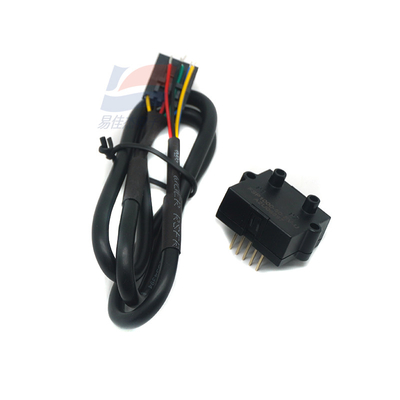

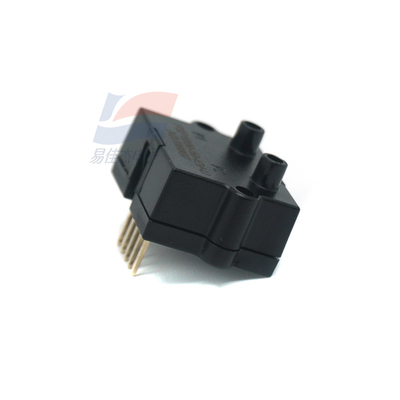

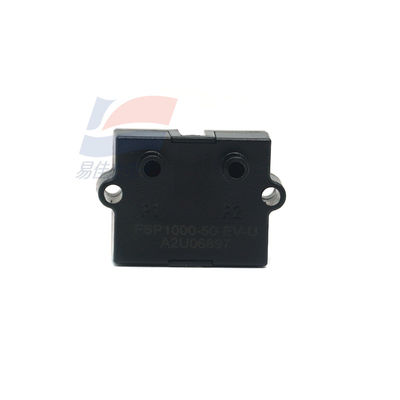

FSP1000-50-EV-U Digital Micro-Differential Pressure Sensor Has An Selectable Range
Features:
I. Features of the Siargo Digital Differential Pressure Sensor FSP1000 series from the United States:
The sensor has high sensitivity and an extremely small starting flow rate
Fast response speed
Low voltage loss
Easy to install
Ii. Selection of Siargo Digital Differential Pressure Sensor FSP1000 Series Products from the United States:
FSP1000: Output (E-I 2C; V- Analog voltage Optional E and EV
Pressure difference range (optional 250 and 500)
The unit of the pressure difference range is Pa. For example, 250 represents a pressure difference of. ±250Pa
The standard output of the sensor is IC, and the analog voltage output is an option.
Iii. Technical Parameters of Siargo Digital Differential Pressure Sensor FSP1000 Series from the United States:
The pressure difference range is ±250, ±500 Pa
± 1.0, ± 2.0 i nch H O.
Working power supply: 3.0-3.6 Vdc
Output mode: Linear, IC/analog voltage (optional)
With
The analog output range is 0.4 to 2.4 Vdc
The digital output resolution is 12 bitt
The IC clock frequency is 100 kH z
The IC address is read as 0xa1 and written as 0xa0

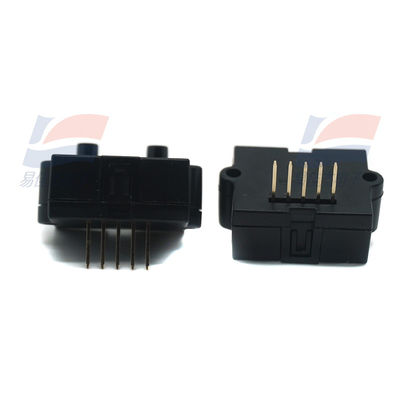

Five-pin electrical interface, 2.54m
The response time is 5 ms
The flow resistance is less than 95m l/m im @ 500Pa
Accuracy ±(2.0 + 0.2 FS) %
Repeatability: ± 0.5%
Temperature drift < 0.3% / 10℃
Operating temperature: -5 to +65 ℃
Zero drift ± 0.5 Pa
Zero point stability ± 0.1 Pa/ year
Zero-point repeatability ± 0.1 Pa
Altitude has no effect (fully compensated)
Storage temperature: -40 to +85 ℃
The working pressure is 0.2 MPa
Operating humidity: 0-100 (no freezing, no condensation) % RH
The preheating time is 50 m sec
Vibration standard: 20g; M I L-STD -883E, M et
hod 2002. 4.
Conformity RoH S and REAC H
Shenzhen Yijiajie Electronic Technology Co., Ltd. mainly serves OEM manufacturers in the sales of sensor products. In the field of sensing and control products, we provide product sales and technical support services in China for globally renowned manufacturers. We are also currently a professional supplier of sensing and control products in China and Hong Kong. The head office was founded in Hong Kong in 2002. The Shenzhen company is located at the intersection of Shennan Middle Road and Huaqiang North Road in Shenzhen. Meanwhile, the company has a large amount of spot inventory in Shenzhen and Hong Kong and can place orders directly from abroad with prompt delivery. We hope to cooperate with domestic related manufacturers to provide your company with high-quality and satisfactory products and make your products more competitive. We sincerely look forward to cooperating with you.
Specifications:
| Repeatability | ± 0.5% |
| Temperature drift | < 0.3% / 10℃ |
| Operating temperature | -5 to +65 ℃ |
| Zero drift | ± 0.5 Pa |
