Product Details:
|
| Light-receiving Side: | 1.1 × 1.1 Mm | Encapsulation: | Metal |
|---|---|---|---|
| Package Category: | TO-18 | Refrigeration: | Non-cooled |
| Reverse Voltage (max): | 5 V | Spectral Response Range: | 320 To 1000 Nm |
| Highlight: | S1226-18BQ Silicon Photodiodes,NIR Sensitivity Silicon Photodiodes,S1226-18BK Silicon Photodiodes |
||

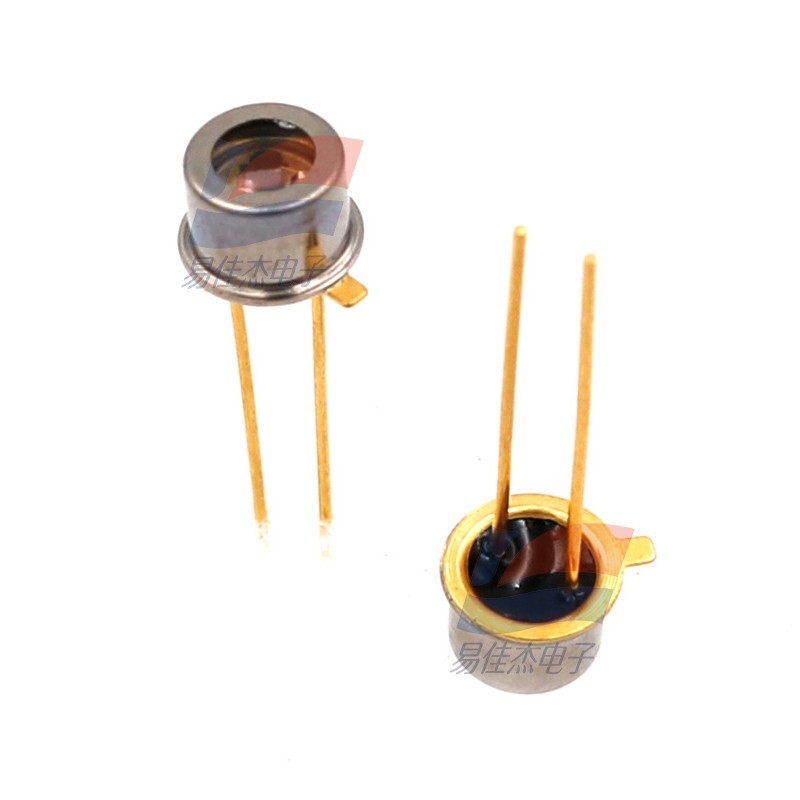

Silicon Pin photodiodes S1226-18BK
It is suitable for precise photometry in the ultraviolet to visible wavelength band; Suppresses near-infrared sensitivity
Features
- High UV sensitivity: QE = 75 % (λ = 200 nm)
- Suppression of NIR sensitivity
- Low dark current
- High reliability
| Maximum Sensitivity Wavelength (Typical) | 720 nm |
| Light sensitivity (typical) | 0.36 A/W |
| Dark current (max) | 2pA |
| Rise Time (Typical) | 0.15 μs |
| Junction Capacitance (typical) | 35 pF |
| Noise equivalent power (typical) | 1.6×10-15 W/Hz1/2 |

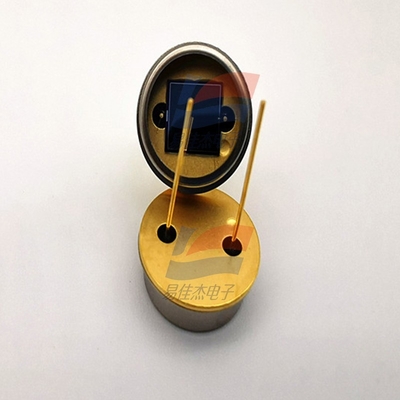

Silicon Pin photodiodes S1226-18BQ
It is suitable for precise photometry in the ultraviolet to visible wavelength band; Suppresses near-infrared sensitivity
Features
- High UV sensitivity: QE = 75 % (λ = 200 nm)
- Suppression of NIR sensitivity
- Low dark current
- High reliability
| Light-receiving side | 1.1 × 1.1 mm |
| encapsulation | metal |
| Package Category | TO-18 |
| Reverse voltage (max) | 5 V |
| Spectral response range | 190 to 1000 nm |
| Light sensitivity (typical) | 0.36 A/W |
