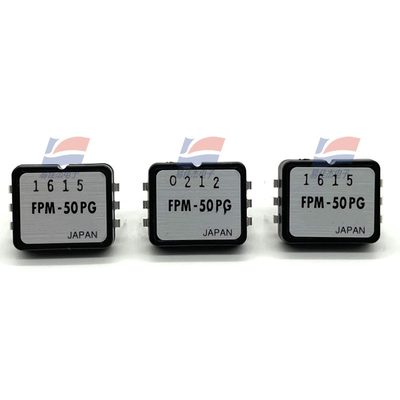

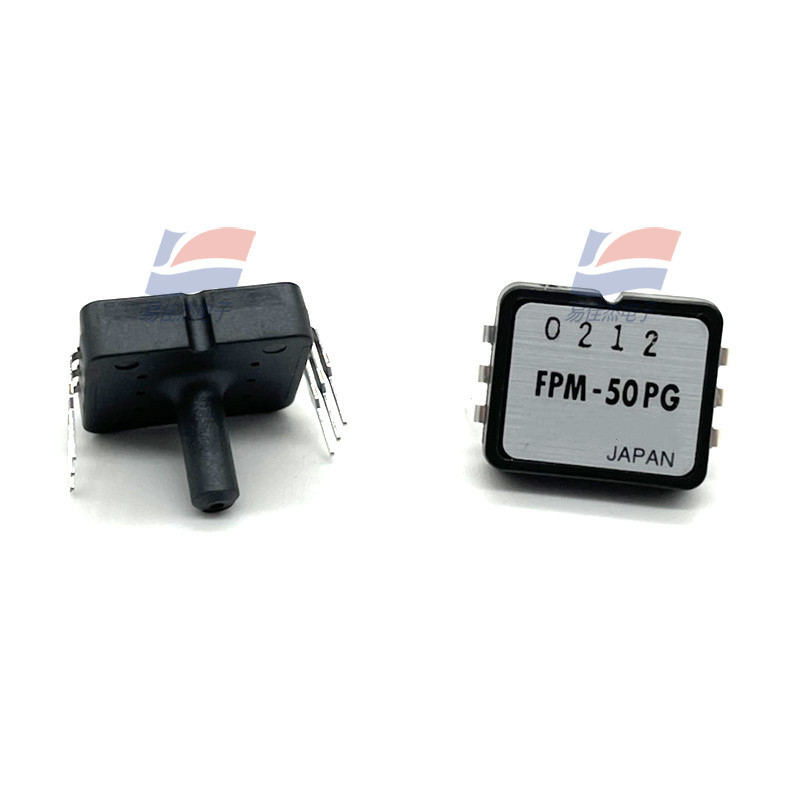

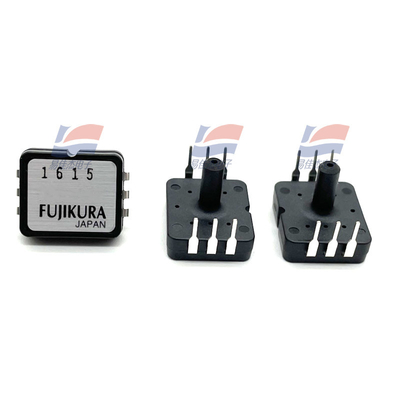

YJJ FPM-50PG 0~50psi Pressure Sensor for Industrial Medical Appliances

Product Description:

FPM-50PG 0~50psi Pressure Sensor Is Used In Industrial Medical Appliances

Features:

Specifications

Model 02PG 05PG 07PG 15PG 30PG 50PG 70PG 120PG Unit

Recommended operating conditions

Pressure type Gauge pressure -

Rated pressure 13.79 34.47 48.26 103.4 206.8 344.7 482.6 827.4 kPa

Measurable pressure range -13.79

Temperature range 0 to 50 deg.C

Pressure media Non-corrosive gases only (No liquid) -

Excitation current (Constant) 1.5 mADC

Absolute maximum rating

Maximum load pressure Twice of rated pressure

1.5 times

of rating

pressure-

Maximum excitation current 3.0 mADC

Operating temperature -20 to 100 deg.C

Storage temperature -40 to 120 deg.C

Operating humidity 30 to 80 (Non dew condition) %RH

Electric characteristics (Drive Current 1.5mA constant ,ambient temperature Ta=25deg.C)

Output span voltage 60 to 140 (at 0kPa to rated pressure) mV

Offset voltage +/-20 (at 0kPa) mV

Bridge resistance 4000 to 6000 Ω

Response time 2 (for the reference) msec.

Accuracy TSO* +/-5

Measurable pressure

range(kPa) Part number

-13.79 to 13.79 FPM-02PG FPM-02PGR

-34.47 to 34.47 FPM-05PG FPM-05PGR

-48.26 to 48.26 FPM-07PG FPM-07PGR

-98.07 to 103.4 FPM-15PG FPM-15PGR

-98.07 to 206.8 FPM-30PG FPM-30PGR

-98.07 to 344.7 FPM-50PG FPM-50PGR

-98.07 to 482.6 FPM-70PG FPM-70PGR

-98.07 to 827.4 FPM-120PG FPM-120PGR

P1= 0 kPa T1= 0 deg.C

P2= 1/2 x P3 (kPa) T2= 25 deg.C

P3= reted pressure (kPa) T3= 50 deg.C

Offset voltage (mV)

Voff = V(P1,T)

Voff(0) = V(P1,T1)

Voff(25) = V(P1,T2)

Voff(50) = V(P1,T3)

Output voltage at full scale (mV)

Vfs = V(P3,T)

Vfs(0) = V(P3,T1)

Vfs(25) = V(P3,T2)

Vfs(50) = V(P3,T3)

Output span voltage (mV)

SV = Vfs - Voff

SV(0) = Vfs(0) - Voff(0)

SV(25) = Vfs(25) - Voff(25)

SV(50) = Vfs(50) - Voff(50)

Temperature sensitivity of offset voltage (%FS)

TSO = {LARGER ONE} / SV(25) x 100

LARGER ONE = larger absolute value which of {Voff(0)-Voff(25)} and {Voff(50)-Voff(25)}

Temperature coefficient of output span voltage (%FS)

TCS = {max[SV(0),SV(25),SV(50)] - min[SV(0),SV(25),SV(50)] } / SV(25) x 100

Linearity (%FS)

NL = {V(P2,T2) - [Voff(25)+Vfs(25)]/2 } / SV(25) x 100

Pressure hysteresis (%FS)

Phys = {Voff’(25) - Voff(25) } / SV(25) x 100

Voff’(25) : Output voltage against P1 after stressing by P3 pressure.
