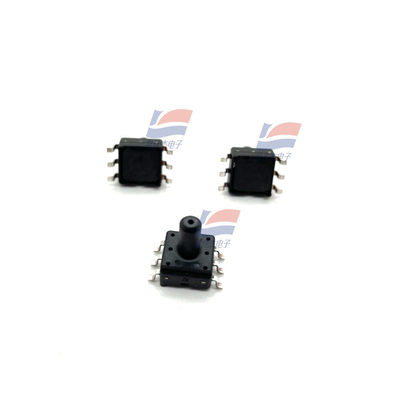

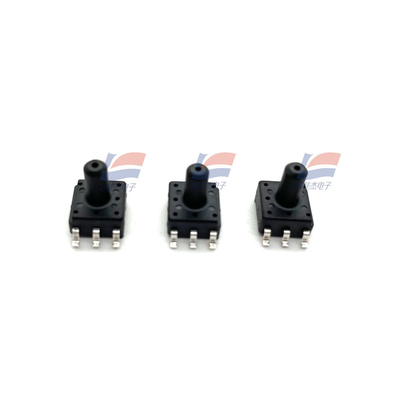

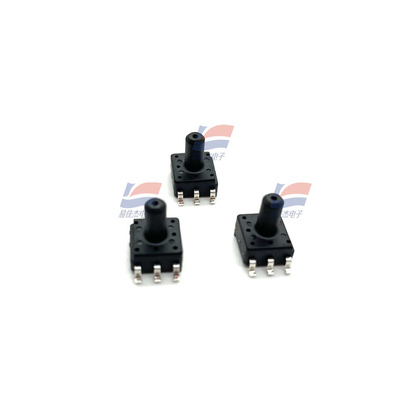

YJJ XFGM-6200KPGSR Pressure Sensor For Portable Electronic Blood Pressure Monitors

Product Description:

XFGM-6200KPGSR Pressure Sensor Is Used For Portable Electronic Blood Pressure Monitors

Features:

Two accuracy ranks, 1.5 FS and 2.5 FS available

. Volt level output

. On-chip amplification and temperature compensations

. Pre-calibration of offset voltage and span

. Non-corrosive liquid measurable (XFGMC only)

Applications

. Industrial instrumentation

. Pressure switch, Pneumatic device

. Medical device

Measurable pressure range (kPa) Part number for ordering

100 100 XFGM-3100KPGWSR XFGM-6100KPGWSR

0 100 XFGM-3100KPGVSR XFGM-6100KPGVSR

0 25 XFGM-3025KPGSR XFGM-6025KPGSR

0 50 XFGM-3050KPGSR XFGM-6050KPGSR

0 100 XFGM-3100KPGSR XFGM-6100KPGSR

0 200 XFGM-3200KPGSR XFGM-6200KPGSR

0 1000 XFGM-3001MPGSR XFGM-6001MPGSR

Model/Rated pressure 100KPGW 100KPGV 025KPG 050KPG 100KPG 200KPG 001MPG Unit

Recommended operating conditions

Pressure type Gauge pressure

Rated pressure 100 100 25 50 100 200 1000 kPa

1.020 1.020 0.255 0.510 1.020 2.040 10.20 kg/cm2

Measurable pressure range 100 100 0 100 0 25 0 50 0 100 0 200 0 1000 kPa

Pressure media 1 XFGM : Non-corrosive gas only, XFGMC : Non-corrosive gas and liquid

Excitation voltage 5.0 0.25 VDC

Absolute maximum rating

Maximum load pressure Twice of rated pressure 1.5times of rated pressure

Maximum excitation voltage 8 VDC

Operating temperature 40 125

Storage temperature 40 125

Operating humidity 30 80(No dew condensation) RH

Electric performances/characteristics (Excitation voltage Vcc=5.0V constant, Ambient temperature Ta=25 )

Current consumption less than 10 mA

Output impedance less than 10

Source current less than 0.2 mA

Sink current less than 2 mA

Mechanical response time 2 (For the reference) msec

Full scale span voltage 4.5 V

Offset voltage 1.2 0.2 0.1125, 0.2 0.0675(H) V

Full scale span voltage 1.2 4.7 0.1125, 4.7 0.0675(H) V

Accuracy 1.2 2.5, 1.5(H) FS/0 85
