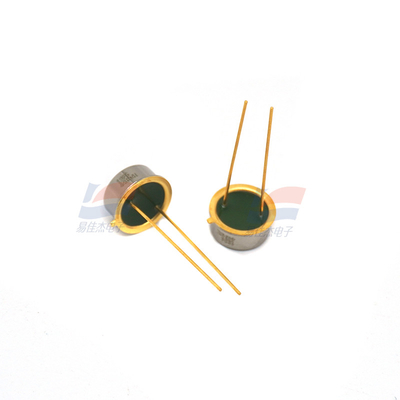

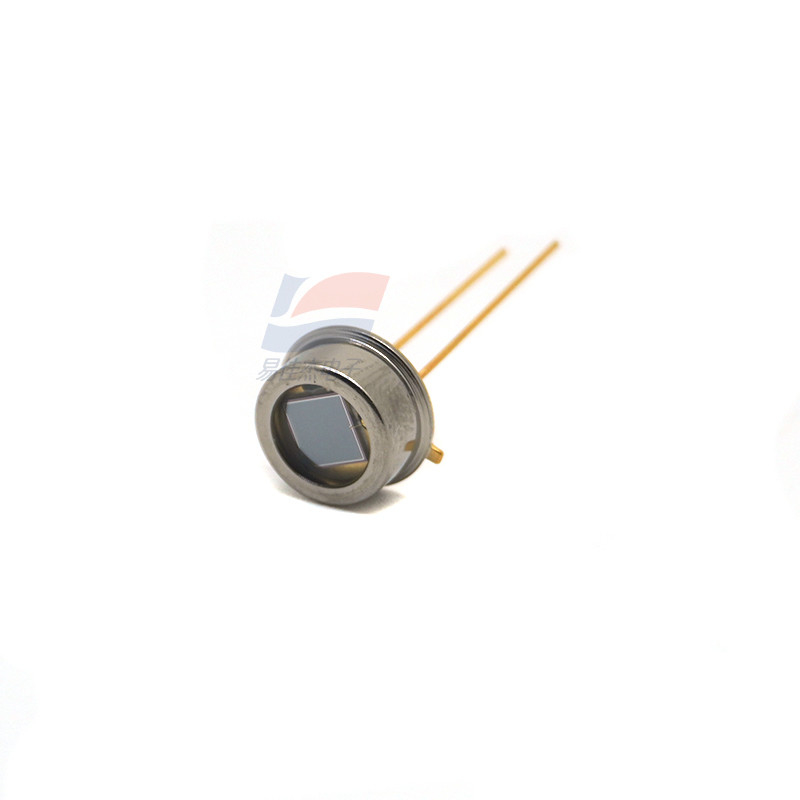

Silicon Pin Photodiodes S1226-44BK S1226-44BQ Low Dark Current

Large Image : Silicon Pin Photodiodes S1226-44BK S1226-44BQ Low Dark Current

Product Details:

Place of Origin:	Japan
Model Number:	S1226-44BK S1226-44BQ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

Silicon Pin Photodiodes S1226-44BK S1226-44BQ Low Dark Current

Description

Light-receiving Side:	3.6 × 3.6 Mm	Encapsulation:	Metal
Package Category:	TO-5	Refrigeration:	Non-cooled
Reverse Voltage (max):	5 V	Spectral Response Range:	320 To 1000 Nm
Highlight:	S1226-44BK Silicon Pin Photodiodes , S1226-44BQ Silicon Pin Photodiodes , Low Dark Current Silicon Pin Photodiodes

Silicon photodiodes S1226-44BK

It is suitable for precise photometry in the ultraviolet to visible wavelength band; Suppresses near-infrared sensitivity

Features
- High UV sensitivity: QE = 75 % (λ = 200 nm)
- Suppression of NIR sensitivity
- Low dark current
- High reliability

Maximum Sensitivity Wavelength (Typical)	720 nm
Light sensitivity (typical)	0.36 A/W
Dark current (max)	10 pA
Rise Time (Typical)	1 μs
Junction Capacitance (typical)	500 pF
Noise equivalent power (typical)	3.6×10-15 W/Hz1/2

Silicon Pin Photodiodes S1226-44BK S1226-44BQ Low Dark Current 0

Silicon photodiodes S1226-44BQ

It is suitable for precise photometry in the ultraviolet to visible wavelength band; Suppresses near-infrared sensitivity

Features
- High UV sensitivity: QE = 75 % (λ = 200 nm)
- Suppression of NIR sensitivity
- Low dark current
- High reliability

Light-receiving side	3.6 × 3.6 mm
encapsulation	metal
Package Category	TO-5
refrigeration	Non-cooled
Reverse voltage (max)	5 V
Spectral response range	190 to 1000 nm

Silicon Pin Photodiodes S1226-44BK S1226-44BQ Low Dark Current 1
