Product Details:
|
| Light-receiving Side: | 2.4 × 2.4 Mm | Encapsulation: | Metal |
|---|---|---|---|
| Package Category: | TO-5 | Refrigeration: | Non-cooled |
| Reverse Voltage (max): | 5 V | Spectral Response Range: | 320 To 1000 Nm |
| Highlight: | S1226-5BQ Silicon Pin Photodiodes,S1226-5BK Silicon Pin Photodiodes,NIR Sensitivity Silicon Pin Photodiodes |
||

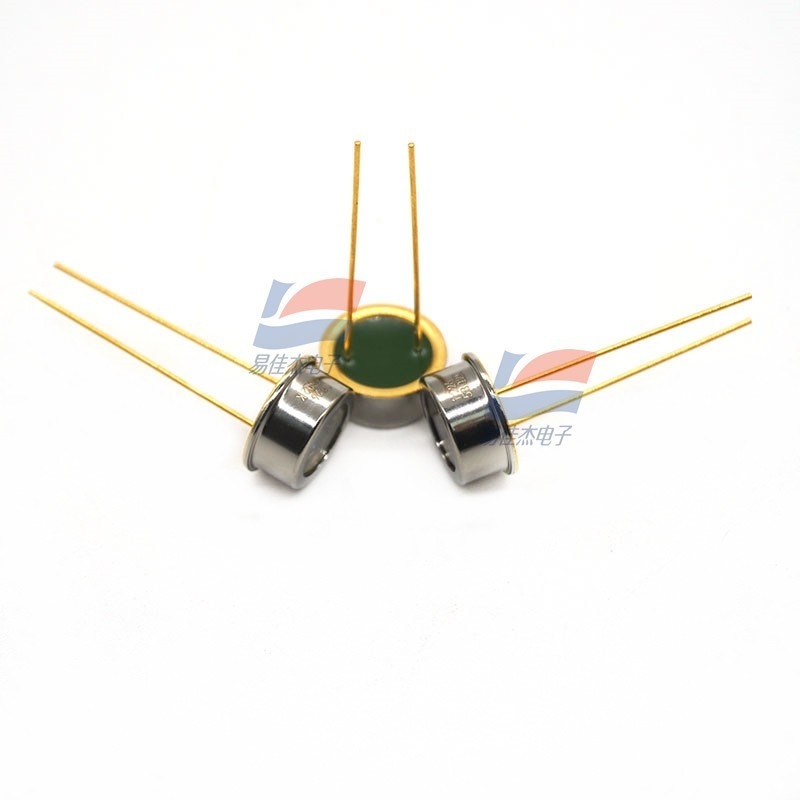

Silicon photodiodes S1226-5BK
It is suitable for precise photometry in the ultraviolet to visible wavelength band; Suppresses near-infrared sensitivity
Features
- High UV sensitivity: QE = 75 % (λ = 200 nm)
- Suppression of NIR sensitivity
- Low dark current
- High reliability
| Maximum Sensitivity Wavelength (Typical) | 720 nm |
| Light sensitivity (typical) | 0.36 A/W |
| Dark current (max) | 5 pA |
| Rise Time (Typical) | 0.5 μs |
| Junction Capacitance (typical) | 160 pF |
| Noise equivalent power (typical) | 2.5×10-15 W/Hz1/2 |

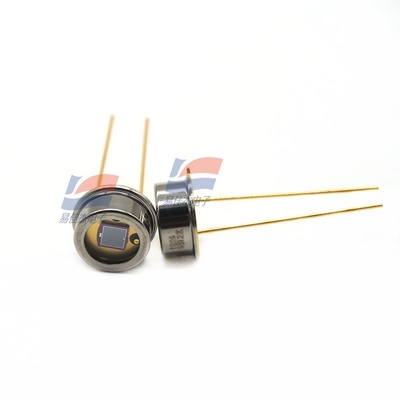

Silicon photodiodes S1226-5BQ
It is suitable for precise photometry in the ultraviolet to visible wavelength band; Suppresses near-infrared sensitivity
Features
- High UV sensitivity: QE = 75 % (λ = 200 nm)
- Suppression of NIR sensitivity
- Low dark current
- High reliability
| Light-receiving side | 2.4 × 2.4 mm |
| encapsulation | metal |
| Light sensitivity (typical) | 0.36 A/W |
| Junction Capacitance (typical) | 160 pF |
| Spectral response range | 190 to 1000 nm |
| Maximum Sensitivity Wavelength (Typical) | 720 nm |
