Product Details:
|
| Light-receiving Side: | φ1.2 Mm | Encapsulation: | Metal |
|---|---|---|---|
| Package Category: | TO-18 With Lens | Refrigeration: | Non-cooled |
| Reverse Voltage (max): | 20 V | Spectral Response Range: | 320 To 1100 Nm |
| Highlight: | Low Dark Current Silicon PIN Photodiode,High Speed Response Silicon PIN Photodiode,S5821-01 Silicon PIN Photodiode |
||

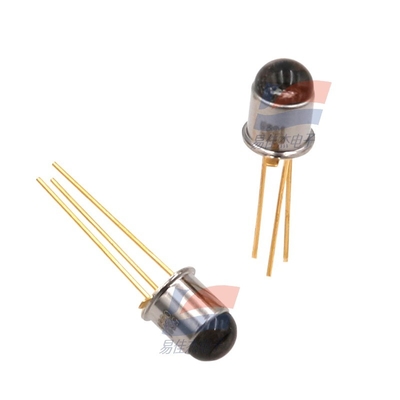

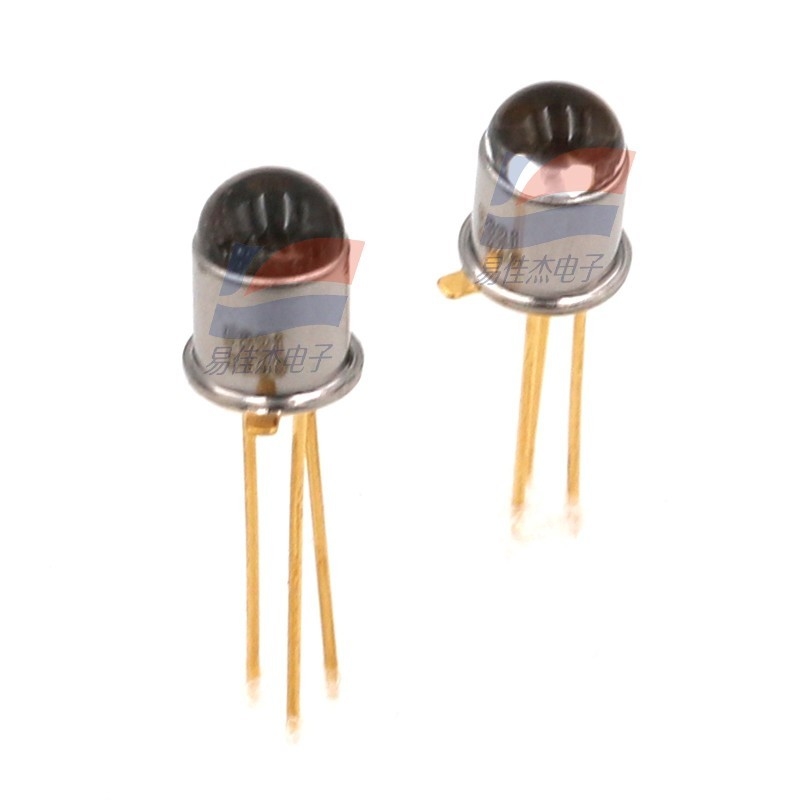

Silicon PIN photodiode S5821-01
High-performance, high-reliability silicon PIN photodiodes
The S5821-01 is a high-speed silicon PIN photodiode with high sensitivity over a wide spectral range from visible to near-infrared. The S5821-01 delivers high performance and reliability at a low cost.
Features
- High speed response
- Wide spectral sensitivity characteristic range
- Low dark current
- Low junction capacitance
| Maximum Sensitivity Wavelength (Typical) | 960 nm |
| Light sensitivity (typical) | 0.52 A/W |
| Dark current (max) | 2000 pA |
| Cut-off Frequency (typical) | 25 MHz |
| Junction Capacitance (typical) | 3 pF |
| Noise equivalent power (typical) | 6.7×10-15 W/Hz1/2 |
