Silicon Photodiodes S1337-66BQ S1337-33BQ Low Capacitance

Large Image : Silicon Photodiodes S1337-66BQ S1337-33BQ Low Capacitance

Product Details:

Place of Origin:	Japan
Model Number:	S1337-66BQ S1337-33BQ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

Silicon Photodiodes S1337-66BQ S1337-33BQ Low Capacitance

Description

Light-receiving Side:	5.8 × 5.8 Mm	Encapsulation:	Ceramics
Refrigeration:	Non-cooled	Reverse Voltage (max):	5 V
Spectral Response Range:	190 To 1100 Nm	Light Sensitivity (typical):	0.5 A/W
Highlight:	Low Capacitance Silicon Photodiodes , S1337-66BQ Silicon Photodiodes , S1337-33BQ Silicon Photodiodes

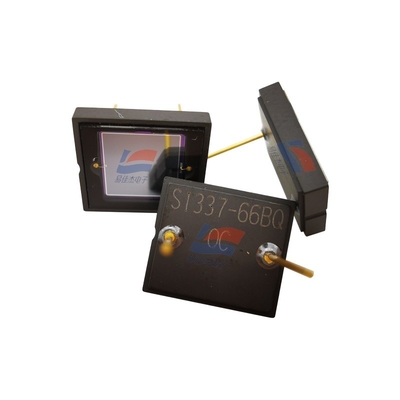

Silicon photodiodes S1337-66BQ

It is suitable for precise photometry in the ultraviolet to infrared band

Features
- High UV sensitivity: QE 75% (λ=200 nm)
- Low capacitance

Maximum Sensitivity Wavelength (Typical)	960 nm
Dark current (max)	100 pA
Rise Time (Typical)	1 μs
Junction Capacitance (typical)	380 pF
Noise equivalent power (typical)	1.3×10-14 W/Hz1/2

Silicon Photodiodes S1337-66BQ S1337-33BQ Low Capacitance 0

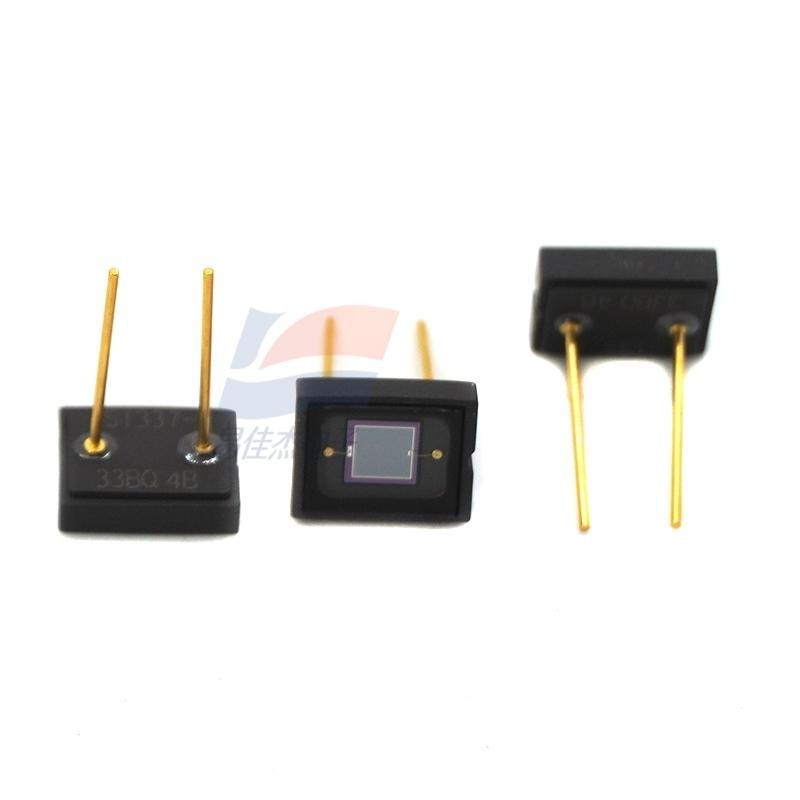

Silicon photodiodes S1337-33BQ

It is suitable for precise photometry in the ultraviolet to infrared band
Features
- High UV sensitivity: QE 75% (λ=200 nm)
- Low capacitance

Light-receiving side	2.4 × 2.4 mm
encapsulation	ceramics
refrigeration	Non-cooled
Reverse voltage (max)	5 V
Spectral response range	190 to 1100 nm
Light sensitivity (typical)	0.5 A/W

Silicon Photodiodes S1337-66BQ S1337-33BQ Low Capacitance 1
