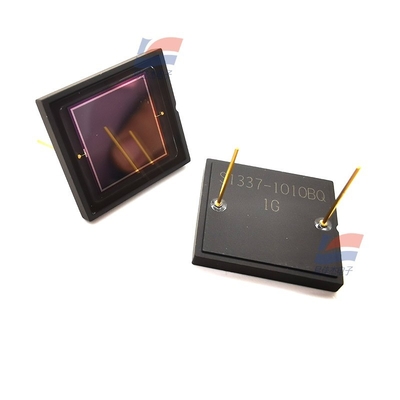

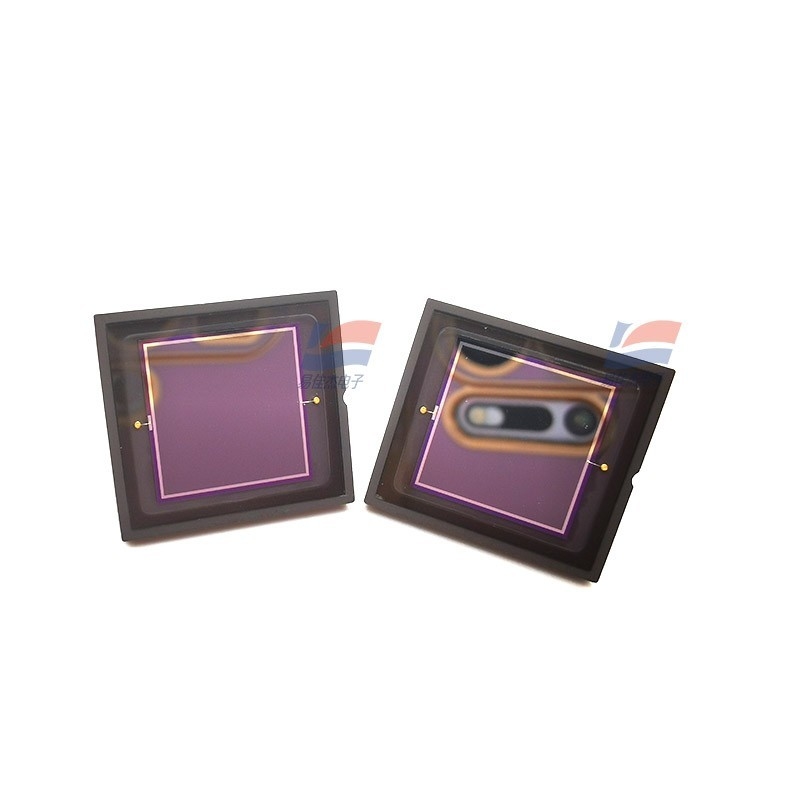

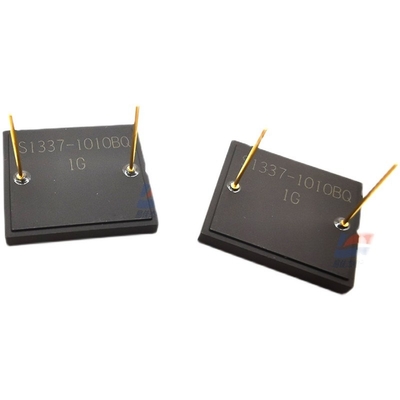

Silicon Photodiodes S1337-1010BR S1337-1010BQ Low Capacitance

Large Image : Silicon Photodiodes S1337-1010BR S1337-1010BQ Low Capacitance

Product Details:

Place of Origin:	Japan
Model Number:	S1337-1010BR S1337-1010BQ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

Silicon Photodiodes S1337-1010BR S1337-1010BQ Low Capacitance

Description

Light-receiving Side:	10 × 10 Mm	Encapsulation:	Ceramics
Refrigeration:	Non-cooled	Reverse Voltage (max):	5 V
Spectral Response Range:	190 To 1100 Nm	Dark Current (max):	200 PA
Highlight:	Low Capacitance Silicon Photodiodes , S1337-1010BR Silicon Photodiodes , S1337-1010BQ Silicon Photodiodes

Silicon photodiodes S1337-1010BQ

It is suitable for precise photometry in the ultraviolet to infrared band

Features
- High UV sensitivity: QE 75% (λ=200 nm)
- Low capacitance

Maximum Sensitivity Wavelength (Typical)	960 nm
Light sensitivity (typical)	0.5 A/W
Rise Time (Typical)	3 μs
Junction Capacitance (typical)	1100 pF
Noise equivalent power (typical)	1.8×10-14 W/Hz1/2

Silicon Photodiodes S1337-1010BR S1337-1010BQ Low Capacitance 0

Silicon photodiodes S1337-1010BR

It is suitable for precise photometry in the ultraviolet to infrared band

Features
- Low capacitance

Light-receiving side	10 × 10 mm
encapsulation	ceramics
Spectral response range	340 to 1100 nm
Maximum Sensitivity Wavelength (Typical)	960 nm
Light sensitivity (typical)	0.62 A/W
Dark current (max)	200 pA

Silicon Photodiodes S1337-1010BR S1337-1010BQ Low Capacitance 1
