Non-cooled Silicon Photodiodes S1227-33BQ S1227-33BR Spectral Response Range 190 to 1000 nm and Suppressed IR Sensitivity

Name: Non-cooled Silicon Photodiodes S1227-33BQ S1227-33BR Spectral Response Range 190 to 1000 nm and Suppressed IR Sensitivity
Brand: ShenzhenYijiajie Electronic Co., Ltd.
SKU: S1227-33BQ S1227-33BR
Price: 18.00 USD
Availability: InStock

All Products

Oxygen Gas Sensor
(150)

Electrochemical Gas Sensor
(14)

Gas Sensor
(941)

Carbon Dioxide Sensor
(16)

Electronic Gas Analyzer
(53)

Medical Air Flow Sensor
(105)

Humidity Temperature Sensor
(55)

Electronic Pressure Sensor
(293)

Hall Effect Sensor
(48)

Current Sensor
(27)

Infrared Photoelectric Sensor
(156)

UV Photodiode Sensor
(70)

Other Sensors
(101)

Gas Sensor Module
(7)

I'm Online Chat Now

Non-cooled Silicon Photodiodes S1227-33BQ S1227-33BR Spectral Response Range 190 to 1000 nm and Suppressed IR Sensitivity

Large Image : Non-cooled Silicon Photodiodes S1227-33BQ S1227-33BR Spectral Response Range 190 to 1000 nm and Suppressed IR Sensitivity

Product Details:

Place of Origin:	Japan
Model Number:	S1227-33BQ S1227-33BR

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

Non-cooled Silicon Photodiodes S1227-33BQ S1227-33BR Spectral Response Range 190 to 1000 nm and Suppressed IR Sensitivity

Description

Light-receiving Side:	2.4 × 2.4 Mm	Encapsulation:	Ceramics
Refrigeration:	Non-cooled	Reverse Voltage (max):	5 V
Spectral Response Range:	190 To 1000 Nm	Light Sensitivity (typical):	0.36 A/W
Highlight:	Non-cooled Silicon Photodiodes , Suppressed IR Silicon Photodiodes , S1227-33BQ Silicon Photodiodes

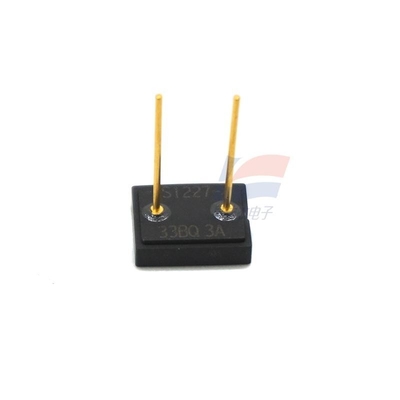

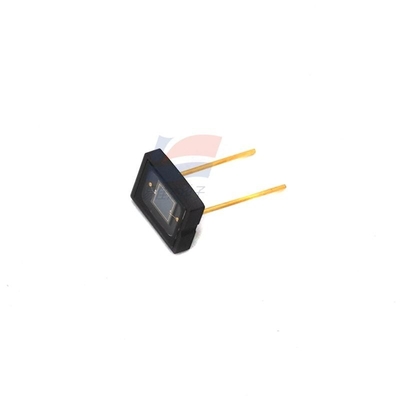

Silicon photodiodes S1227-33BQ

It is suitable for precise photometry in the ultraviolet to visible wavelength band; Suppresses infrared sensitivity

Features
- High UV sensitivity (quartz window type): QE = 75 % (λ = 200 nm)
- Suppressed IR sensitivity
- Low dark current

Noise equivalent power (typical)	2.5×10-15 W/Hz1/2
Junction Capacitance (typical)	160 pF
Rise Time (Typical)	0.5 μs
Dark current (max)	5 pA
Maximum Sensitivity Wavelength (Typical)	720 nm

Non-cooled Silicon Photodiodes S1227-33BQ S1227-33BR Spectral Response Range 190 to 1000 nm and Suppressed IR Sensitivity 0

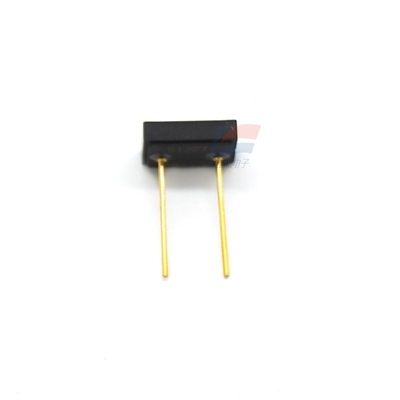

Silicon photodiodes S1227-33BR

It is suitable for precise photometry in the ultraviolet to visible wavelength band; Suppresses infrared sensitivity

Features
- Resin potting
type - Suppression of infrared sensitivity
- Low dark current

Light-receiving side	2.4 × 2.4 mm
Reverse voltage (max)	5 V
Spectral response range	340 to 1000 nm
Light sensitivity (typical)	0.43 A/W
Dark current (max)	5 pA
Rise Time (Typical)	0.5 μs

Non-cooled Silicon Photodiodes S1227-33BQ S1227-33BR Spectral Response Range 190 to 1000 nm and Suppressed IR Sensitivity 1
