Silicon Photodiodes S1227-66BQ S1227-66BR Suppressed IR Sensitivity

Large Image : Silicon Photodiodes S1227-66BQ S1227-66BR Suppressed IR Sensitivity

Product Details:

Place of Origin:	Japan
Model Number:	S1227-66BQ S1227-66BR

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

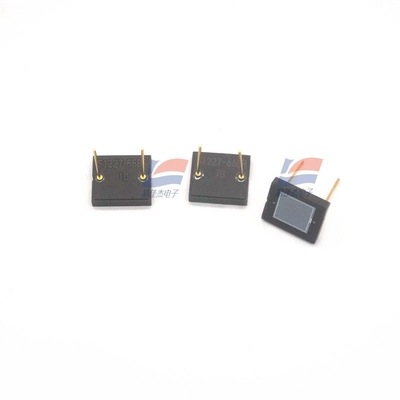

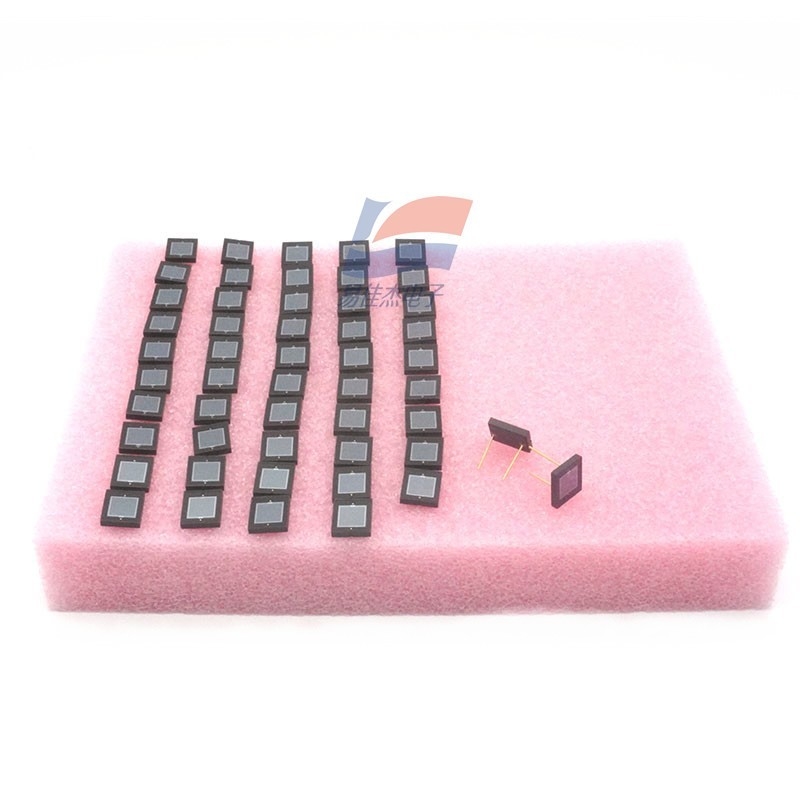

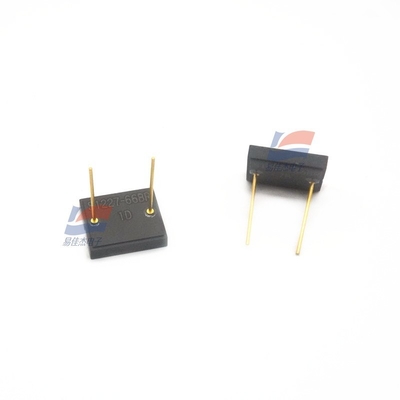

Silicon Photodiodes S1227-66BQ S1227-66BR Suppressed IR Sensitivity

Description

Light-receiving Side:	5.8 × 5.8 Mm	Encapsulation:	Ceramics
Refrigeration:	Non-cooled	Reverse Voltage (max):	5 V
Spectral Response Range:	190 To 1000 Nm	Light Sensitivity (typical):	0.36 A/W
Highlight:	S1227-66BQ Silicon Photodiodes , Suppressed IR Sensitivity Silicon Photodiodes , S1227-66BR Silicon Photodiodes

Silicon photodiodes S1227-66BQ

It is suitable for precise photometry in the ultraviolet to visible wavelength band; Suppresses infrared sensitivity

Features
- High UV sensitivity (quartz window type): QE = 75 % (λ = 200 nm)
- Suppressed IR sensitivity
- Low dark current

Noise equivalent power (typical)	5.0×10-15 W/Hz1/2
Junction Capacitance (typical)	950 pF
Rise Time (Typical)	2 μs
Dark current (max)	20 pA
Light sensitivity (typical)	0.36 A/W

Silicon Photodiodes S1227-66BQ S1227-66BR Suppressed IR Sensitivity 0

Silicon photodiodes S1227-66BR

It is suitable for precise photometry in the ultraviolet to visible wavelength band; Suppresses infrared sensitivity

Features
- Resin potting
type - Suppression of infrared sensitivity
- Low dark current

Light-receiving side	5.8 × 5.8 mm
encapsulation	ceramics
refrigeration	Non-cooled
Reverse voltage (max)	5 V
Spectral response range	340 to 1000 nm
Maximum Sensitivity Wavelength (Typical)	720 nm

Silicon Photodiodes S1227-66BQ S1227-66BR Suppressed IR Sensitivity 1
