Product Details:
|
| Light-receiving Side: | φ1.2 Mm | Encapsulation: | Metal |
|---|---|---|---|
| Package Category: | TO-18 | Refrigeration: | Non-cooled |
| Reverse Voltage (max): | 20 V | Dark Current (max): | 1000 PA |
| Highlight: | S5971 Silicon PIN Photodiode,Low Price Silicon PIN Photodiode,High Reliability Silicon PIN Photodiode |
||

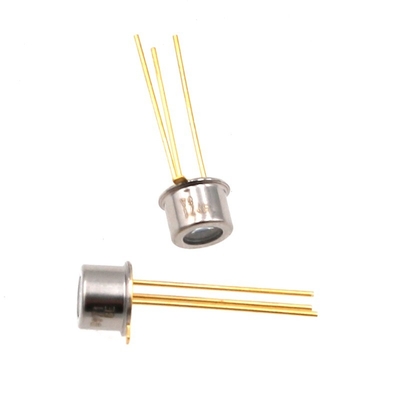

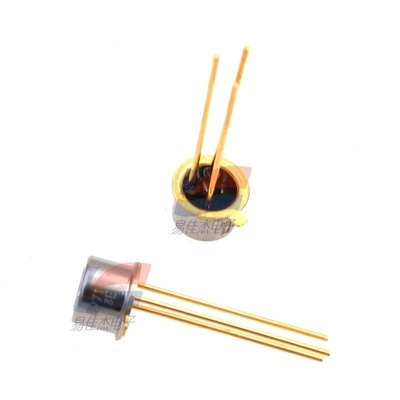

Silicon PIN photodiode S5971
The S5971 is a high-speed silicon PIN photodiode designed for visible to near-infrared light detection. The photodiode offers a wide wavelength range with a low bias voltage, making it suitable for optical communications and other high-speed photometry.
Features
- High-speed response: 100 MHz (VR=10 V)
- Low price
- High reliability
| Light sensitivity (typical) | 0.55 A/W |
| Dark current (max) | 1000 pA |
| Cut-off Frequency (typical) | 100 MHz |
| Junction Capacitance (typical) | 3 pF |
| Noise equivalent power (typical) | 7.4×10-15 W/Hz1/2 |
| Spectral response range | 320 to 1060 nm |
