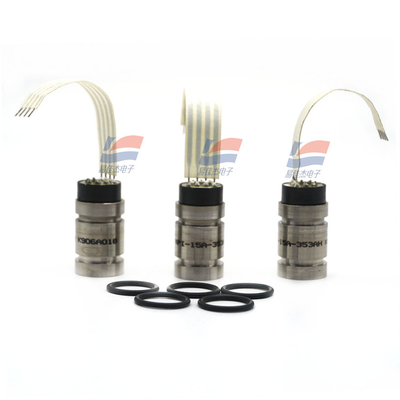

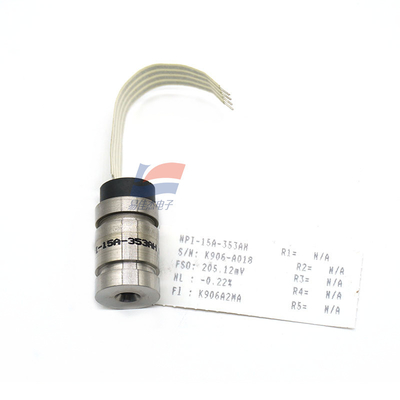

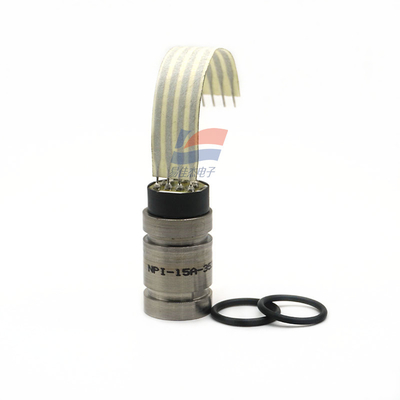

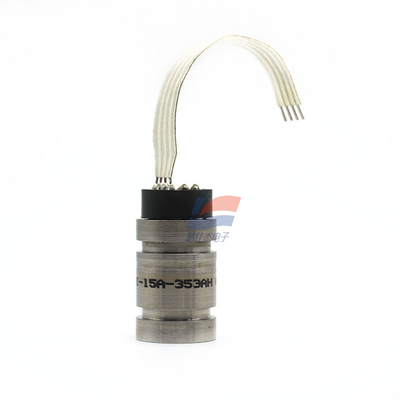

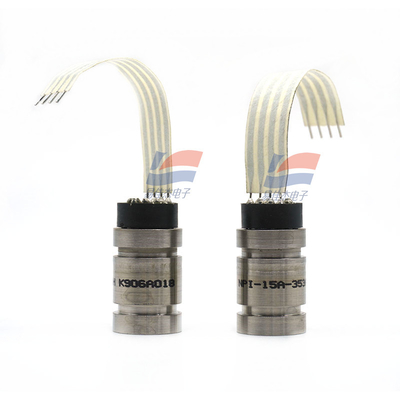

YJJ NPI-15A-353AH Solid-state Absolute Pressure 35MPa Oil-filled Core Pressure Sensor

Product Description:

NPI-15A-353AH Solid-state Absolute Pressure 35MPa Oil-filled Core Pressure Sensor

Features:

NPI-15 series current-driven, dielectric-isolated high-voltage sensors are designed to operate in harsh environments while featuring the highest sensitivity, linearity and hysteresis of silicon sensors. They adopt advanced Sensor technology, providing OEM users with the best price and performance. The piezoresistive sensor chip is installed in a cylindrical cavity filled with fluid and isolated from the measured medium through a stainless steel diaphragm and the main body. Like all NovaSensor silicon sensors, the NPI-15 series adopts SenStable? Processing technology, providing stability.

To compensate for the temperature effect, a complete resistor network is provided on the hybrid ceramic substrate. The Sensor design can minimize the temperature error to the greatest extent, thereby providing a 0.75% FSO offset error within the compensation range of 32°F to 158°F (0°C to 70°C).

The NovaSensor NPI-15VC series voltage-compensated and dielectric-isolated high-voltage sensors have the performance of current-compensated sensors and are very convenient to use voltage power supplies. Voltage compensation enables the sensor to be directly connected to the power supply, thereby eliminating the additional components required to build a constant current source. These sensors can achieve field interchangeability through calibrated 100 mV ± 1% FSO.

Like all NPI dielectric isolation sensors, they are designed to operate in harsh environments, but feature the sensitivity, linearity and hysteresis of silicon sensors. The piezoresistive sensor chip is installed in a cylindrical cavity filled with fluid and isolated from the measured medium through a stainless steel diaphragm and the main body. The NPI series adopts SenStable? Processing technology, providing output stability.

Application

Process control system

Hydraulic systems and valves

Biomedical instrument

Refrigeration and HVAC control

Household appliances and consumer electronic products

Ships and ship systems

Aircraft and avionics systems

Characteristics

Solid state, high reliability

High sensitivity, 200 mV typical FSO, current 1.0 mA

316L stainless steel, *** sensor design

Linearity 0.1% FSO (typical value)

Thermal accuracy 0.2% FSO (typical value)

Four standard ranges: 500 psi to 5,000 psi (34 bar to 345 bar)

Multiple standard configurations
