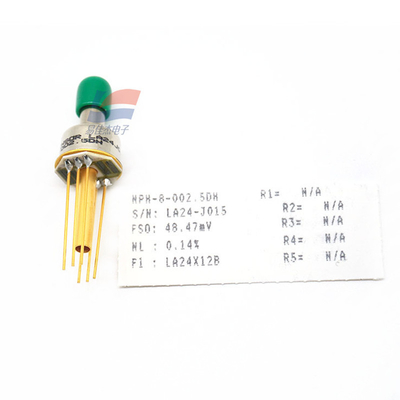

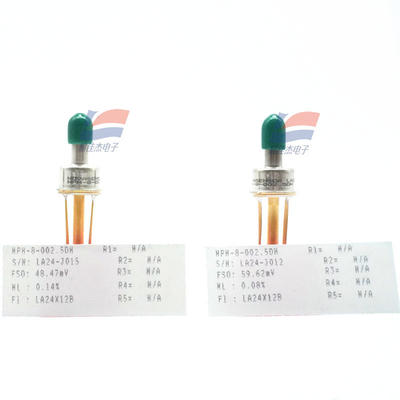

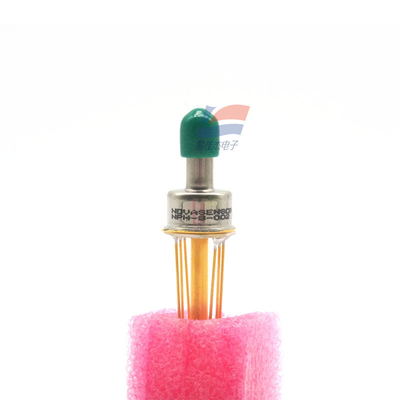

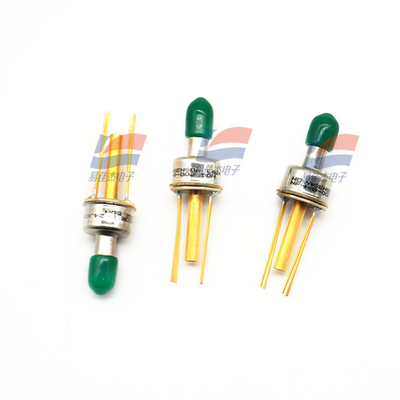

YJJ NPH-8-002.5DH Process Control Differential Pressure 2.5Kpa Solid-state Pressure Sensor

Product Description:

NPH-8-002.5DH Process Control Differential Pressure 2.5Kpa Solid-state Pressure Sensor

Features:

NPH series Solid-state Pressure Sensors (Medium and low pressure)

Integrated circuit silicon sensor chips are packaged in the standard TO-8 package suitable for PCB (Printed Circuit Board) installation.

VLSI and silicon micromachining technology are used to form the required Wheatstone bridge structure through ion implantation of silicon resistance strain, Wheatstone

The bridge structure is formed on the micro-mechanical silicon diaphragm. Like all NovaSensor silicon sensors, the NPH series has

The excellent output stability of SenTable technology. Constant current excitation makes the voltage output generated by the sensor linear with the pressure output

Relationship.

Users can set up a signal conditioning circuit to amplify the output signal of 100mV. This sensor is suitable for most non-corrosive gases and

Dry air.

The photolithography thick film resistance circuit on the hybrid ceramic substrate provides temperature compensation for the sensor.

Features:

Process control, P-to-l converter

Pneumatic control system

HVAC control

Biomedical instruments: infusion pumps, blood pressure monitors, respirators

Aviation: altimeter, barometer, cabin pressure sensor

Computer peripheral equipment

The high reliability of solid-state sensors

Standard TO-8 package, suitable for PCB installation

Low cost, small size

Absolute pressure, gauge pressure and differential pressure can be provided

Suitable for non-corrosive gases and dry air

Temperature error (low pressure) : Typical value 0.5%FSO

(Medium pressure) : Typical value 0.4%FSO

The ability to withstand overpressure five times the rated pressure

Standard range (low pressure) : 0-10 "H2O, 0-1psi, 0-5psi

(Medium pressure) : 0-15,0-30 and 0-100psi

Nonlinearity: Typical value 0.05%FSO

Standard 3/16 "diameter pressure interface

Ceramic substrate with temperature compensation resistor circuit

Application:

Process control, P-to-l converter

Pneumatic control system

HVAC control

Biomedical instruments: infusion pumps, blood pressure monitors, respirators

Aviation: altimeter, barometer, cabin pressure sensor

Computer peripheral equipment

NPH-8-700DH

NPH-8-030AH

NPH-8-002.5DH

NPH-8-007GH

NPH-8-002.5GH

NPH-8-030GH

NPH-8-007DH

Shenzhen Yijiajie Electronic Technology Co., Ltd. mainly serves OEM manufacturers in the sales of sensor products. In the field of sensing and control products, we provide product sales and technical support services in China for globally renowned manufacturers. We are also currently a professional supplier of sensing and control products in China and Hong Kong. The head office was founded in Hong Kong in 2002. The Shenzhen company is located at the intersection of Shennan Middle Road and Huaqiang North Road in Shenzhen. Meanwhile, the company has a large amount of spot inventory in Shenzhen and Hong Kong and can place orders directly from abroad with prompt delivery. We hope to cooperate with domestic related manufacturers to provide your company with high-quality and satisfactory products and make your products more competitive. We sincerely look forward to cooperating with you.

Specifications:
