Product Details:
|
| Heat Dissipation: | Non-cooling Type | Sensitivity Wavelength Range: | 0.9 To 1.7 μm |
|---|---|---|---|
| Maximum Sensitivity Wavelength (typical Value): | 1.55 μm | Dark Current (maximum Value): | 0.4 NA |
| Highlight: | Packaged InGaAs PIN Photodiode,YJJ G6854-01 PIN Photodiode,Spherical lens window PIN Photodiode |
||
Product Description:

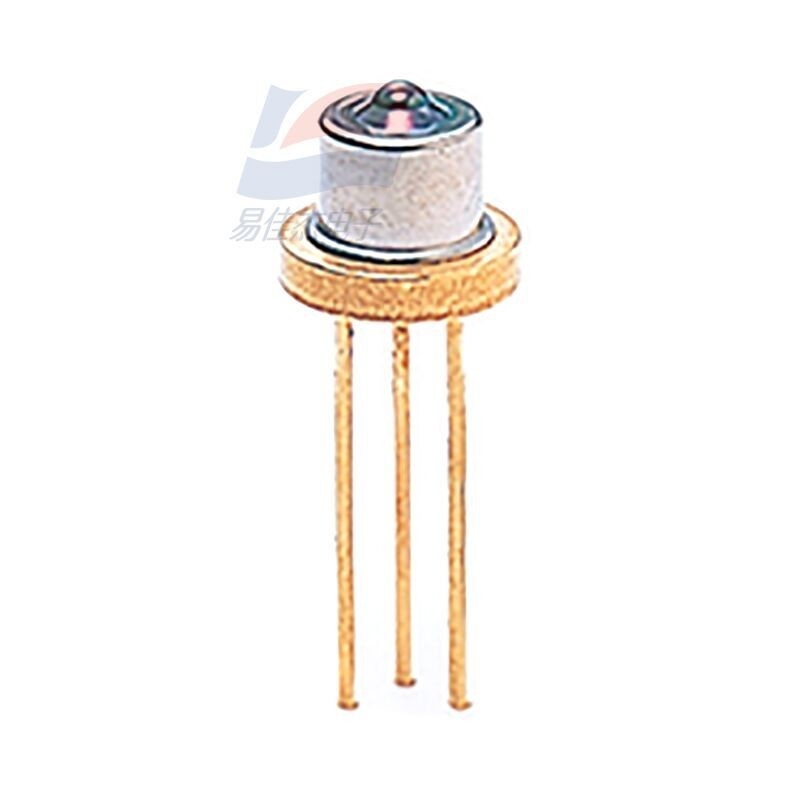

G6854-01 Spherical lens window Packaged InGaAs PIN Photodiode
Features:
Characteristics
- Easy optical axis calibration
- High-efficiency optical fiber coupling
-CD package
Packages that can be soldered by YAG lasers
A spherical lens window with an anti-reflection film can minimize the input of reflected light to the greatest extent
Detailed parameters
The illuminated surface is φ 0.08mm
Pixel number 1
Encapsulation metal
Packaging category TO-18 (with lenses)
Heat dissipation non-cooling type
The sensitivity wavelength range is 0.9 to 1.7 μm
The maximum sensitivity wavelength (typical value) is 1.55 μm
Photosensitive sensitivity (typical value) : 0.95 A/W
Dark current (maximum value) 0.4 nA
Cut-off frequency (typical value) : 2000 MHz
Junction capacitance (typical value) 1 pF
Noise equivalent power (typical value) : 2×10-15 W/Hz1/2
Typical values measuring conditions Ta = 25 ° C, unless otherwise specified, the sensitivity: lambda = lambda p, dark current: VR = 5 V, cutoff frequency: VR = 5 V, RL = 50 Ω, lambda = 1.3 mu m, - 3 dB, the junction capacitance: VR = 5 V, f = 1
Shenzhen Yijiajie Electronic Technology Co., Ltd. mainly serves OEM manufacturers in the sales of sensor products. In the field of sensing and control products, we provide product sales and technical support services in China for globally renowned manufacturers. We are also currently a professional supplier of sensing and control products in China and Hong Kong. The head office was founded in Hong Kong in 2002. The Shenzhen company is located at the intersection of Shennan Middle Road and Huaqiang North Road in Shenzhen. Meanwhile, the company has a large amount of spot inventory in Shenzhen and Hong Kong and can place orders directly from abroad with prompt delivery. We hope to cooperate with domestic related manufacturers to provide your company with high-quality and satisfactory products and make your products more competitive. We sincerely look forward to cooperating with you.
Specifications:
| Illuminated surface | φ 0.08mm |
| Pixel count | 1 |
| Packaging | Metal |
| Package category | TO-18 (with lens) |
