Product Details:
|
| Illuminated Surface: | 3.6 × 3.6mm | Packaging: | Metal |
|---|---|---|---|
| Packaging Category: | TO-5 | Refrigeration: | Non-cooled Type |
| Reverse Voltage (maximum Value): | 30V | Spectral Response Range: | 320 To 1100 Nm |
| Highlight: | Precise Photometric Determination Silicon PIN Photodiode,Visible Light Silicon PIN Photodiode,Near-infrared Band Silicon PIN Photodiode |
||
Product Description:

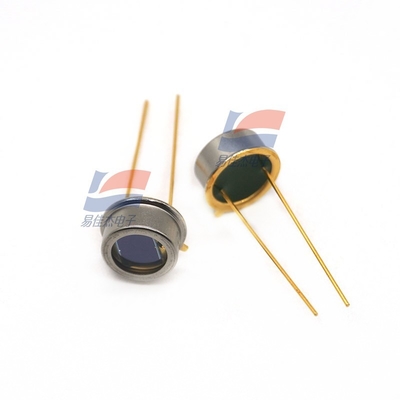

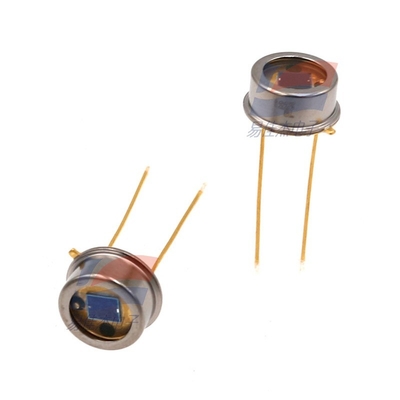

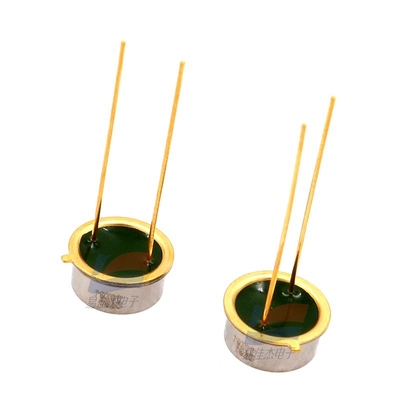

S1223 S1223-01 Silicon PIN Photodiode Is Used For Precise Photometric Determination In The Visible Light To Near-infrared Band
Features:
It is suitable for precise photometric determination in the visible light to near-infrared band
Characteristics
It has high sensitivity in the near-infrared band
High reliability
- High-speed response: fc = 20 MHz
Low capacitance
Detailed parameters
The illuminated surface is 3.6 × 3.6mm
Encapsulation metal
Package category TO-5
Refrigerated non-cooled type
Reverse voltage (maximum value) : 30 V
The spectral response range is 320 to 1100 nm
The maximum sensitivity wavelength (typical value) is 960 nm
Photosensitive sensitivity (typical value) : 0.52 A/W
Dark current (maximum value) 10,000 pA
Cut-off frequency (typical value) : 20 MHz
Junction capacitance (typical value) : 20 pF
Noise equivalent power (typical value) 1.3×10-14 W/Hz1/2
Measurement conditions: Ta = 25°C, typical values, photosensitive sensitivity: λ = 780 nm, dark current: VR = 20 V, cut-off frequency: VR = 20 V, junction capacitance: VR = 20 V, f = 1 MHz, noise equivalent power: VR = 20 V, λ = λp, unless otherwise specified
Shenzhen Yijiajie Electronic Technology Co., Ltd. mainly serves OEM manufacturers in the sales of sensor products. In the field of sensing and control products, we provide product sales and technical support services in China for globally renowned manufacturers. We are also currently a professional supplier of sensing and control products in China and Hong Kong. The head office was founded in Hong Kong in 2002. The Shenzhen company is located at the intersection of Shennan Middle Road and Huaqiang North Road in Shenzhen. Meanwhile, the company has a large amount of spot inventory in Shenzhen and Hong Kong and can place orders directly from abroad with prompt delivery. We hope to cooperate with domestic related manufacturers to provide your company with high-quality and satisfactory products and make your products more competitive. We sincerely look forward to cooperating with you.
Specifications:
| Maximum sensitivity wavelength (typical value) | 960 nm |
| Photosensitive sensitivity (typical value) | 0.52 A/W |
| Dark current (maximum value) | 10,000 pA |
| Cut-off frequency (typical value) | 20 MHz |
