Product Details:
|
| Photosensitive Sensitivity: | 0.3 A/W | Dark Current: | 10 PA |
|---|---|---|---|
| Rise Time: | 2.5 μs | Junction Capacitance: | 700 PF |
| Highlight: | Near-infrared Band Silicon Photodiode,Visible Light Silicon Photodiode,YJJ S16767-01MS Silicon Photodiode |
||
Product Description:

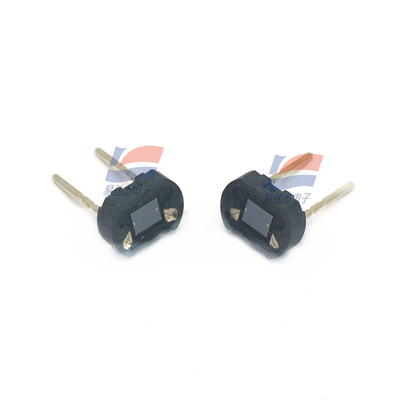

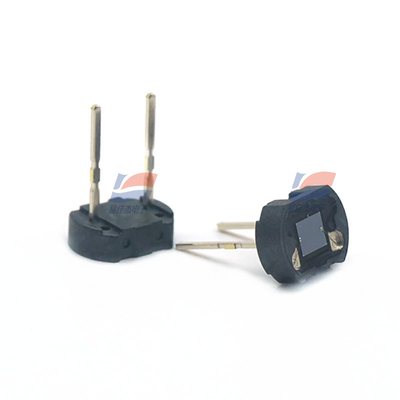

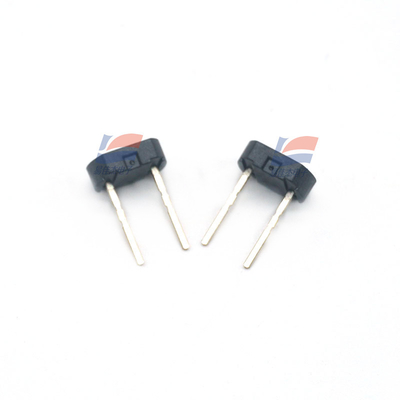

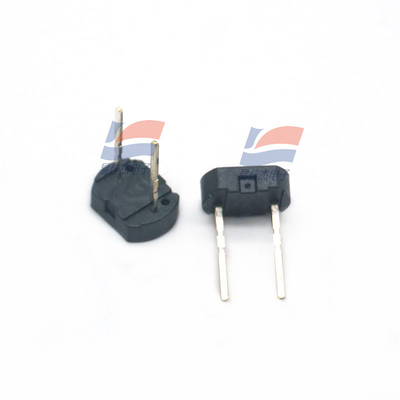

S16767-01MS Silicon Photodiode is Used in the Visible Light to Near-infrared Band
Features:
Low dark current, premolded packages
These are premolded package photodiodes that offer low dark current. There is little stray light incident from the side andback of the package to the photosensitive area, and they can measure from low to high ilumination with high accuracy.
Features
S16838-01MS: For visible rangeS16838/S16840-02MS: For visible to IR rangeS16765-01MS: For visible to near IR range
Applications
>Exposure meters
>Illuminometers
>Copiers
>Display light contro!>Optical switches
Structure /Absolute maximum ratings
Type no.
S16765-01MSS16838-01MS
S16838-02MS
S16840-02MS
Package
Plastic
Window material
Silicone resinVisual-compensation filter
Silicone resin
Photosensitivearea size
(mm)
2.8 x 2.4
1.3 x 1.3
StoragetemperatureTstg1C
Absolute maximum ratings
ReversevoltageVR max(V)
OperatingtemperatureTopr0C
10
-10 to +60*1
-20 to +70*1
*1: No dew condensation
When there is a temperature difference between a product and the surrounding area in high humiditv environments, dew condensationmay occur on the product surface. Dew condensation on the product may cause deterioration in characteristics and reliability.Note: Exceeding the absolute maximum ratings even momentarily may cause a drop in product quality, Always be sure to use the
product within the absolute maximum ratings.
Shenzhen Yijiajie Electronic Technology Co., Ltd. mainly serves OEM manufacturers in the sales of sensor products. In the field of sensing and control products, we provide product sales and technical support services in China for globally renowned manufacturers. We are also currently a professional supplier of sensing and control products in China and Hong Kong. The head office was founded in Hong Kong in 2002. The Shenzhen company is located at the intersection of Shennan Middle Road and Huaqiang North Road in Shenzhen. Meanwhile, the company has a large amount of spot inventory in Shenzhen and Hong Kong and can place orders directly from abroad with prompt delivery. We hope to cooperate with domestic related manufacturers to provide your company with high-quality and satisfactory products and make your products more competitive. We sincerely look forward to cooperating with you.
Specifications:
| Package | Plastic |
| Window material | Silicone resin |
| Photosensitive area size(mm) | 2.8 x 2.4 |
| Reverse voltageVR maX | 10 |
