Product Details:
|
| Photosensitive Sensitivity: | 0.3 A/W | Dark Current: | 10 PA |
|---|---|---|---|
| Rise Time: | 2.5 μs | Junction Capacitance: | 700 PF |
| Highlight: | YJJ S16765-01MS Silicon Photodiode,Near-infrared Band Silicon Photodiode,Visible Light Silicon Photodiode |
||
Product Description:

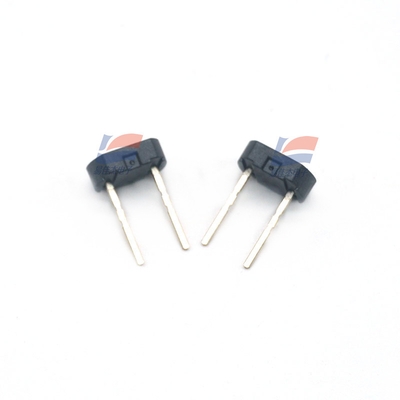

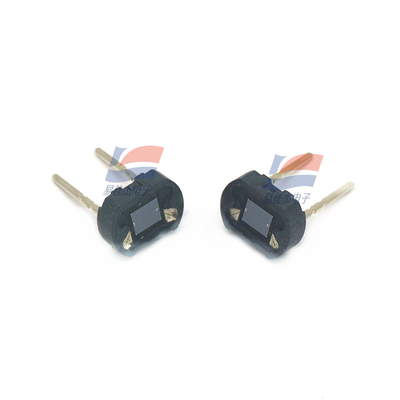

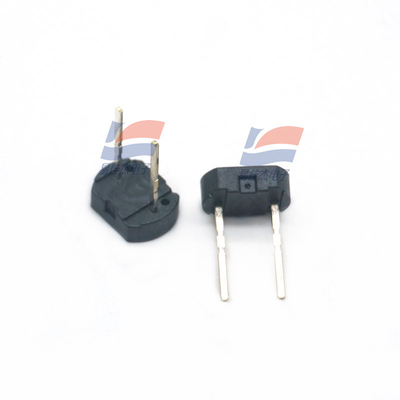

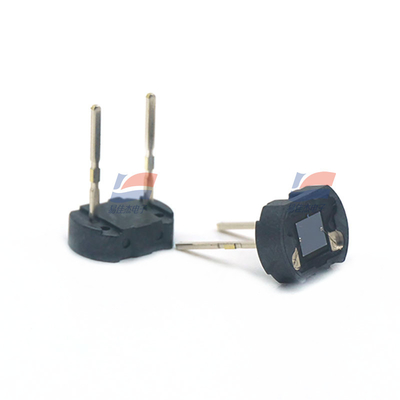

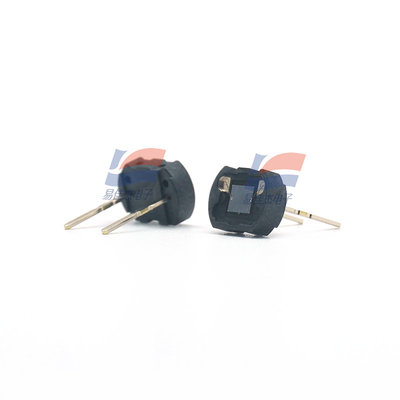

S16765-01MS Silicon Photodiode is Used in the Visible Light to Near-infrared Band
Features:
Low dark current, pre-molded packaging
These photodiodes provide low dark current for high-precision measurement from low illumination to high illumination. Pre-molded packaging is designed to block stray light from the sides and back of the package to the light-receiving surface.
Characteristics
-S16838-01MS: Applicable to the visible light band
-S16838 /S16840-02MS: Applicable to the visible light to infrared band
-S16765-01MS: Applicable to the visible light to near-infrared band
Detailed parameters
The illuminated surface is 2.8 × 2.4 mm
Encapsulation plastic
Package category with filter
Refrigerated non-cooled type
The spectral response range is 320 to 730 nm
The maximum sensitivity wavelength (typical value) is 560 nm
Photosensitive sensitivity (typical value) 0.3 A/W
Dark current (maximum value) 10 pA
Rise time (typical value) 2.5 μs
Junction capacitance (typical value) : 700 pF
Measurement conditions: Ta = 25°C, typical values, photosensitive sensitivity: λ = λp, dark current: VR = 1 V, junction capacitance: VR = 0 V, f = 10 kHz, unless otherwise specified
Shenzhen Yijiajie Electronic Technology Co., Ltd. mainly serves OEM manufacturers in the sales of sensor products. In the field of sensing and control products, we provide product sales and technical support services in China for globally renowned manufacturers. We are also currently a professional supplier of sensing and control products in China and Hong Kong. The head office was founded in Hong Kong in 2002. The Shenzhen company is located at the intersection of Shennan Middle Road and Huaqiang North Road in Shenzhen. Meanwhile, the company has a large amount of spot inventory in Shenzhen and Hong Kong and can place orders directly from abroad with prompt delivery. We hope to cooperate with domestic related manufacturers to provide your company with high-quality and satisfactory products and make your products more competitive. We sincerely look forward to cooperating with you.
Specifications:
| Package | Plastic |
| Window material | Silicone resin |
| Photosensitive area size(mm) | 2.8 x 2.4 |
| Reverse voltageVR maX | 10 |
