Product Details:
|
| Photosensitive Area: | 2.8 × 2.4 Mm | Packaging: | Plastic |
|---|---|---|---|
| Cooling: | Uncooled | Spectral Response Range: | 320 To 1000 Nm |
| Highlight: | Premolded Package Silicon Photodiode,Low Dark Current Silicon Photodiode,S16767-01MS Silicon Photodiode |
||

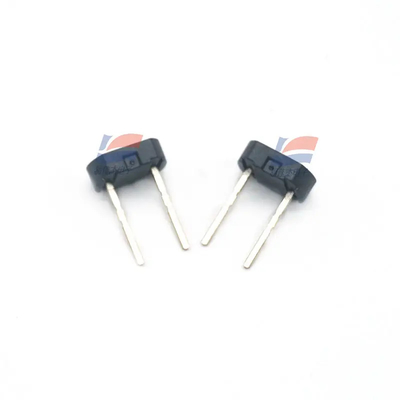

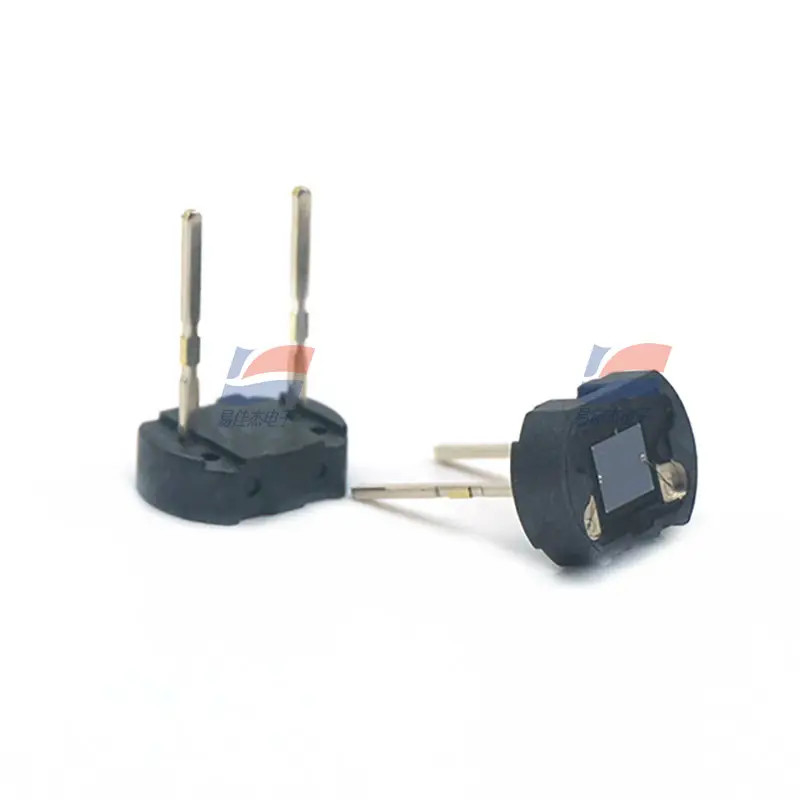

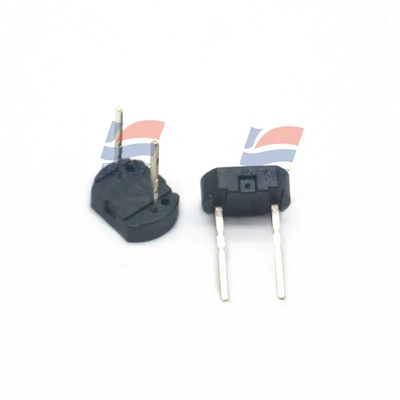

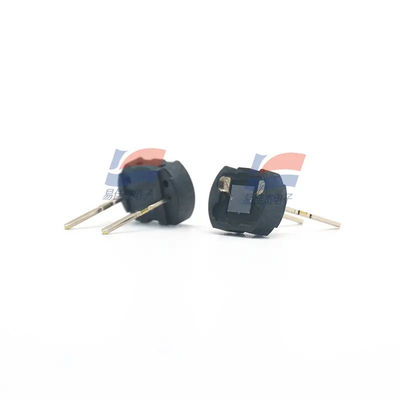

S16767-01MS Silicon Photodiode Low Dark Current For Visible Range Premolded Package
Low Dark Current, Pre-Molded Package
These are photodiodes that offer low dark current to measure low to high ilumination with high accuracy. The premolded
package is designed to block stray light from the side and back of the package to reaching the photosensitive area.
Applications:
1. Exposure meters
2. Illuminometers
3. Copiers
4. Display light control
5. Optical switches
| Window material | Silicone resin |
| Photosensitive area size | 2.8*2.4mm |
| Reverse voltage | 10V |
| Operating temperature | -10 to 60℃ |
| Storage temperature | -20 to 70℃ |
