Product Details:
|
| Light-receiving Side: | φ5.0 Mm | Encapsulation: | Metal |
|---|---|---|---|
| Package Category: | TO-8 | Refrigeration: | Non-cooled |
| Reverse Voltage (max): | 50 V | Dark Current (max): | 10000 PA |
| Highlight: | Space Light Transmission Silicon PIN Photodiode,Silicon PIN Photodiode S3071,Silicon PIN Photodiode S3072 |
||

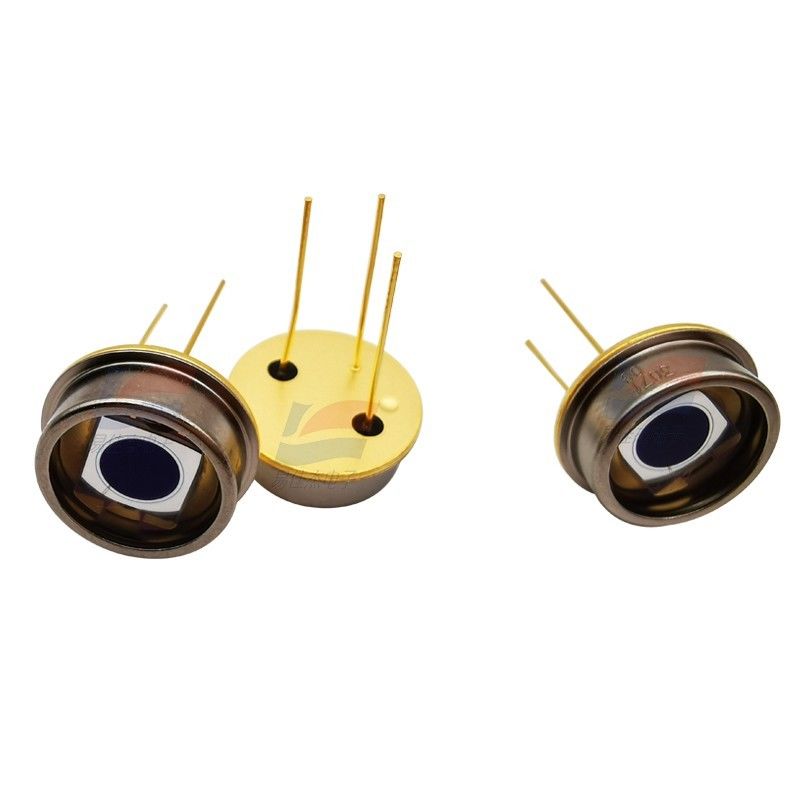

Silicon PIN Photodiode S3071 S3072 For Space Light Transmission (free-space optics)
Large-area, high-speed silicon PIN photodiodes

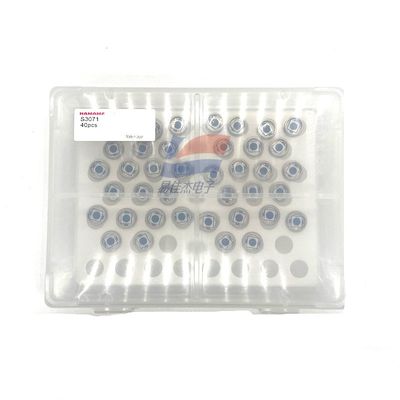

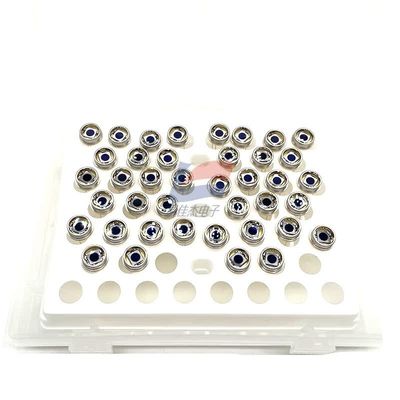

The S3071 is a silicon PIN photodiode with a relatively large photosensitive surface, but provides an excellent frequency response at 40 MHz. This photodiode is suitable for space light transmission (free-space optics) and high-speed pulsed light detection.
Features:
- Photoreceptor Size: φ5.0 mm
- Cut-off frequency: 40 MHz (VR=24 V)
- High reliability: TO-8 metal package
| Maximum Sensitivity Wavelength (Typical) | 920 nm |
| Light sensitivity (typical) | 0.54 A/W |
| Dark current (max) | 10000 pA |
| Cut-off Frequency (typical) | 40 MHz |
| Junction Capacitance (typical) | 18 pF |
| Noise equivalent power (typical) | 2.1×10-14 W/Hz1/2 |
Silicon PIN photodiode S3072
The S3072 is a silicon PIN photodiode with a relatively large photoreceptor area, but provides an excellent frequency response at 45 MHz. This photodiode is suitable for space light transmission (free-space optics) and high-speed pulsed light detection.
Features
- Photosensitive surface size: φ3.0 mm
- Cut-off frequency: 45 MHz (VR=24 V)
- High reliability: TO-5 metal package
| Light-receiving side | φ3.0 mm |
| encapsulation | metal |
| Package Category | TO-5 |
| refrigeration | Non-cooled |
| Reverse voltage (max) | 50 V |
| Spectral response range | 320 to 1060 nm |
| Maximum Sensitivity Wavelength (Typical) | 920 nm |
| Light sensitivity (typical) | 0.54 A/W |
