Product Details:
|
| Light-receiving Side: | 3.6 × 3.6 Mm | Encapsulation: | Metal |
|---|---|---|---|
| Package Category: | TO-5 With Filter | Refrigeration: | Non-cooled |
| Reverse Voltage (max): | 5 V | Rise Time (Typical): | 1 μs |
| Highlight: | S12742-254 Silicon Photodiode,Interference Filter Silicon Photodiode,Silicon Photodiodes Interference Filter |
||

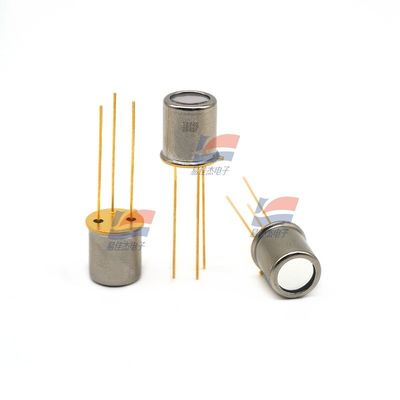

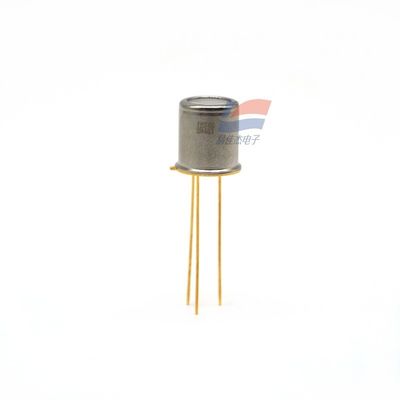

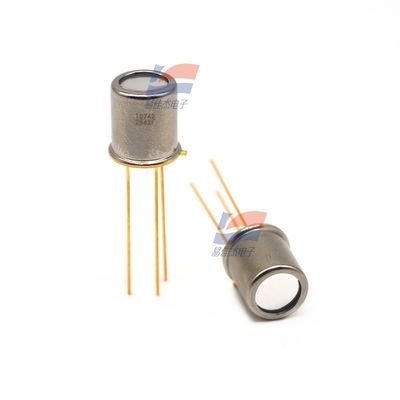

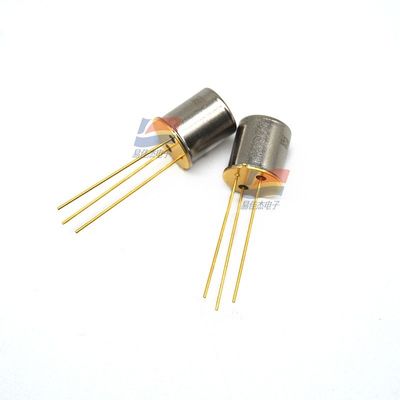

Silicon photodiodes S12742-254
The window of the S12742-254 uses an interference filter and is only sensitive to monochromatic light. The spectral sensitivity characteristic width is extremely narrow at 10 nm (FWHM), so photometric measurements can be made accurately without being affected by stray light. The maximum sensitivity wavelength is 254 nm typical. The S12742-254 can be customized to support other maximum sensitivity wavelengths, e.g., 340 nm, 560 nm.
Features
- Silicon photodiode with interference filter
- Monochromatic light (254 nm) detection
| Spectral response range | 252 to 256 nm |
| Maximum Sensitivity Wavelength (Typical) | 254 nm |
| Light sensitivity (typical) | 0.018 A/W |
| Dark current (max) | 25 pA |
| Rise Time (Typical) | 1 μs |
| Junction Capacitance (typical) | 500 pF |
| Noise equivalent power (typical) | 9.1×10-14 W/Hz1/2 |
| Package Category | TO-5 with filter |
