Product Details:
|
| Electrode Material: | Ni | Weight: | 2.5 G |
|---|---|---|---|
| [Maximum Rating]: | 30 MA | Sensitivity Is Typical: | 10000 Min-1 |
| Highlight: | Easy Installation UVTRON R9533,High Sensitivity UVTRON R9533,Wide Field of View UVTRON R9533 |
||

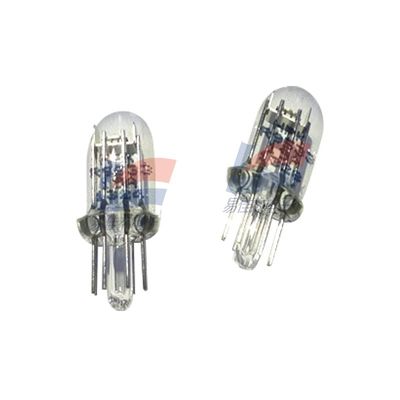

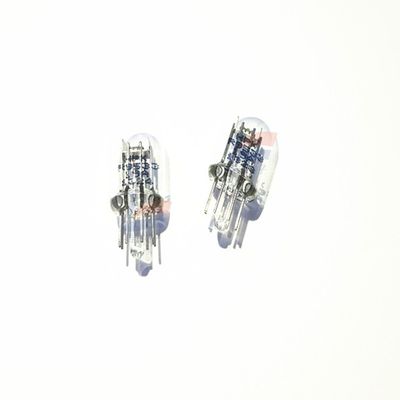

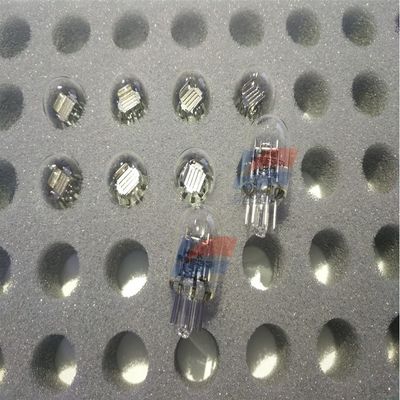

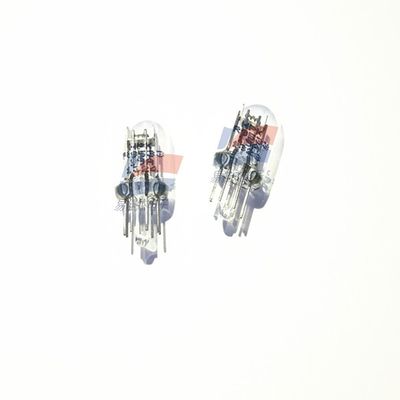

UVTRON R9533
The R9533 is an end-window type (UV light enters from the top of the bulb) and can be easily installed in most devices with high sensitivity and a wide field of view.
| Spectral Sensitivity Characteristics (Short) | 185 nm |
| Spectral Sensitivity Characteristics (Long) | 260 nm |
| [Maximum Rating] Supply Voltage (DC) | 400 V |
| [Maximum Rating] The average discharge current | 1 mA |
| Discharge start-up voltage (DC) | 280 V |
| Discharge Sustain Voltage (DC) | 230 V |
