Product Details:
|
| Active Area Size: | 2.4x2.8 | Effective Active Area: | 6.6 |
|---|---|---|---|
| Reverse Voltage VR Max.: | 10 | Operating Temperature Topr: | -10 To +60 |
| Storage Temperature Topr: | -20 To +70 | Temp. Coefficient Of LD TCID: | 1.12 |
| Highlight: | Ceramic package photodiode,S1133-14 photodiode,S1133-01 photodiode |
||

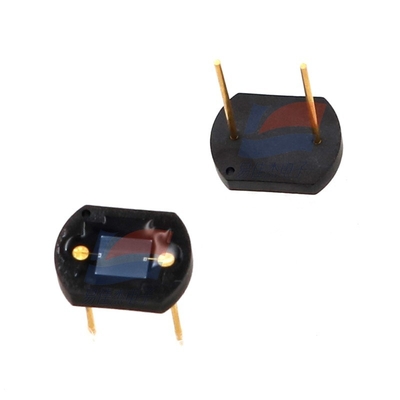

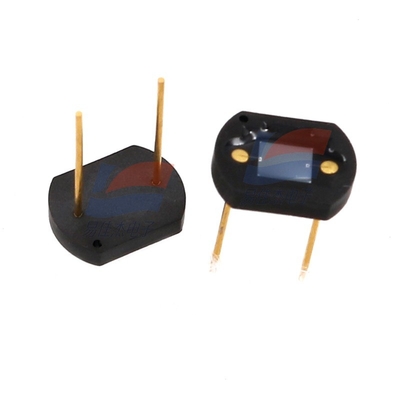

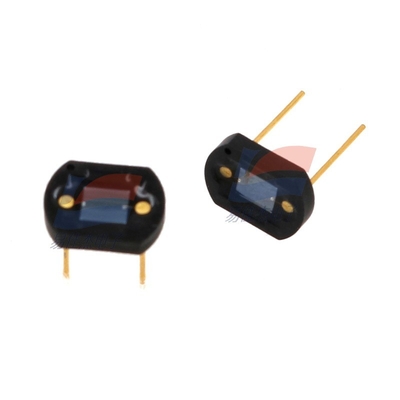

S1133 S1133-14 S1133-01 Si photodiode
S1087/S1133 series are ceramic package photodiodes that offer low dark current. Ceramic package used is light-impervious, so no stray light can
reach the active area from the side or backside. This allows reliable optical measurements in the visible to near infrared range, over a wide
dynamic range from low light levels to high light levels.
Features:
S1087, S1133 : For visible range
S1087-01, S1133-01: For visible to IR range
S1133-14 : For visible to near IR range
Applications:
Exposure meter
Illuminometer
Camera auto exposure
Stroboscope light control
Copier
Display light control
Optical switch
S1133:
| Spectral response range | 320 to 730 nm |
| Peak Sensitivity wavelength | 560 nm |
| Photo sensitivity S | 0.3 |
| Infrared sensitivity ratio | 10 |
| Temp. coefficient of lD TCID | 1.12 |
| Rise time tr VR=O V RL=1 kQ | 2.5 |
S1133-14:
| Spectral response range | 320 to 1000 nm |
| Peak Sensitivity wavelength | 720 nm |
| Photo sensitivity S | 0.4 |
| Infrared sensitivity ratio | 10 |
| Temp. coefficient of lD TCID | 0.1 |
| Rise time tr VR=O V RL=1 kQ | 0.5 |
S1133-01:
| Spectral response range | 320 to 1100 nm |
| Peak Sensitivity wavelength | 960 nm |
| Photo sensitivity S | 0.58 |
| Infrared sensitivity ratio | 10 |
| Temp. coefficient of lD TCID | 0.1 |
| Rise time tr VR=O V RL=1 kQ | 2.5 |
