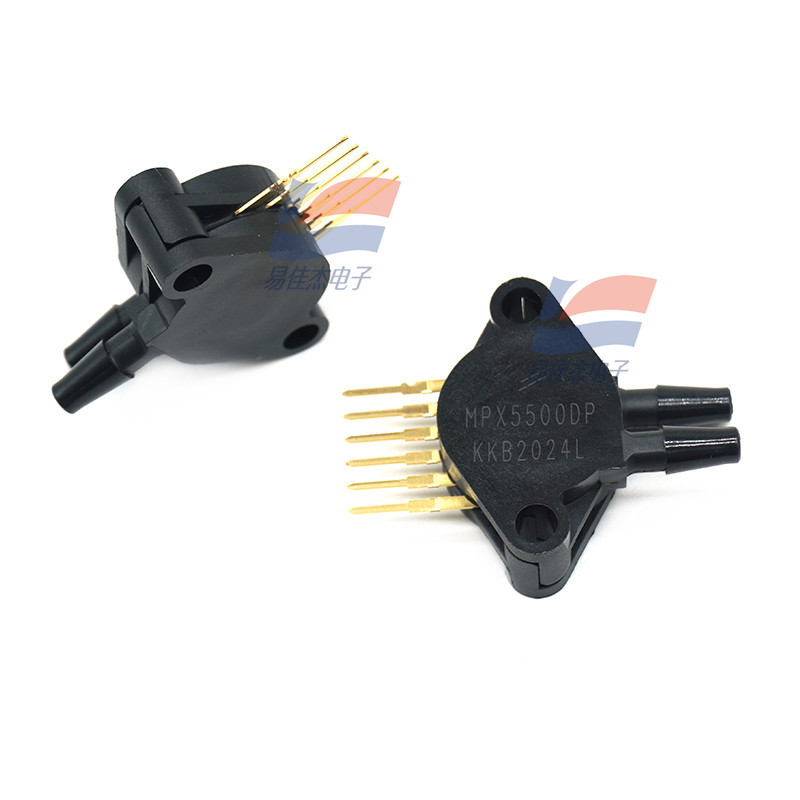

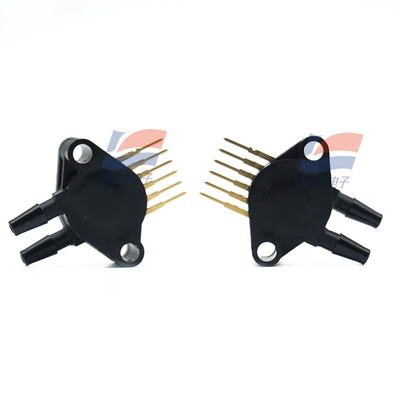

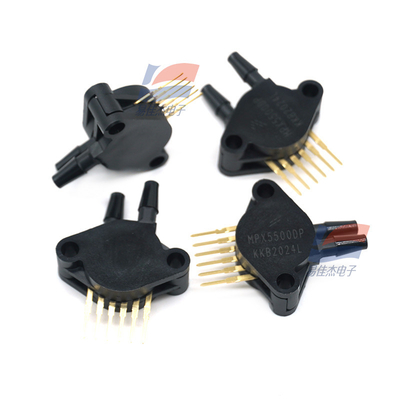

YJJ MPX5500DP Single-chip Silicon Pressure Sensor Epoxy Monomer Element Detector

Product Description:

MPX5500DP Single-chip Silicon Pressure Sensor Epoxy Monomer Element Detector

Features:

High-range differential pressure/gauge pressure sensor measures the pressure difference between the sources applied to both sides of the sensor (pressure difference) and the atmospheric pressure (measurement). Pressure reading type = Minimum pressure difference pressure reading =0kPa Maximum pressure reading =500kPa Accuracy =±2.5% Output type = Diameter of analog measurement = Air analog output =4.7 V Electrical connection =PCB installation response time =1 ms Supply voltage =4.75-5.25 V dc

Attribute

Numerical value

Sensor type: Differential pressure sensor

Installation type PCB

Maximum operating temperature: +125 °C

Maximum output voltage: 4.7V

Minimum operating temperature: -40 °C

Product type: Board computer interface pressure sensor

RoHS:

Pressure type: Differential

Working pressure: 72.5 psi

Accuracy: 2.5%

Output type: Analog

Installation style: Through Hole

Working power supply voltage: 5 V

Port type: Dual Axial Barbed

Packaging/Box: Unibody-6

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 125 ° C

Series: MPX5500

Packaging: Tray

Trademark: NXP Semiconductors

Working power supply current: 7 mA

Output voltage: 4.7V

Port size: 4.93mm

Product type: Board Mount Pressure Sensors

100

Subcategory: Sensors

Power supply voltage - Maximum: 5.25V

Power supply voltage - minimum: 4.75V

Part number alias: 935319243117

Unit weight: 5.241g
