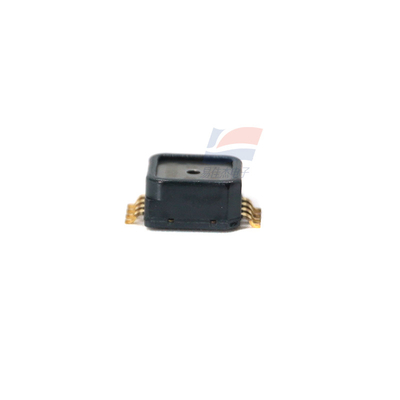

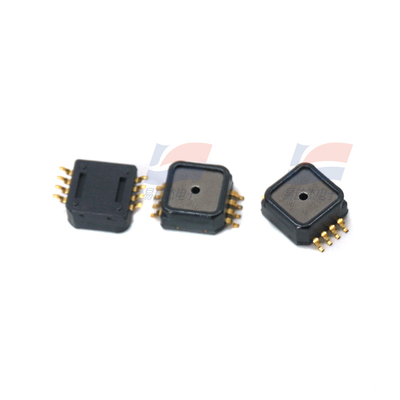

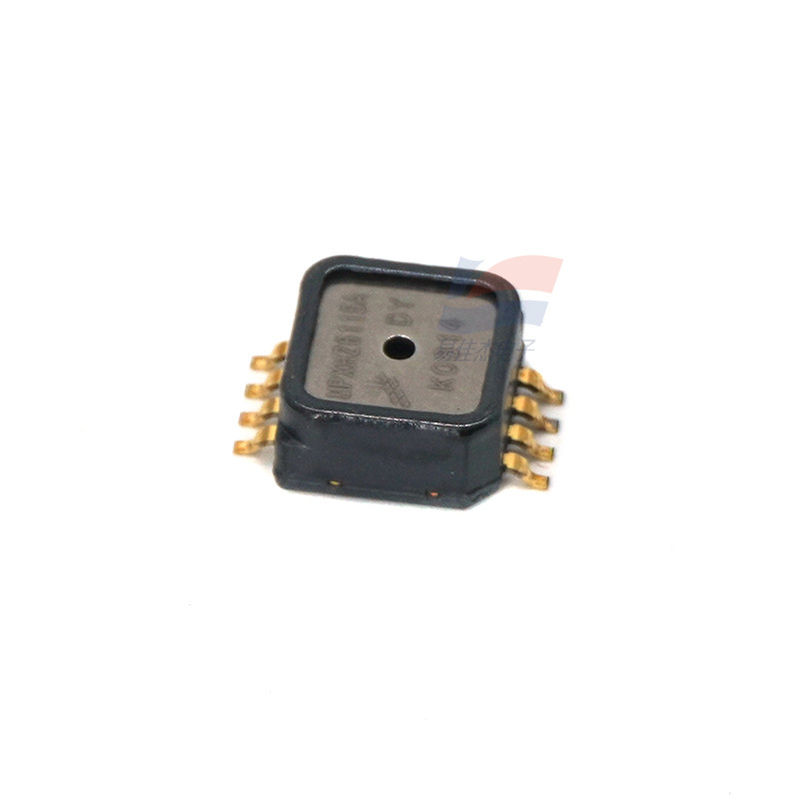

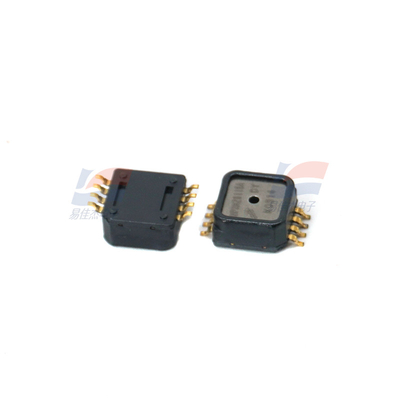

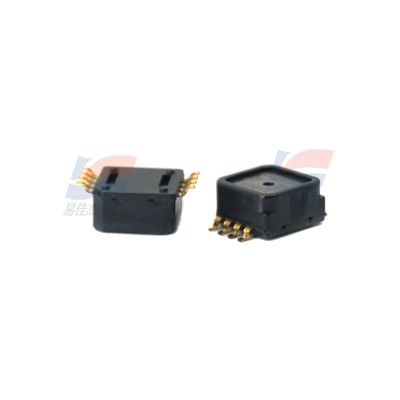

YJJ MPXHZ6115A6U Meteorological Reporting Equipment Absolute Pressure 115kpa Pressure Sensor

Product Description:

MPXHZ6115A6U Meteorological Reporting Equipment Absolute Pressure 115kpa Pressure Sensor

Features:

MPx6115 series sensors are single-chip silicon pressure sensors with signal regulation.

Integrating on-chip technology, bipolar operational amplifier circuits and thin-film resistor networks, it can provide high-level signals and temperature-compensated power. Combining advanced micro-mechanical technology, thin-film metallization and bipolar semiconductor processes, it can provide precise high-level analog output signals proportional to the applied pressure.

With its compact size and high reliability of on-chip integration, the MPxx6115 pressure sensor has become a natural and cost-effective choice for system designers

Characteristics

The accuracy under high-temperature conditions has been improved

Durable thermoplastic (PPS) surface mount

The temperature compensation range is from -40°C to +125°C

Applicable to systems based on microprocessors or microcontrollers

The error rate within the range of 0℃ to 85℃ is 1.5%

Resistant to high humidity and common substances in vehicles

It is available in two specifications: small and ultra-small packages

Target application

Flying altimeter

Industrial control

Engine control

Manifold pressure (MAP

Meteorological station

Meteorological reporting equipment

Vacuum pump monitoring

Brake booster monitoring

Data list: MPXAZ6115A, MPXHZ6115A Series

Standard packaging: 40

Category: Sensor, Converter

Family: Stress

Series: MPXAZ6115

Pressure type:

Working pressure: 2.2-16.7 PSI

Port size: Male type, 1/8" (3.175mm) tube type

Output: 0-4.8V

Accuracy: -

Power supply voltage: 4.75V to 5.25V

Termination type: PCB

Operating temperature: -40°C to 125°C

Package/Shell: 8-SMD, top port

Pressure type: Absolute

Working pressure: 15 kPa to 115 kPa

Accuracy: 1.5%

Output type: Analog

Installation style: SMD/SMT

Working power supply voltage: 4.75V to 5.25V

Port type: No Port

Packaging/Box: SOP-8

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 125 ° C

Series: MPXx6115

Encapsulation: Reel

Trademark: NXP Semiconductors

Working power supply current: 6 mA

Output voltage: 4.633V to 4.768

Product type: Board Mount Pressure Sensors

1000

Subcategory: Sensors

Power supply voltage - Maximum: 5.25V

Power supply voltage - minimum: 4.75V

Part number alias: 935324163128

Unit weight: 374.700 mg
