Product Details:
|
| Working Pressure: | 20 KPa To 100 KPa | Working Power Supply Voltage: | 10 V |
|---|---|---|---|
| Port Type: | Single Axial Barbless | Packaging/Box: | M-PAK-5 |
| Minimum Operating Temperature: | -40 ° C | Maximum Operating Temperature: | + 125 ° C |
| Highlight: | MPXM2102AS Pressure Gauge Detector,Board-computer Interface Pressure Sensor,Board-computer Interface Pressure Gauge Detector |
||
Product Description:

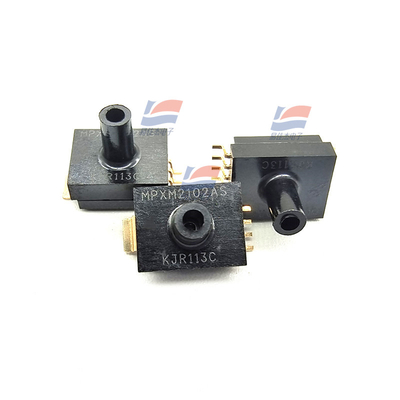

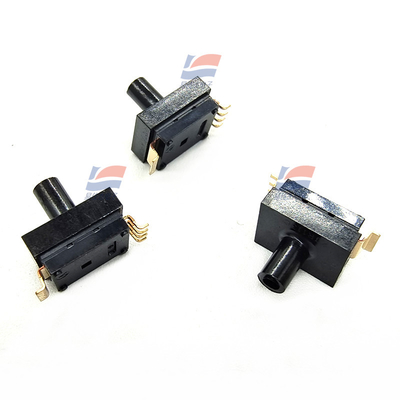

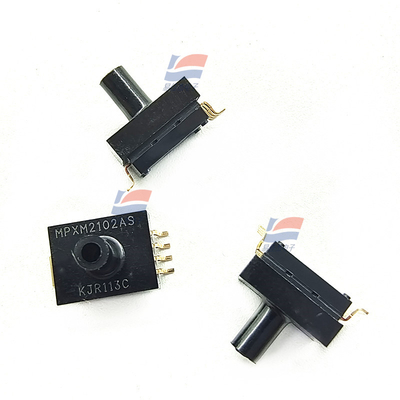

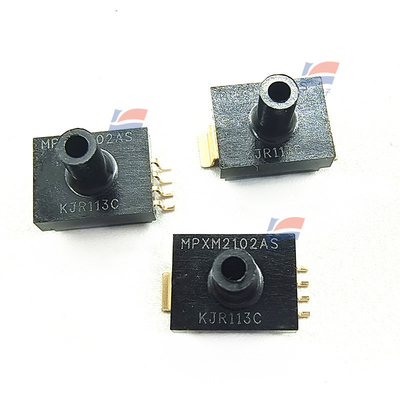

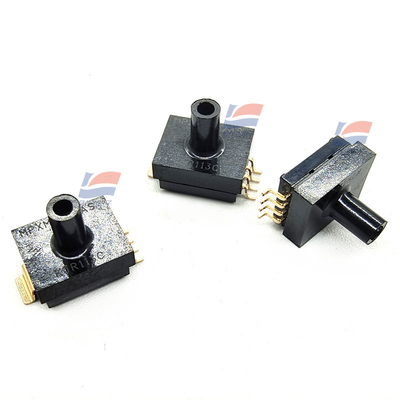

MPXM2102AS Board-computer Interface Pressure Sensor Is Used In Pressure Gauge Detectors
Features:
MPX2102 MPXV2102G/MPXM2102 series piezoresistive silicon pressure sensor for Medical and industrial control applications.
It provides a very linear voltage output, which is proportional to the applied pressure
Strain gauges and thin-film resistance networks were integrated on single-chip silicon wafers
The range, offset calibration and temperature compensation are achieved through the laser calibration chip
Product type: Board computer interface pressure sensor
RoHS:
REACH - SVHC:
Pressure type: Absolute
Working pressure: 20 kPa to 100 kPa
Accuracy: 0.5%
Output type: Analog
Installation style: SMD/SMT
Working power supply voltage: 10 V
Port type: Single Axial Barbless
Packaging/Box: M-PAK-5
Minimum operating temperature: -40 ° C
Maximum operating temperature: + 125 ° C
Series: MPXx2102
Packaging: Tube
Trademark: NXP Semiconductors
Working power supply current: 6 mA
Port size: 2.9mm
Product type: Board Mount Pressure Sensors
60
Subcategory: Sensors
Power supply voltage - Maximum: 16 V
Power supply voltage - minimum: 1 V
Part number alias: 935321201174
Unit weight: 527.800 mg
Specifications:
| Working pressure | 20 kPa to 100 kPa |
| Accuracy | 0.5% |
| Output type | Analog |
| Installation style | SMD/SMT |
