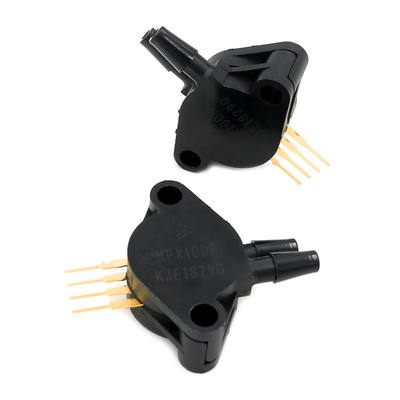

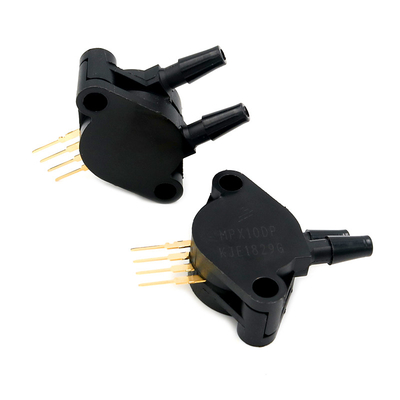

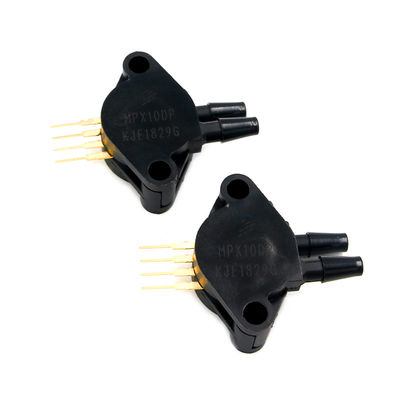

YJJ MPX2010DP MPX10DP 10KPA Board-machine Interface Pressure Sensor Is Used For Engine And Suspension Control

Product Description:

MPX2010DP MPX10DP 10KPA Board-machine Interface Pressure Sensor Is Used For Engine And Suspension Control

Features:

A new type of single-chip silicon pressure sensor. These sensors integrate micro-mechanical technology, thin-film metallization and bipolar processes, and can provide high-level analog output signals proportional to the applied pressure.

Characteristics

The temperature compensation range is from 10° C to 60℃

Strain gauge surface mount (SMT) or through-hole (DIP) configurations are available

Durable thermoplastic (PPS) packaging

Designed for the home appliance, consumer electronics, and industrial control markets

The improved axial port is suitable for industrial-grade pipes

The error rate of 0 to 100 mm H2O within the temperature range of +10 to +60℃ is 1.5%, with an automatic zero adjustment function

Differential pressure/gauge pressure, below 115 kPa

We offer a wide range of medium-range pressure sensors for measuring the difference (pressure difference) between the pressure sources applied on both sides of the sensor, or the difference between the source pressure and the atmospheric pressure (gauge pressure).

Product type: Board computer interface pressure sensor

RoHS:

Pressure type: Differential

Working pressure: 10 kPa

Accuracy: 1%

Output type: Analog

Installation style: Through Hole

Working power supply voltage: 10 V

Port type: Dual Axial Barbed

Packaging/Box: Unibody-4

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 125 ° C

Series: MPXx2010

Packaging: Tray

Trademark: NXP Semiconductors

Working power supply current: 6 mA

Product type: Board Mount Pressure Sensors

100

Subcategory: Sensors

Power supply voltage - Maximum: 16 V

Power supply voltage - minimum: 1 V

Part number alias: 935325328117

Unit weight: 5.058 g
