Product Details:
|
| Packaging: Unibody: | 6-pin | Working Power Supply Voltage: | 5V |
|---|---|---|---|
| Operating Temperature: | + 125 ° C | Minimum Operating Temperature: | -40 ° C |
| Working Power Supply Current: | 7 MA | Output Voltage: | 4.7V |
| Highlight: | 5V Pressure Sensor,Textile Equipment Pressure Sensor,700kpa Pressure Sensor |
||
Product Description:

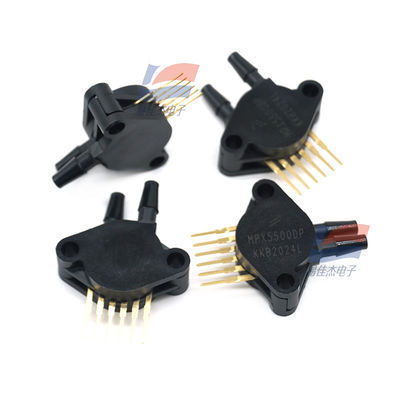

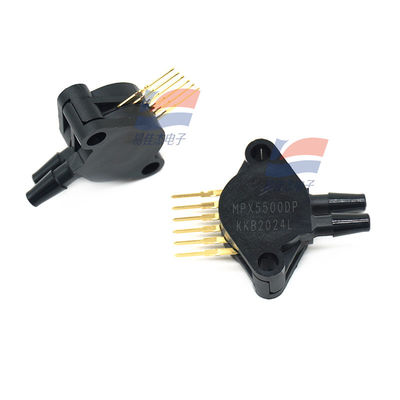

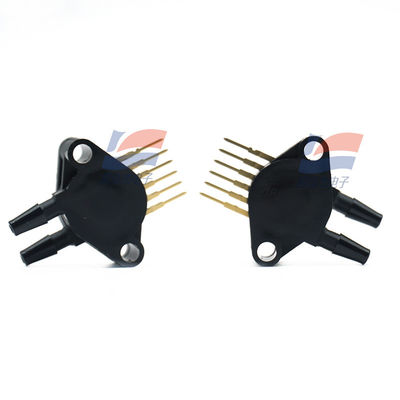

MPX5700DP Textile Equipment Differential Pressure Absolute Pressure 700kpa Analog 5V Pressure Sensor
Features:
MPX5700DP series piezoresistive sensor is an advanced single crystal silicon sensor. This sensor has A wide range of applications and is particularly suitable for those applications that adopt microcontrollers or microprocessors with A/D inputs. This patented unit sensor combines advanced micro-mechanical technology, thin-film metallization and bipolar processing to provide an accurate high-level analog output signal proportional to the applied pressure.
Characteristics
The error rate within the range of 0℃ to 85℃ is 2.5%
2. It is applicable to systems based on microprocessors or microcontrollers
3. Provide differential pressure and gauge pressure configurations
4. Patented silicon shear stress-strain gauge
5. Durable epoxy one-piece molded components
Brand: NXP/Freescale
Product type: Board computer interface pressure sensor
Working pressure: 102 psi(range 700Kpa)
Pressure type: Differential pressure
Accuracy: 2.5%
Installation style: Through Hole
Port type: No Ports
Packaging: Unibody 6-pin
Working power supply voltage: 5 V
Operating temperature: + 125 ° C
Minimum operating temperature: -40 ° C
Working power supply current: 7 mA
Output voltage: 4.7V
Packaging: Tray
Series: MPX5700
Packaging quantity: 125
Voltage: 5.25V
Voltage - Minimum: 4.75V
Weight: 1.865 g
Specifications:
| Working pressure | 102 psi(range 700Kpa) |
| Accuracy | 2.5% |
| Output type | Analog |
| Installation style | Through Hole |
